80 U2000 Series Operating and Service Guide

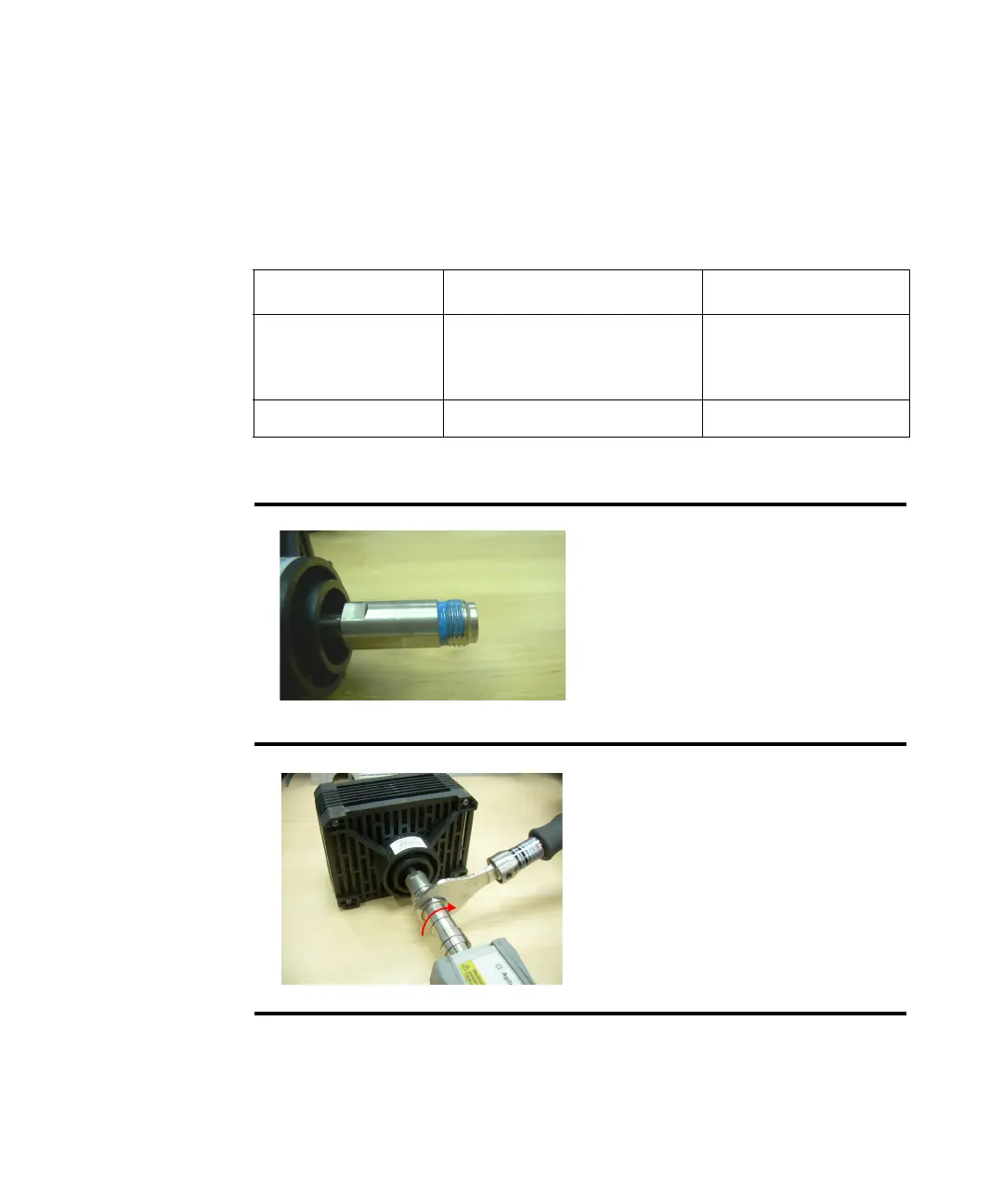

Reassembly Procedure

Tools required for reassembly:

Table 4-13 Attenuator Reassembly Procedure

Tools Purpose Torque value

Loctite

Threadlocker 242

To secure the connection

between the attenuator and the

sensor’s connector

N/A

¾” torque wrench To tighten the attenuator 12 lbs.in

1 Apply one drop of loctite on

the first, second, and third

threads of the connector.

2 Tighten the connector using the

torque wrench.
