2. Specifications
Grassland Mower

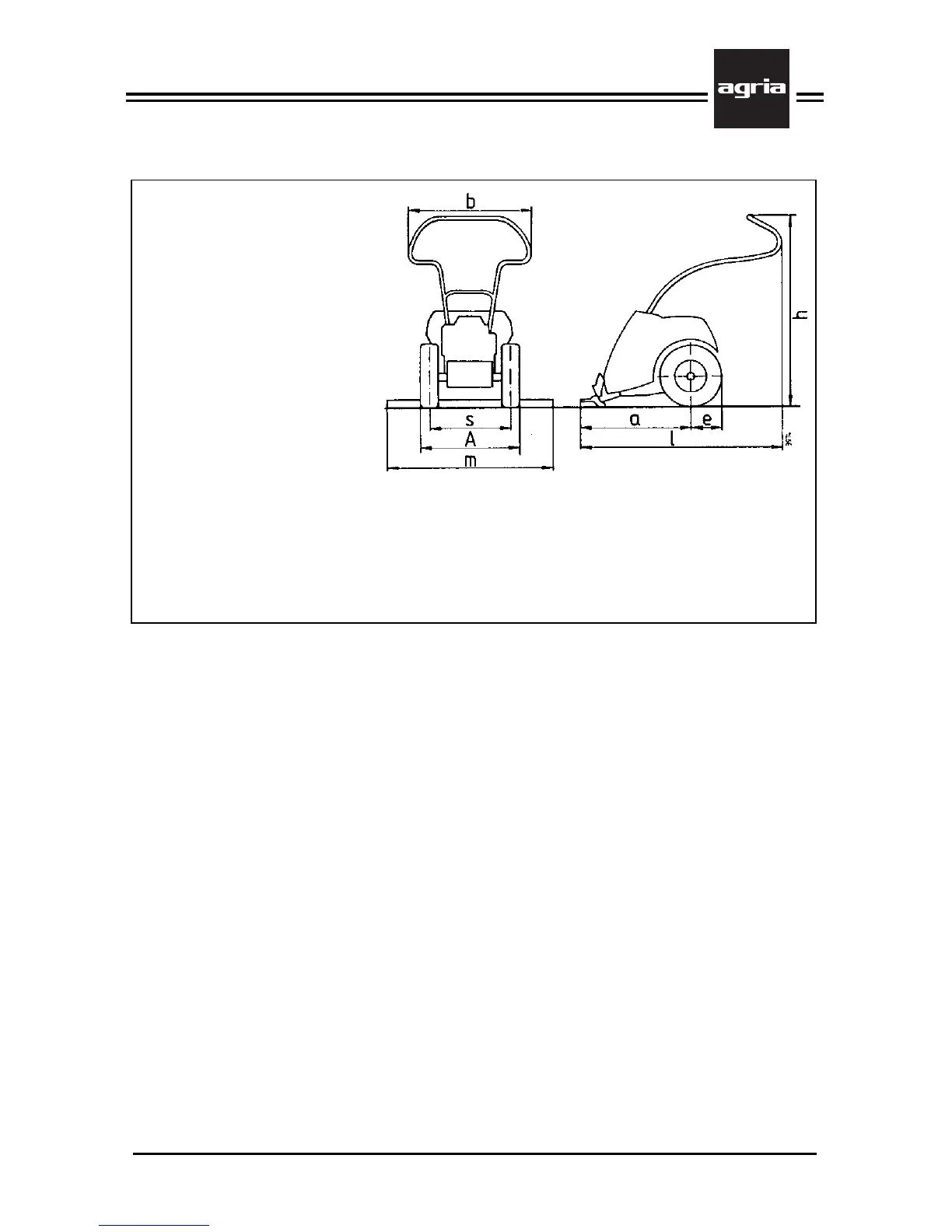

Machine Dimensions:
a ........................................ 600 mm
b ........................................ 480 mm
e ........................................ 180 mm
h ...................................... 1040 mm
l........................................ 1140 mm
m ............................ 710 or 910 mm
(depending on cutter bar version)
s ......................................... 430 mm
A ........................................ 525 mm
Tyres:.................... 3.50 - 6 (field tyre)
Tyre air pressure: ................... 0.8 bar
Transmission:...................Worm gear
with integrated conus clutch
and chain drive
Ground speed:
Forward .................................. 2.8km/h
Cutter bar drive: .. Central rocker arm
drive with V-belt clutch
Only use original AGRIA V-belts! (see
list of wear parts p37)
Reciprocating shaft speed..... 850 rpm
Stroke ...................................... 60 mm
Steering handle: Vibration dampened
Weight including cutter bar:
Compact 71 cm ...................... 47.5 kg
Comfort 91 cm ........................... 50 kg
Noise level:
In accordance with German 3rd Ordi-
nance on machine-safety law:
Noise level
at operator’s ear.................... 84 dB(A)
(in accordance with regulations of German
Agricultural Association)
Vibration acceleration value:
on handlebar grip:........ a
hwz
= 4.5 m/s
2
in accordance with ISO 5349 at 85% of rated
engine speed with tools at work
