Agria 5000 - Cutter Bar

Edition 02.97 Grassland Mower Hopper 5000 21

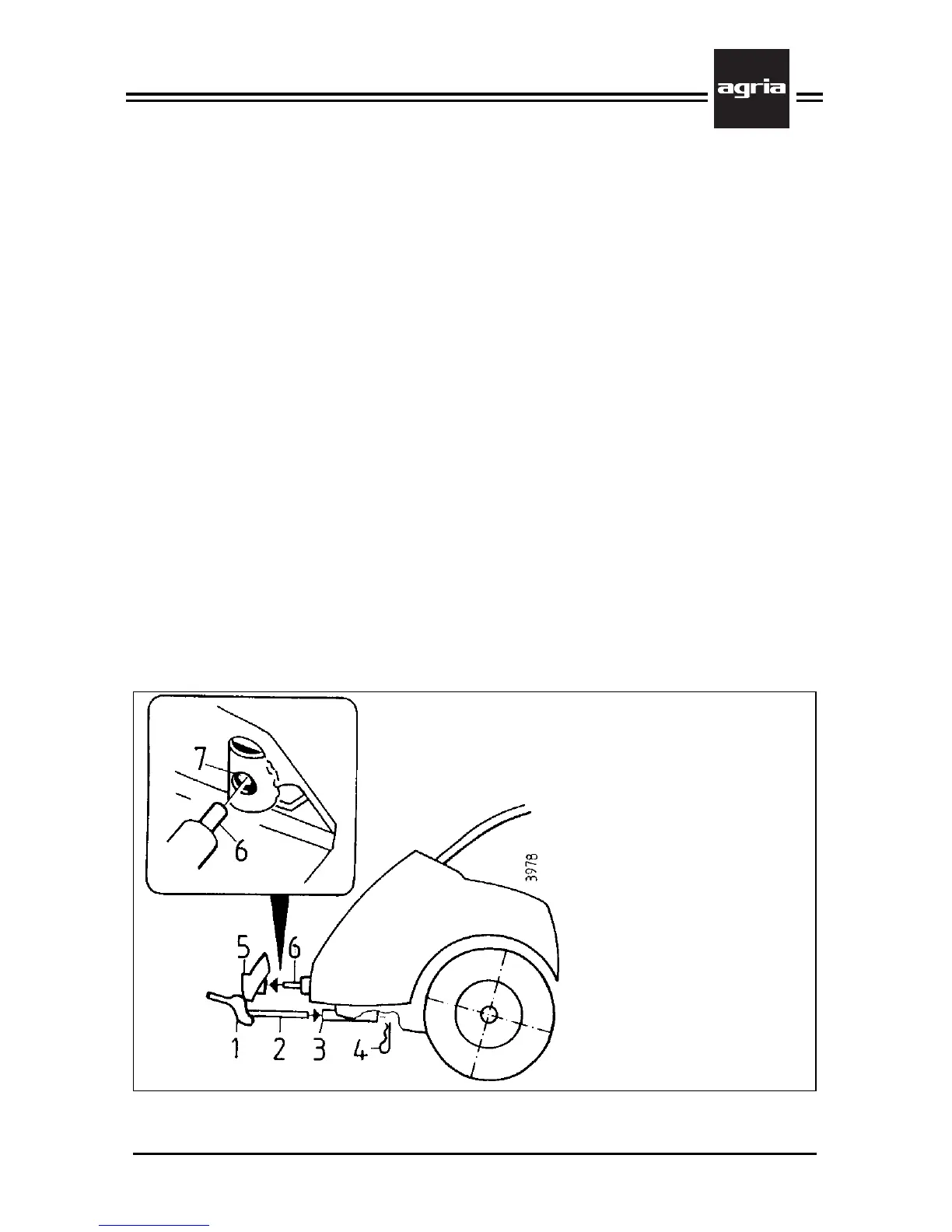

3. Devices and Operating Elements
1 Cutter bar
2 Carrier pin
3 Hole to accommodate the
cutter bar
4 R-clip
5 Knife driver
6 Driver pin
7 Driving stone
Attaching the Cutter Bar
The following cutter bars are available
for attachment to the basic machine:
Cutter bar Z............................... 71 cm
Cutter bar Z............................... 91 cm
W
When attaching/removing the
cutter bar to/from the ma-
chine fit the knife guard (A/13)
and wear safety gloves!
l Ensure the driving stone (7) is fitted
in the knife driver (5) and its hole is axi-
ally aligned with the knive driver's hole.
l Brush Bio-lubricating grease on the
driver pin (6) and the carrier pin (2).
l Insert the driver pin (6) in the hole in
the driving stone (7) and insert the car-
rier pin (2) in the hole (3) on the basic
machine.
l Lock the carrier pin with an R-clip (4).
To remove the cutter bar from the ba-
sic machine reverse the above order.
I
For knife adjustment and re-
placement see ”Maintenance”
p29.
