CHAPTER 12
70 71
MXm

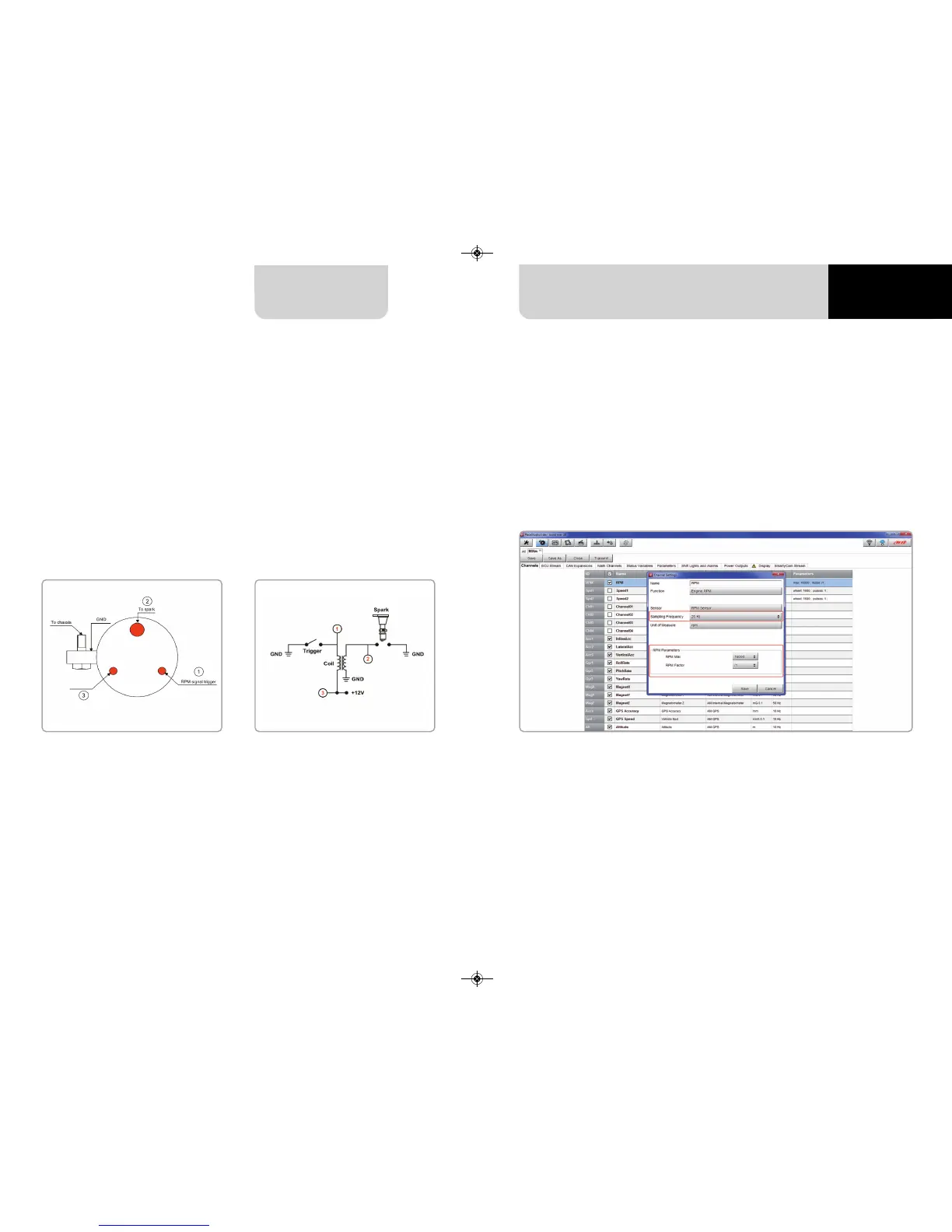

In case the vehicle ignition system has no output you need to connect MXm to the
low voltage of the coil as shown in the following images.
Point 1: low voltage of the coil
Point 2: connected to the spark plug
Point 3: connected to the +12V of the battery
Once MXm connected to RPM signal you can set its parameters in channels page of
Race Studio 3 as explained in “Channels configuration” paragraph.
