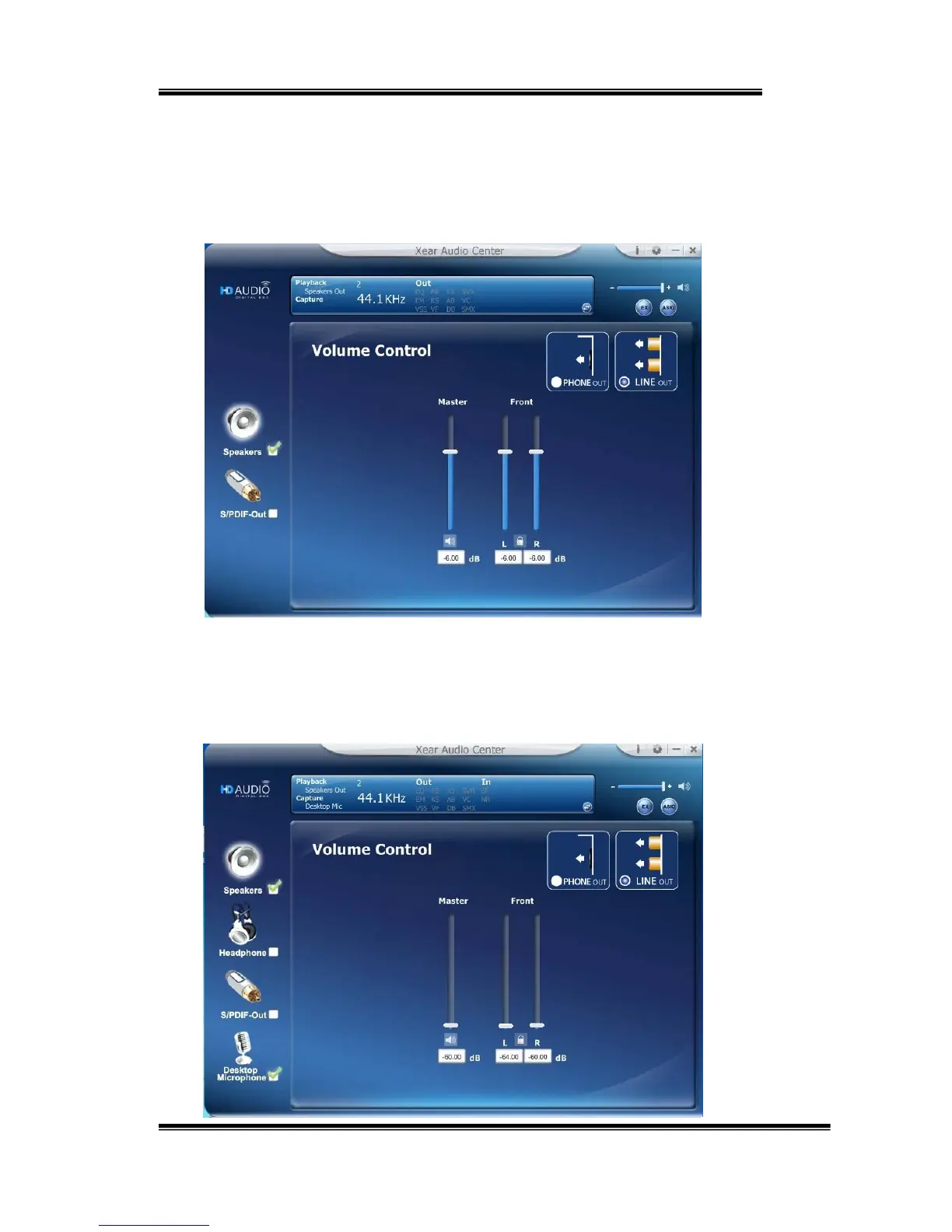

The“XearAudioCenter”willappearasthebelowdiagram.Pleasenotethe
LefticonmaynotshowonscreenifthedaughterboardorextensionHDA
(fromsystemcase)arenotconnected.

StereoMusicScenario(onlyinstalltheSC808mainboard)


StereoMusicwithMicrophoneInputScenario(installtheSC808mainboard
andconnecttheHDAudiocablefromsystemcase,partsofthesystemmay
notofferthisfeature)

