Aim SC808 - Page 17

HD Audio PCI-e V2.0
17
StereoMusicwithmulti‐channelOutputandMicrophoneInputScenario
(installtheSC808mainboardanddaughterboard,pleasusesbundledcables
toconnectthesetwoboards)

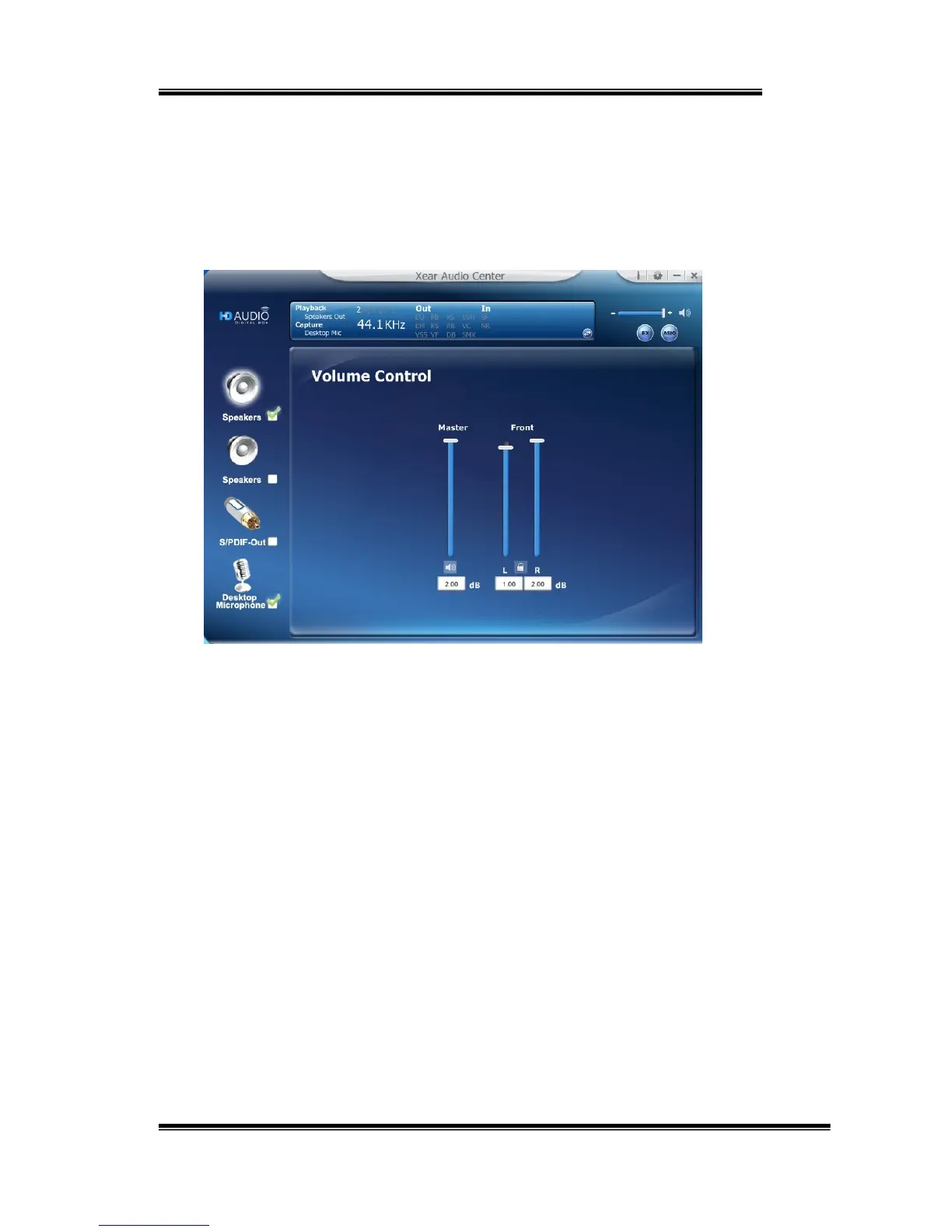

Note:TherearetwoSpeakersIconsintheleftmenu,thetoponeisfor
multi‐channelOutputconfiguration,andsecondoneisforStereoOutput
configuration.Thedetailsettingbetweentheseiconsisalsodifferent.


NOTE:Tosimpleyourreading,thismanualwillcombineStereoMusicand
Multi‐ChannelinoneSession.
