Settings and Adjustments
Configuring on the station
4
How to configure Relay Output Schedule
(Daily Schedule)
Configure the time to perform the relay output for each day. A schedule one year from the set day can be configured.
12 schedules can be set for each day.
Refer to “Configuring settings (→page 74)” for information on how to display the setting screens.

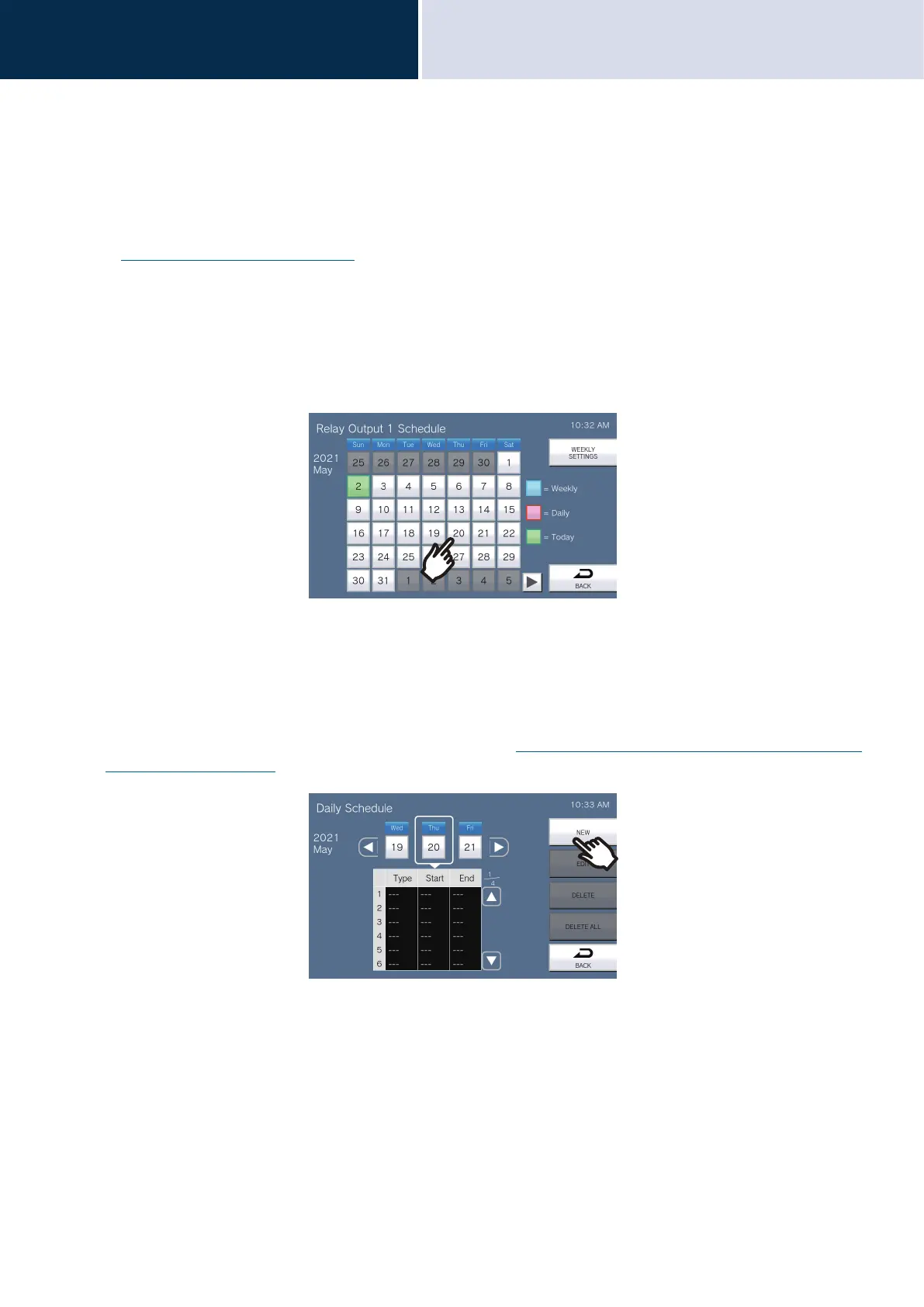

1. On the Relay Output Settings screen, tap [Relay Output 1 Schedule] or [Relay Output 2
Schedule].
• The Relay Output Schedule screen will be shown. It may take some time for the schedule to be displayed.
2. Tap the day to set a schedule.
• The Daily Schedule screen will be shown for the day that was tapped.
3. Tap [NEW].
* To change a registered schedule, tap the row to change, and tap [EDIT].
* To delete a registered schedule, tap the row to delete, and then tap [DELETE].
* To delete all daily schedules for the displayed day, tap [DELETE ALL].
* Change or delete "Weekly" type schedules as described in “How to configure Relay Output Schedule (Weekly
Schedule) (→page 110)”.
• The Set Schedule screen will be shown.
To Next Page
