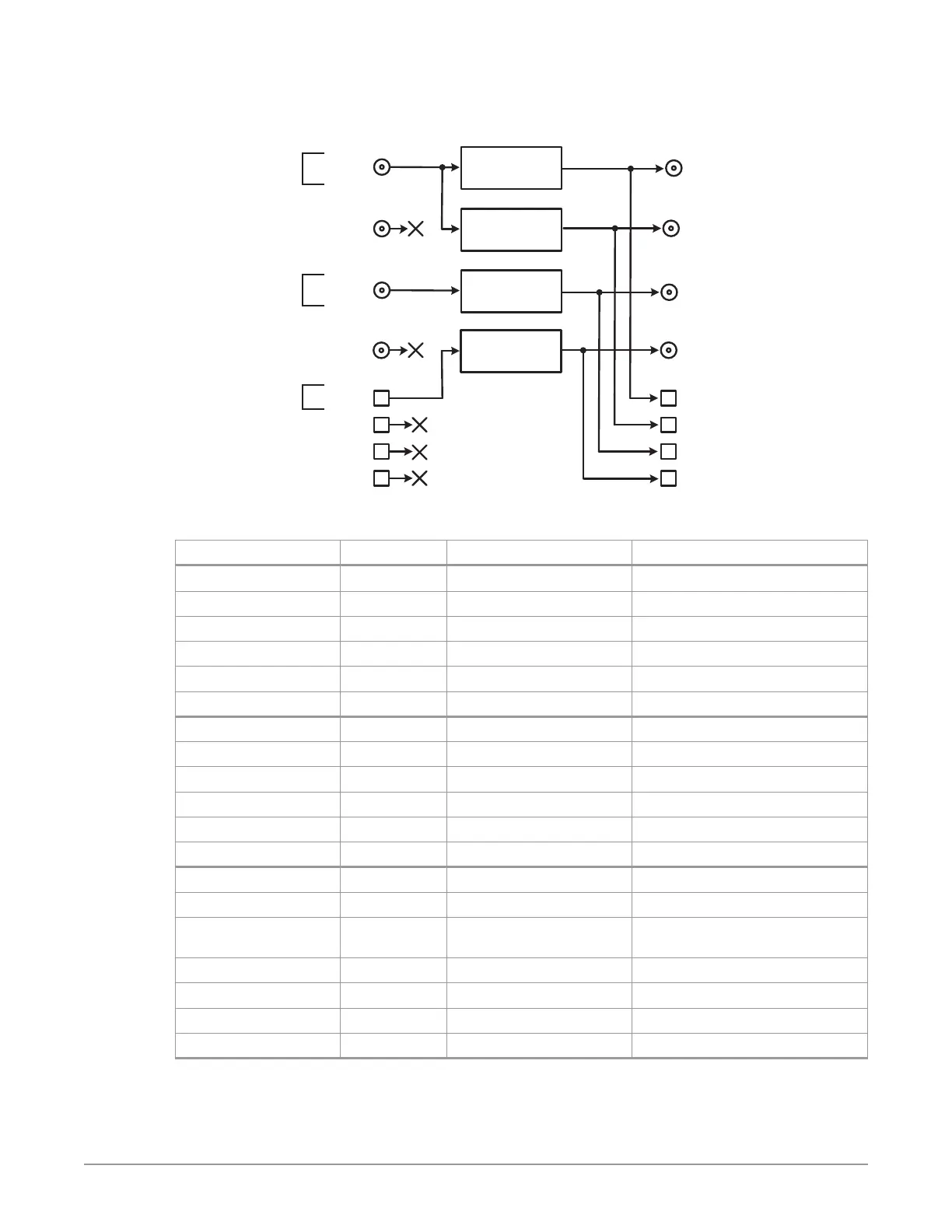

Figure 26. Four Channel Mode Example, Four Conversions of Three Sources
SDI Out 7 SFP
SDI Out 8 SFP
SDI Out 5 SFP
SDI Out 6 SFP
SDI Out 4 BNC
Converted Source C
1280x720p 59.94 HLG
SDI Out 1 BNC
Converted Source A
1920x1080p 59.94 HLG
SDI Out 2 BNC
Converted Source A
1920x1080i 59.94 (SDR)
SDI Out 3 BNC
Converted Source B
1280x720p 59.94 HLG
HD/SD
Video Processor with
Colorfront Engine
HD/SD
Video Processor with
Colorfront Engine
SDI In 1 BNC
SDI In 4 BNC
SDI In 5 SFP
SDI In 6 SFP
SDI In 7 SFP
SDI In 8 SFP
Source A
1920x1080p
59.94 PQ
One copy of each
converted signal
on each SFP output
(requires optional
SFP modules)
Simultaneous HDR and SDR Distribution
Four Channel Mode
HD/SD
Video Processor with
Colorfront Engine
SDI In 2 BNC
HD/SD
Video Processor with
Colorfront Engine
SDI In 3 BNC
Source B
525i (SDR)
Source C
1920x1080i
59.94 (SDR)
(requires optional
SFP module)
Table 5. Menu Settings for Four Conversions of Three Sources
Channel Select Button Video Button Menu Name Setting
VID1 INPUT 1 Input SDI1
VID1 INPUT 2.1 Dynamic Range&Gamut PQ BT.2020 1000 Nits
VID1 FORMAT 1 Output Format 1080p5994
VID1 FORMAT 2.1 Dynamic Range&Gamut Hybrid Log Gamma BT.2100
VID1 FORMAT 3.0 Link Cfg SDI1 Sngl Link LvlA
VID1 FORMAT 4.0 Link Cfg SDI5 Sngl Link LvlA
VID2 INPUT 1 Input SDI1
VID2 INPUT 2.1 Dynamic Range&Gamut PQ BT.2020 1000 Nits
VID2 FORMAT 1 Output Format 1080i5994
VID2 FORMAT 2.1 Dynamic Range&Gamut SDR BT.709 100 Nits
VID2 FORMAT 3.0 Link Cfg SDI2 Sngl Link LvlA
VID2 FORMAT 4.0 Link Cfg SDI6 Sngl Link LvlA
VID3 INPUT 1 Input SDI3
VID3 INPUT 2.1 Dynamic Range&Gamut SDR BT.709 100 Nits
VID3 INPUT 2.2 SDR Highlights If necessary, select best image from:
Standard (default), Soft 1-3, Bright
VID3 FORMAT 1 Output Format 720p5994
VID3 FORMAT 2.1 Dynamic Range&Gamut Hybrid Log Gamma BT.2100
VID3 FORMAT 3.0 Link Cfg SDI3 Sngl Link LvlA
VID3 FORMAT 4.0 Link Cfg SDI7 Sngl Link LvlA
