FS1 Installation and Operation Manual — Connecting to a Network
Networking the
FS1 using a Static
IP Address
To set a static IP address for the FS1’s IP address, you’ll need to make some simple
Parameter Menu selections. The illustration below shows the four menu selections you
need to make while entering the information provided to you by your IT administrator.

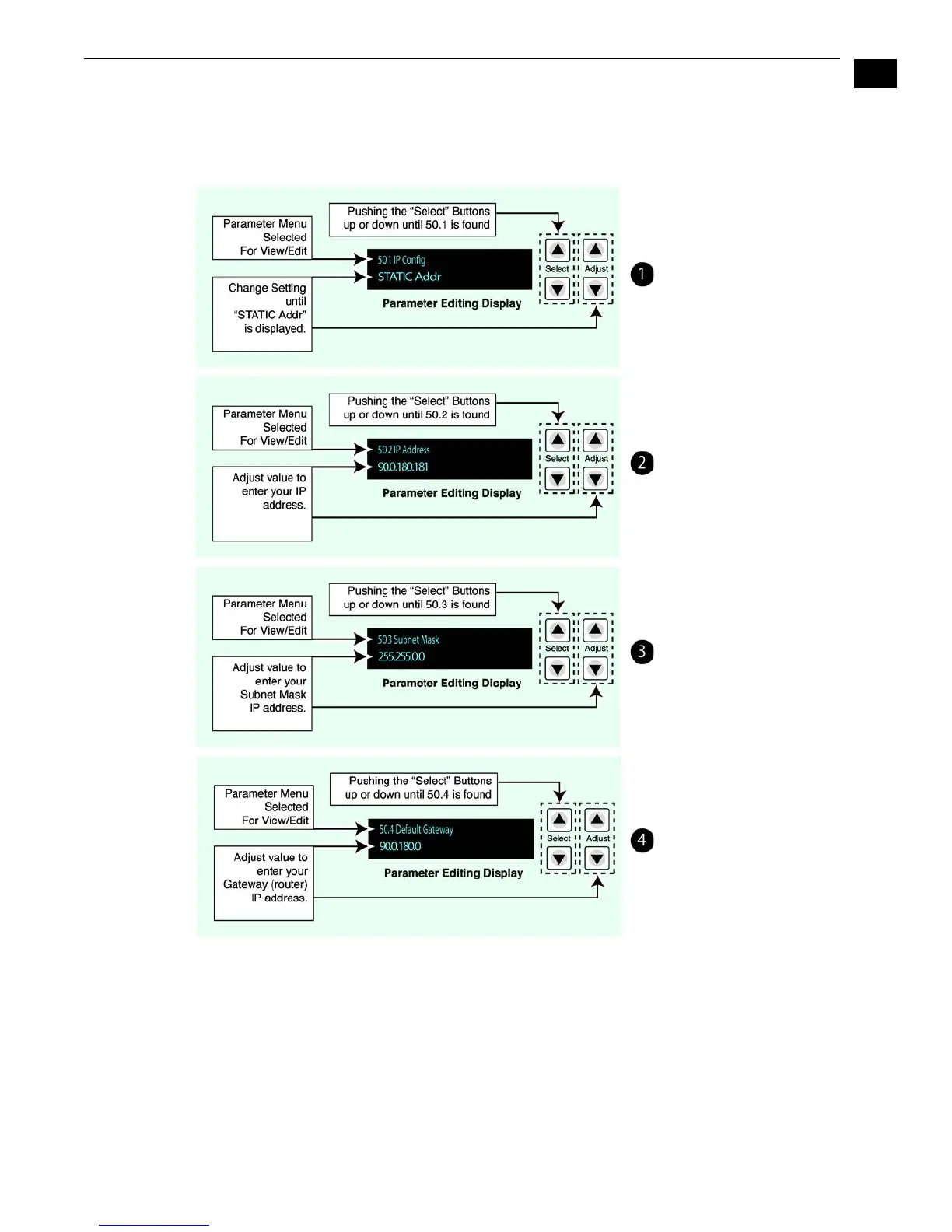

Configuring the FS1 with a Static IP Address
Note: for parameters 50.2,
50.3, and 50.4, you will be
setting IP addresses that
consist of “octets” separated
by a period (i.e., 90.0.180.0).
For these parameters, the
Select button selects the
octet and then the Adjust
buttons select the desired
number. Pressing Select
again advances to the next
octet. At the final octet, the
address will flash—pressing
Select at that point confirms
the setting.
