Appendix C:
Analog Audio Connector Pinout
C
Analog Audio Connections

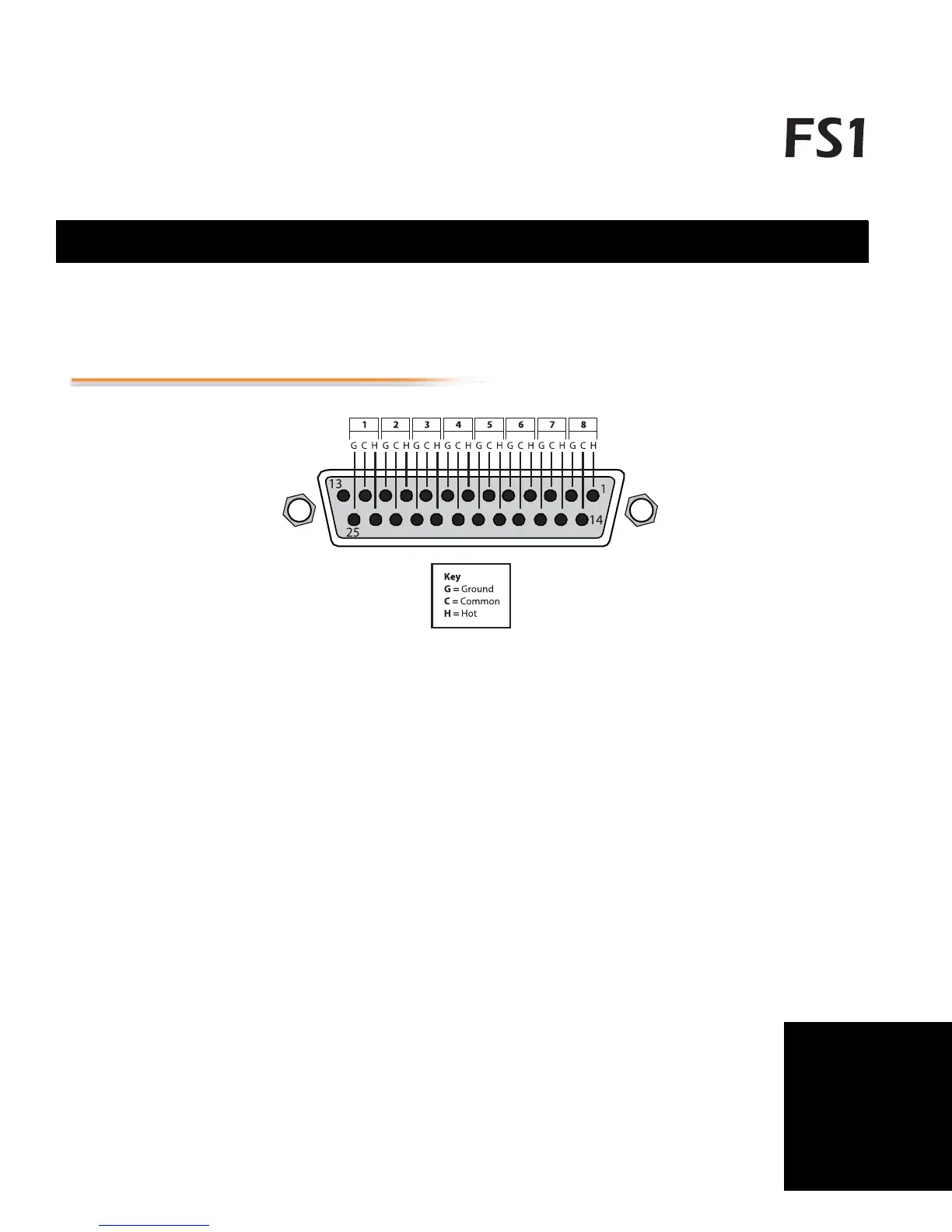

Connector Pinout
The two DB25 connectors on the FS1 rear panel support a TASCAM-style cable snake
for balanced 8-channel analog audio. The pinout is the same for both input and
output connectors, each following the TASCAM DB-25 standard shown in the
drawing above.
