Installation process:
1. De-energize the cable to which WallSwitch will be connected.

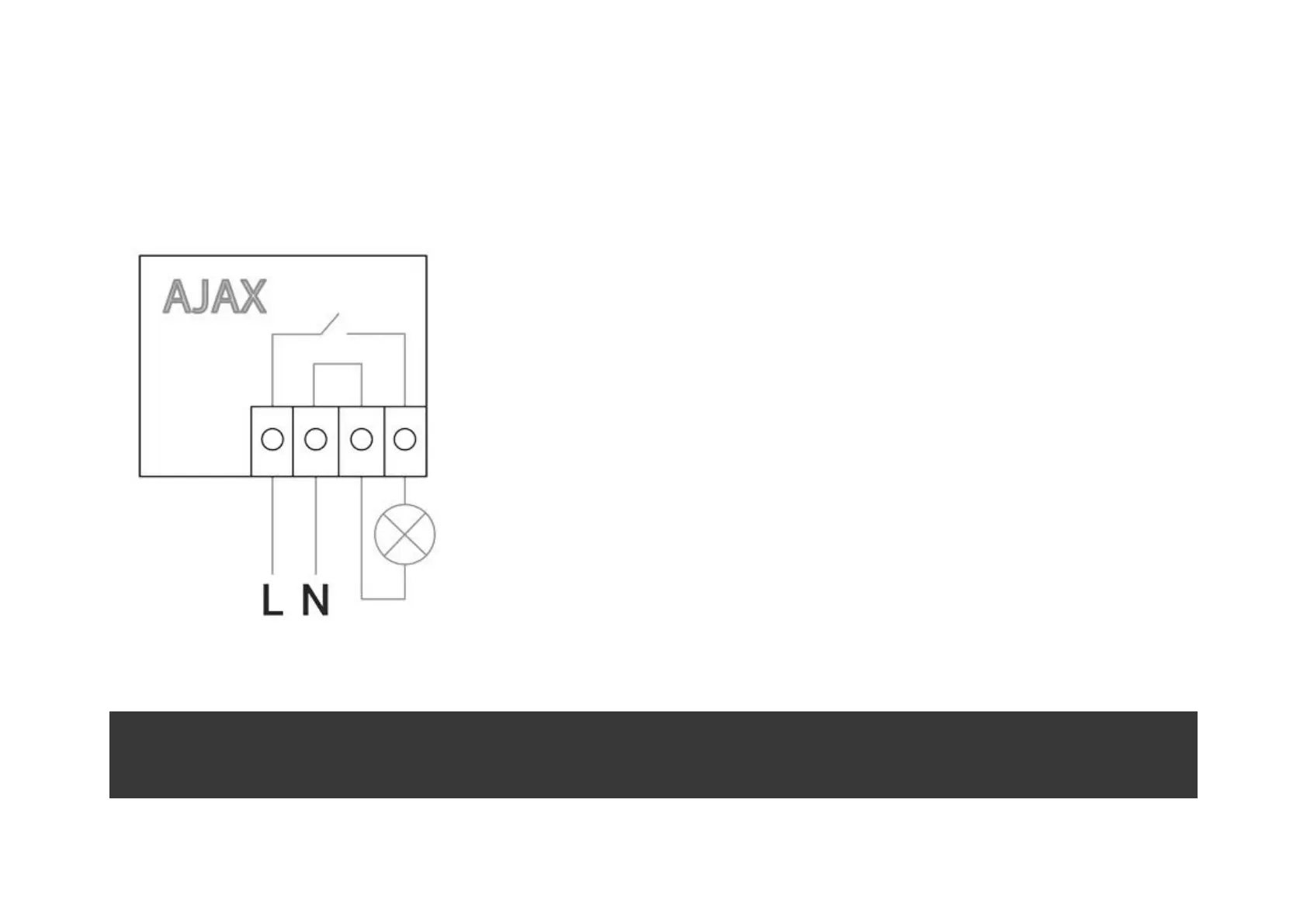

2. Connect the cable of the power system of the room to the WallSwitch terminals according to the following scheme:
3. Connect a socket to the WallSwitch using bundled connecting wires or an electrical appliance using a cable with the
sufficient cross-section. It’s recommended to use cables with cross-section of 1.5 – 2 mm
2
.
Do not connect more than 3 kW load to the WallSwitch. When connecting the load, strictly observe the connection diagram since an incorrect
connection may cause the device to malfunction and/or damage the property.
