To replace the headlights lamps ensure the key in the ignition switch is in the OFF position or
LOCK position.

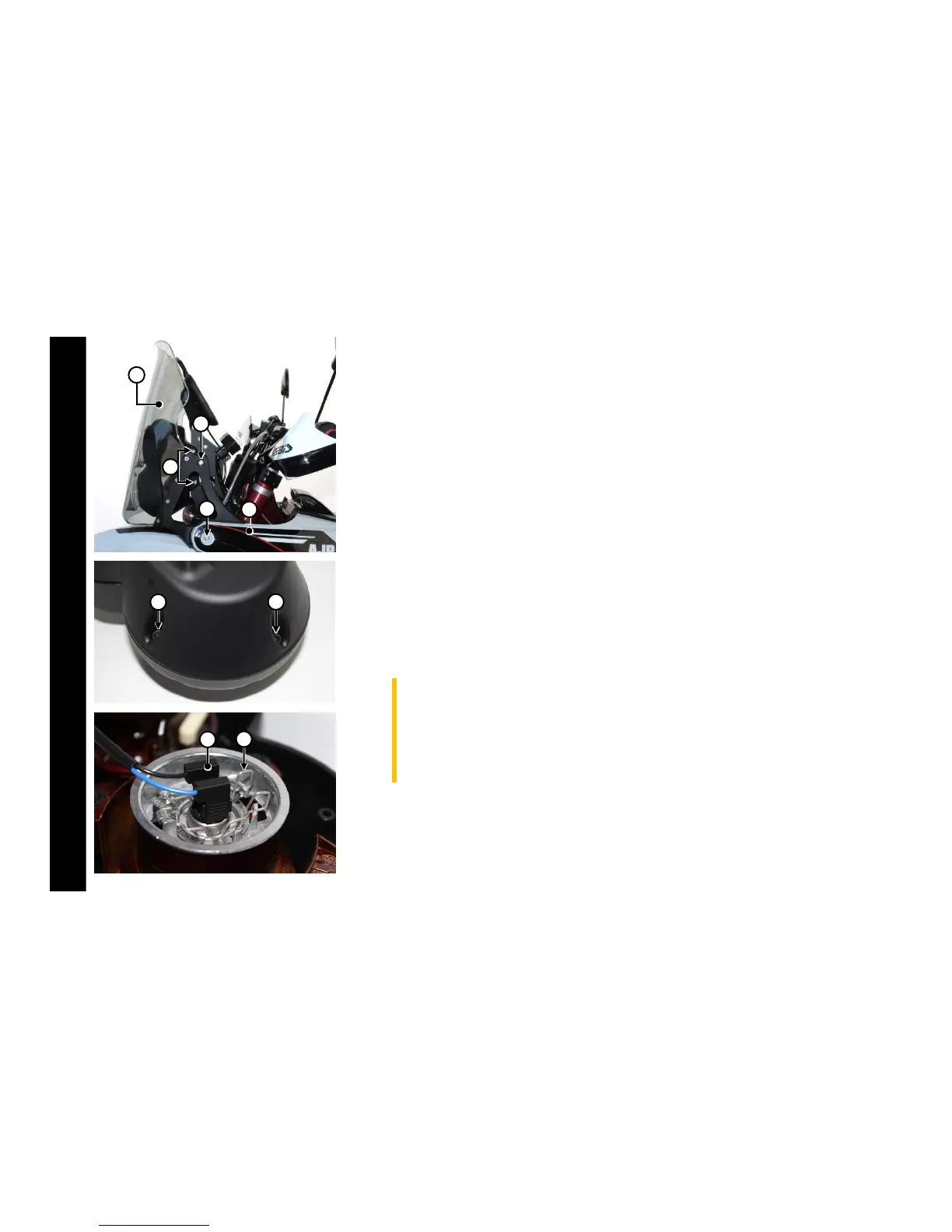

― Remove the bolt (2) e (4);
― Loosen the screw (5) located behind the fairings;
― Remove the windshield (1);
― Disconnect the connectors behind headlight group;
― Unscrew the two fixation screws (3) and remove the headlight group;
― Place the headlight group with the lights pointing down and loose the six self-tapping
screws (6);
― Remove the headlight cover and then release electrical terminals (7);
― Press the retention spring ends (8) and remove it.
The headlight lamp should be released. Replace with the new one.
In order to assembly, reverse the previous procedure.
Do not replace H7 headlight lamp for another model or with different power that
the one specified to AJP PR7 model.
Do not touch lamp glass, otherwise some substances can cause overheating and
lamp lifetime reduction. In that case, clean with alcohol and let it dry.
