Akai AA-R22/L User Manual

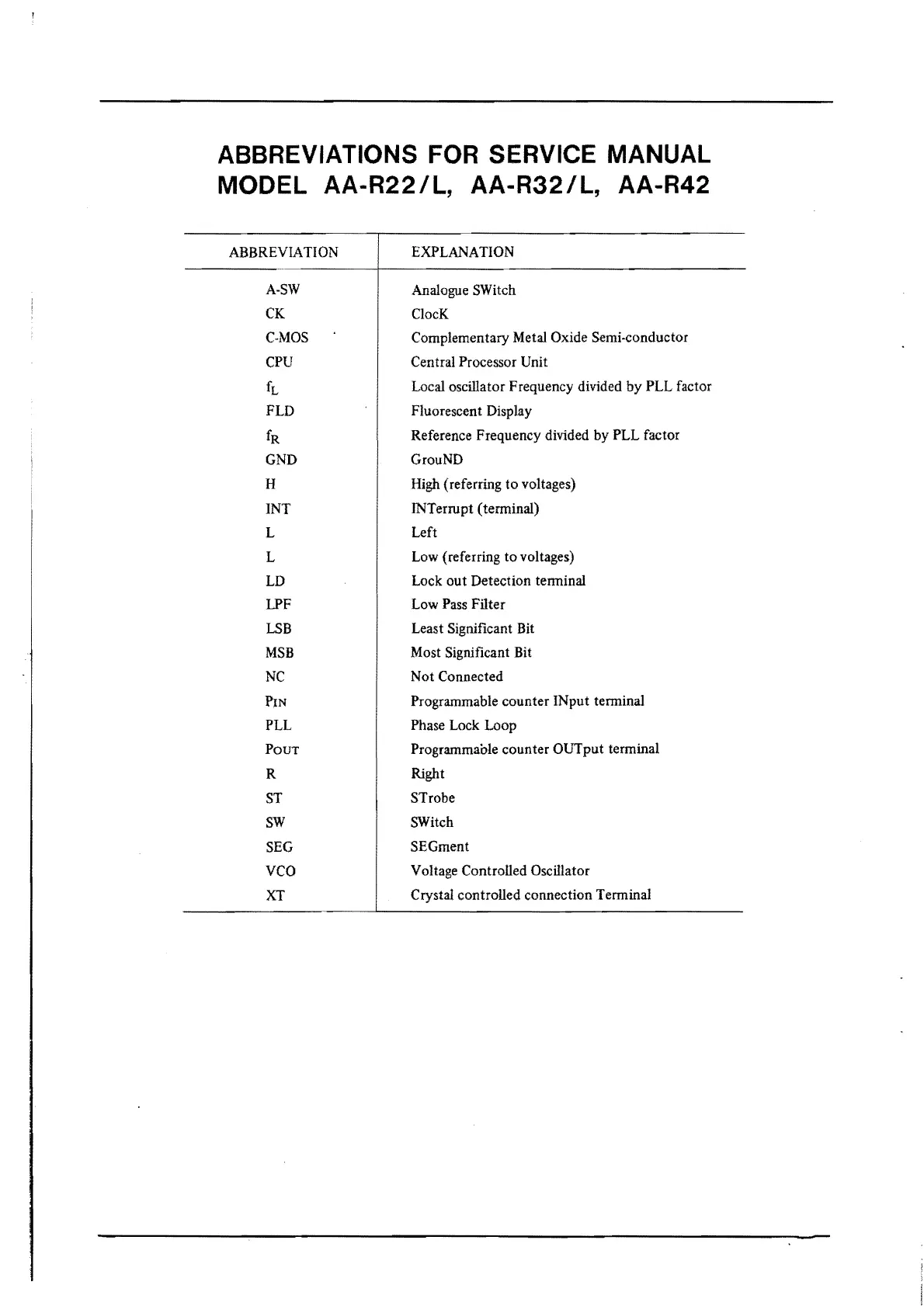

ABBREVIATIONS FOR SERVICE MANUAL
MODEL
AA-R22/L, AA-R32/L, AA-R42
ABBREVIATION
A-SW
CK
C-MOS
CPU
fL
FLO
fR
GND
H
INT
L
L
LD
LPF
LSB
MSB
NC
PIN
PLL
POUT
R
ST
SW
SEG
vco
XT
EXPLANATION
Analogue SWitch
ClocK
Complementary Metal Oxide Semi-conductor
Central Processor Unit
Local oscillator Frequency divided
by PLL factor
Fluorescent Display
Reference Frequency divided by PLL factor
GrouND
High (referring
to voltages)
INTerrupt (terminal)
Left
Low (referring
to voltages)
Lock
out Detection terminal
Low Pass Filter
Least Significant Bit
Most Significant Bit
Not Connected
Programmable
counter INput terminal
Phase Lock
Loop
Programmaole counter OUTput terminal
Right
STrobe
SWitch
SEGment
Voltage Controlled Oscillator
Crystal controlled connection Terminal

Akai AA-R22/L Specifications

General

Brand	Akai
Model	AA-R22/L
Category	Stereo Receiver
Language	English
