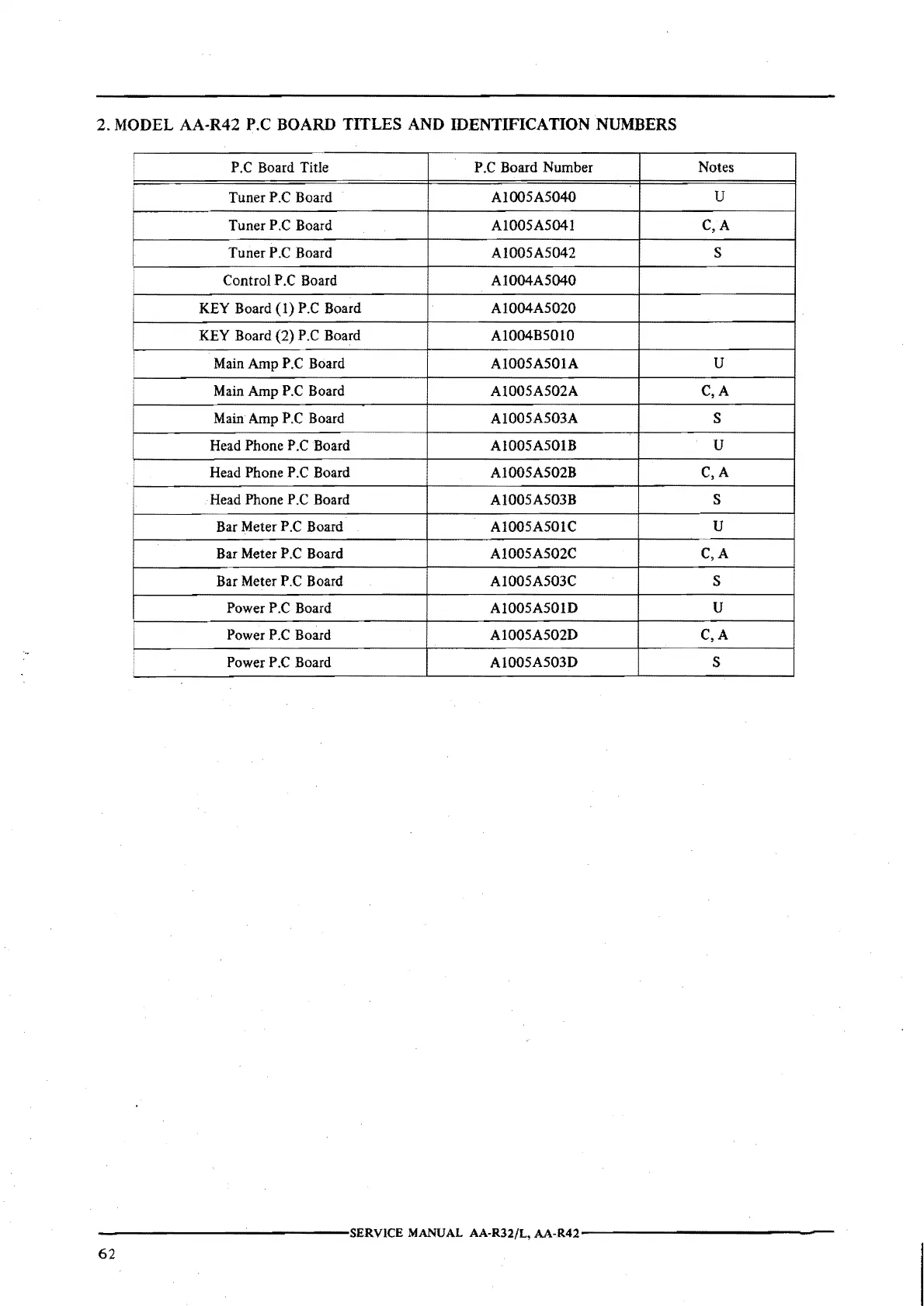

2. MODEL AA-R42 P.C BOARD TITLES AND IDENTIFICATION NUMBERS
!
P.C Board Title P.C Board Number Notes
Tuner P.C Board
AI005A5040
u
Tuner P.C Board A1005A5041 C,A
Tuner P .C Board Al005A5042 s
Control P.C Board Al004A5040
KEY Board (I) P.C Board A1004A5020
KEY Board (2) P.C Board Al004B5010
Main Amp P.C Board Al005A501A u
Main Amp P.C Board
Al005A502A
C,A
Main Amp P.C Board Al005A503A s
Head Phone P.C Board
AIOOSASOIB
u
Head Phone P.C Board A1005A502B
C,A
Head Phone P.C Board
Al005A503B
s
Bar Meter P.C Board Al005A501C u
Bar Meter P.C Board
A1005A502C
C,A
Bar Meter P.C Board A1005A503C s
Power P.C Board A1005A501D u
i
Power P.C Board A1005A502D
C,A
Power P.C Board A1005A503D s
-------------SERVICE MANUAL AA-R32/L, AA-R42-------------
