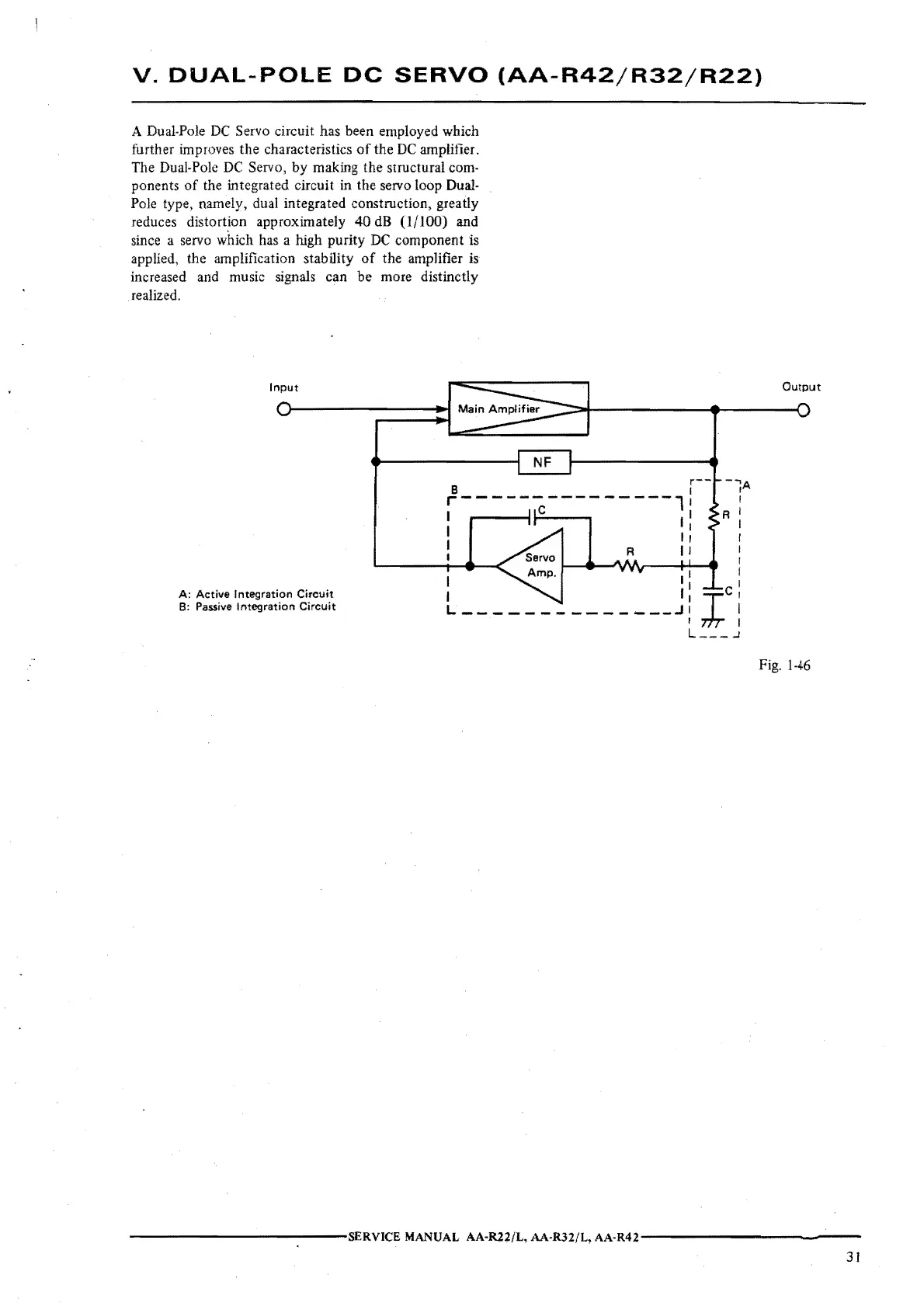

V. DUAL-POLE DC SERVO (AA-R42/R32/R22)
A Dual-Pole DC Servo circuit has been employed which
further improves the characteristics
of the DC amplifier.
The Dual-Pole
DC Servo, by making the structural com-
ponents
of the integrated circuit in the servo loop Dual-
Pole type, namely, dual integrated construction, greatly
reduces distortion approximately
40 dB (1/100) and
since a servo
which has a high purity DC component is
applied, the amplification stability
of the amplifier is
increased and music signals can be more distinctly
realized.
Input
NF
-7A
I
R I
I
I
I
I
1' I
A: Active Integration Circuit
B: Passive Integration Circuit
I I
L ______________ J: le:
I I
L -- - -1
Output
Fig. 1-46
