IV. PRINCIPAL PARTS LOCATION
1. MODEL AA-R32/L
POWER SWITCH
S I
KEY BOARD( I l PCS
AI004A5020
SUBSONIC
SWl-2
LI
MOOE
PHONES JACK
JI
POWER TRANS
(U) AA-R32T-70
(Cl AA-R32T-30
(A)
AA-R32T-20
(El AA- R32T-40
(B,S) AA- R32T-50
MAIN AMP PCB
(Ul Al004A505A
C.AJ Al004A506A
(S.E,B!AJ004A507A
R:>WER PCB
(U) Al004A5050
(C,Al A1004A5060
(S, E ,B lAI004A5070
SPEAKER
SELECTM
SW2
SWl-1
KEY SOARD (I) PCB
AI004A5020
FLO
INOI Z· 1362

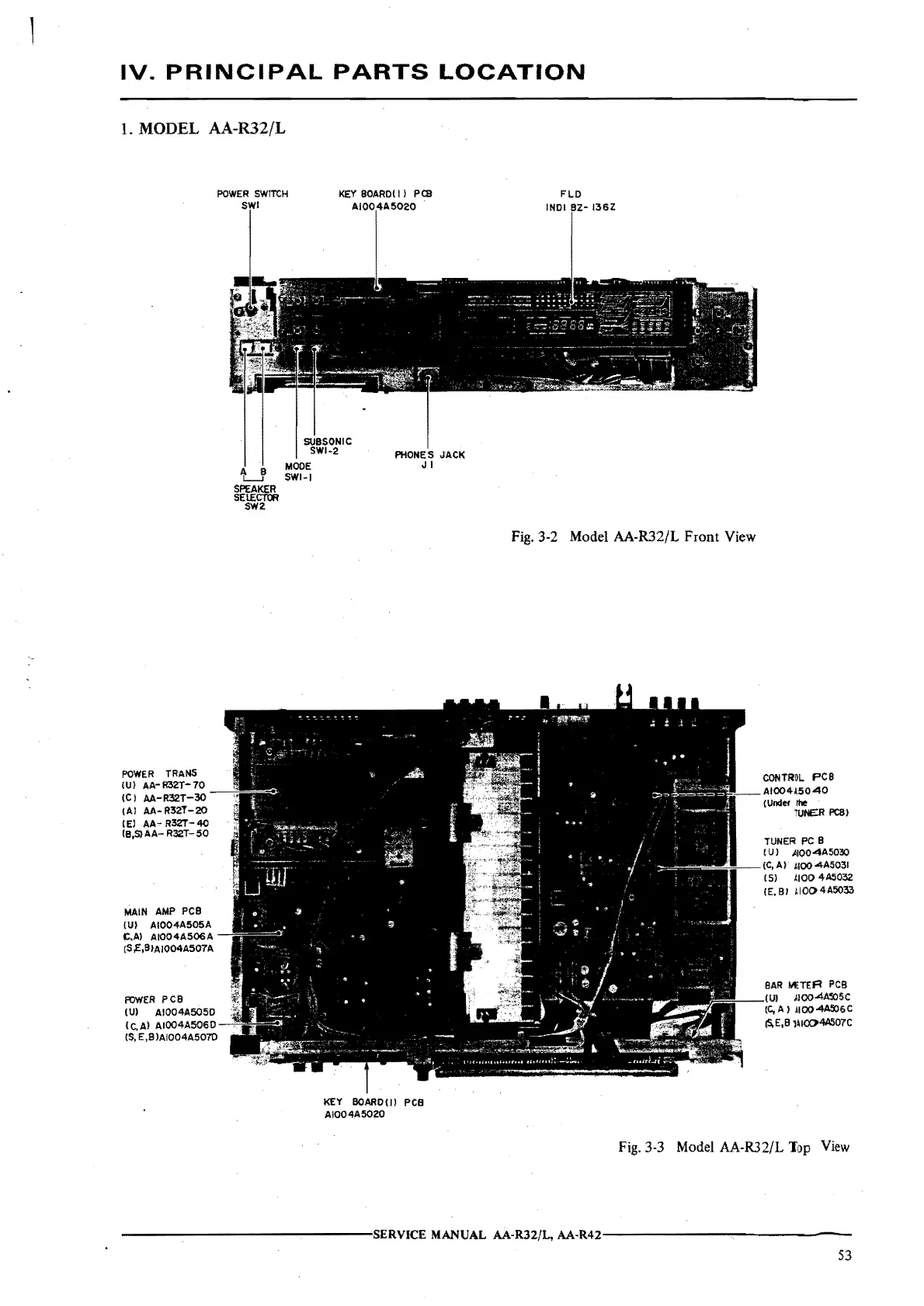

Fig. 3-2 Model AA-R32/L Front View
CONTROL PCB
__ Al00415040
(Under the
iUNER PCB)
TUNER PCB
!UJ AJ004A50::l0
{C, A) AI004A5031
(SJ AIOO 4A5032
IE.Bl ll0()4A5033
BAR METE~ PCS
{UJ AJ00-4A5:>5C
(C, Al ll00-4A!:'06C
(S,E,B 1AI004A507C
Fig. 3-3 Model AA-R32/L Top View
