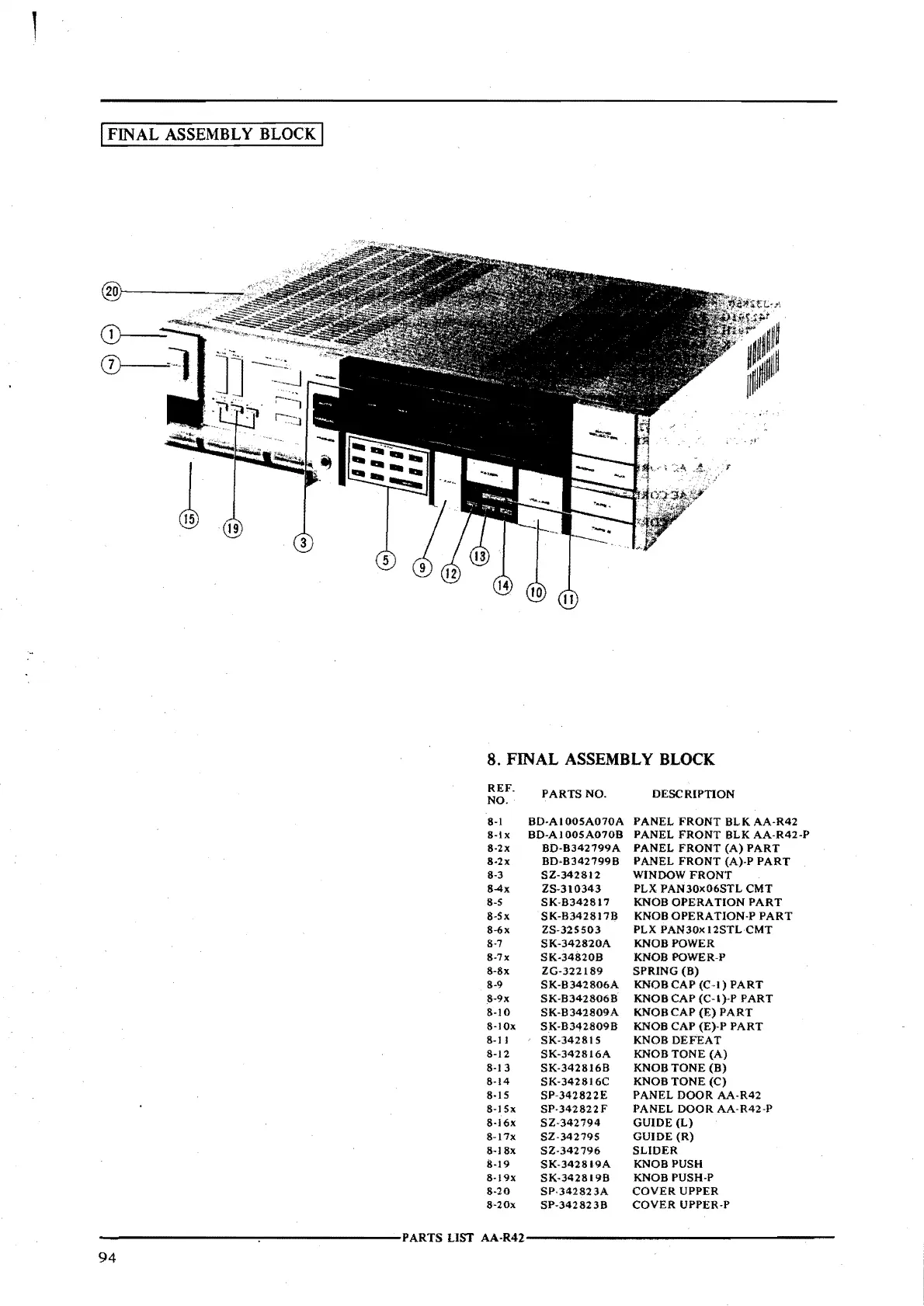

I FINAL ASSEMBL y BLOCK I
8. FINAL ASSEMBLY BLOCK
REF.
PARTS NO. DESCRIPTION
NO.
8-1
BD·A I 00SA070A PANEL FRONT BLK AA-R42
8-lx BO-Al 00SA070B PANEL FRONT BLK AA-R42-P
8-2x BD-B342799A PANEL FRONT (A) PART
8•2x
BD•B342799B
PANEL FRONT (A)-P PART
8-3 SZ-342812
WINDOW FRONT
84x ZS-310343 PLX PAN30x06STL CMT
8-S SK-8342817
KNOB OPERATION PART
8-Sx SK-B342817B KNOB OPERATION-P PART
8-6x ZS-325503 PLX PAN30x12STLCMT
8-7
SK-342820A KNOB POWER
8-7x
SK-348208 KNOB POWER-P
8-8x
ZG-322189 SPRING (B)
8-9
SK-B342806A KNOB CAP (C-1) PART
8-9x SK-8342806B
KNOBCAP(C-l)·P PART
8-10 SK-B342809A KNOB CAP (E) PART
8-I0x
SK-B342809B
KNOB CAP (E)-P PART
8-1 l
SK-342815
KNOB DEFEAT
8-12
SK-342816A KNOB TONE (A)
8-13
SK-342816B
KNOB TONE (B)
8-14
SK-342816C KNOB TONE (C)
8-15
SP-342822E PANEL DOOR AA-R42
8-l Sx
SP-342822F PANEL DOOR AA-R42-P
8-l6x SZ-342794 GUIDE (L)
8-17x
SZ-34279S GUIDE (R)
8-18x SZ-342796 SLIDER
8-19
SK-342819A KNOB PUSH
8-19x
SK-342819B
KNOB PUSH-P
8-20
SP-342823A
COVER UPPER
8-20x
SP-342823B COVER UPPER-P
PARTS LIST AA-R42
