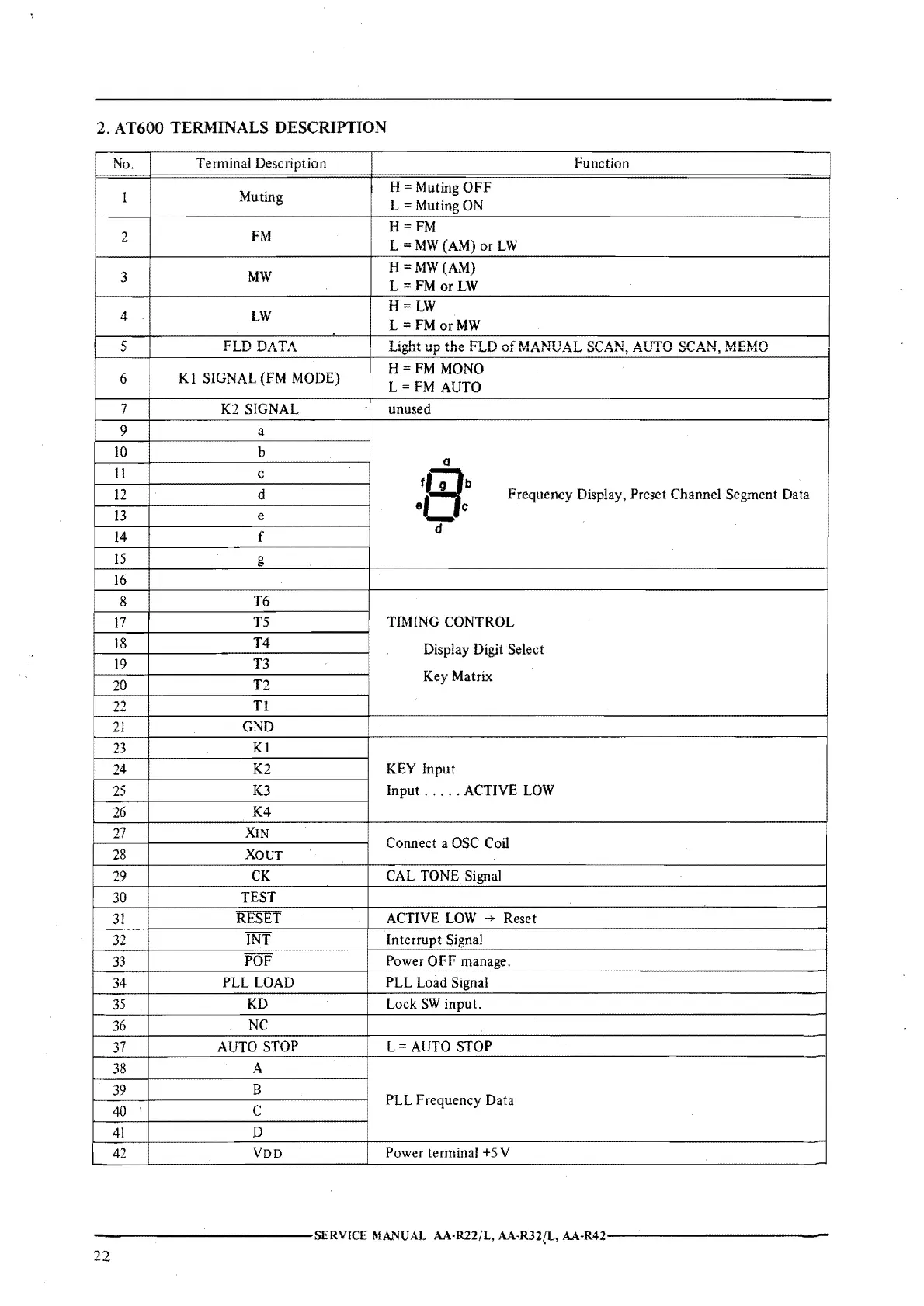

2. AT600 TERMINALS DESCRIPTION
No.
Terminal Description
Function
I
Muting
H = Muting OFF
L
= Muting ON
2
FM
H=FM
L = MW (AM) or LW
3
MW
H=MW(AM)
L=FMorLW
4
LW
H=LW
L = FM or MW
5 FLD Dl..,Tl' ..
T inh+ un +ho RT l"'I nfUAll.lTTAT <.7f'All.l ATITf"\ <.7f'All.l Ul'.:Uf"\
.....,,.o'-"'" WJ:-' ......... ,., .. ....,....., V.l H'I~.l .. Vrl,,J...,, UVJ,.l. .. , £"1.V.l.'-1' uvr1.1.--., J.!'J.L.,H.1.'-..1'
6
Kl SIGNAL (FM MODE)
H=FM MONO
L FM AUTO
7 K2 SIGNAL unused
9 a
10 b
(1
11
C
·B·
12 d
ef C
Frequency Display, Preset Channel Segment Data
13
e
-
14 f
d
15
g
16
8
T6
17
TS TIMING CONTROL
18
T4
Display Digit Select
19
T3
20
T2
Key Matrix
22
TI
21
GND
:
23
Kl
24
K2 KEY Input
25 K3
Input ..... ACTIVE LOW
26
K4
27
XIN
Connect a OSC Coil
28 XOUT
29
CK
CAL TONE Signal
30
TEST
31
RESET
ACTIVE
LOW ➔ Reset
32
INT Interrupt Signal
33
POF Power OFF manage.
34
PLL LOAD
PLL Load Signal
35
KD
Lock SW input.
36
NC
37
AUTO STOP
L= AUTO STOP
38
A
39
B
PLL Frequency Data
40
C
41
D
42
VDD
Power terminal +5 V
