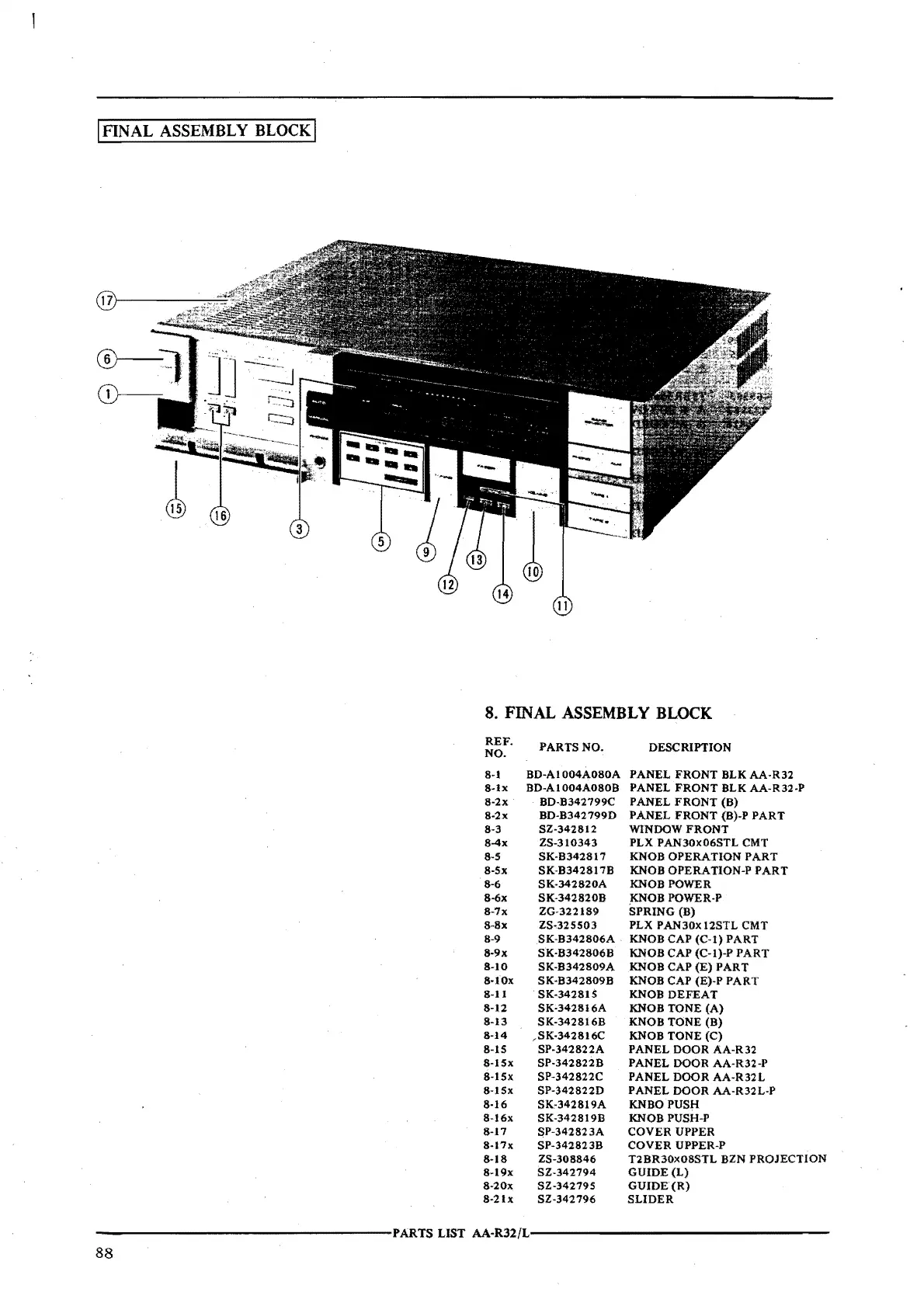

I FINAL ASSEMBLY BLOCK I
8. FINAL ASSEMBLY BLOCK
REF.
NO.
8-1
8-lx
8-2x
8•2X
8-3
8-4x
8-S
8-Sx
8-6
8-6x
8-7x
8-Sx
8-9
8-9x
8-10
8-l0x
8·11
8-12
8-13
8-14
8-15
8-15x
8-15x
8-15x
8-16
8-l6x
8-17
8-l7x
8-18
8-19x
8-20x
8-2tx
PARTS NO.
BO-Al
004A080A
BD-AI 004A080B
BD-B342799C
BD-B342799D
SZ-342812
ZS-310343
SK-B342817
SK-B342817B
SK-342820A
SK-342820B
ZG-322189
ZS-325503
SK-B342806A
SK-B342806B
SK-B342809A
SK-B342809B
SK-342815
SK-342816A
SK-342816B
.SK-342816C
SP-342822A
SP-342822B
SP-342822C
SP-342822D
SK.342819A
SK-342819B
SP-342823A
SP-342823B
ZS-308846
SZ-342794
SZ-342795
SZ-342796
DESCRIPTION
PANEL
FRONT BLK AA-R32
PANEL
FRONT BLK AA-R32·P
PANEL
FRONT (B)
PANEL
FRONT (B)-P PART
WINDOW FRONT
PLX PANJ0x06STL CMT
KNOB
OPERATION PART
KNOB OPERATION-P PART
KNOB POWER
KNOB POWER-P
SPRING (B)
PLX PAN30X12STL CMT
KNOB CAP
(C·l) PART
KNOB CAP (C-1)-P PART
KNOB CAP (E) PART
KNOB CAP (E)-P PART
KNOB
DEFEAT
KNOB TONE (A)
KNOB
TONE (B)
KNOB
TONE (C)
PANEL DOOR AA-R32
PANEL DOOR AA-R32-P
PANEL DOOR
AA-R32L
PANEL DOOR AA-R32L-P
KNBOPUSH
KNOBPUSH-P
COVER UPPER
COVER UPPER-P
T2BR30x08STL BZN PROJECTION
GUIDE(L)
GUIDE(R)
SLIDER
-----------------PARTS LIST AA·R32/L-----------------
