Page 19 of 80
10. If you’re satisfied with the window position, press it firmly against the chassis to
seat it well in place.
Install Back Panel Power Connectors and Front Panel Power
Switch
The switched outlet, non-switched outlet, and IEC power input connector push into the
chassis from the outside and are retained by an amazingly effective built-in spring clip
mechanism. Install these three items in the orientation shown in Figure 13. Make sure
you get the orientation of the IEC power connector correct…it’s pretty well impossible to
remove once installed!

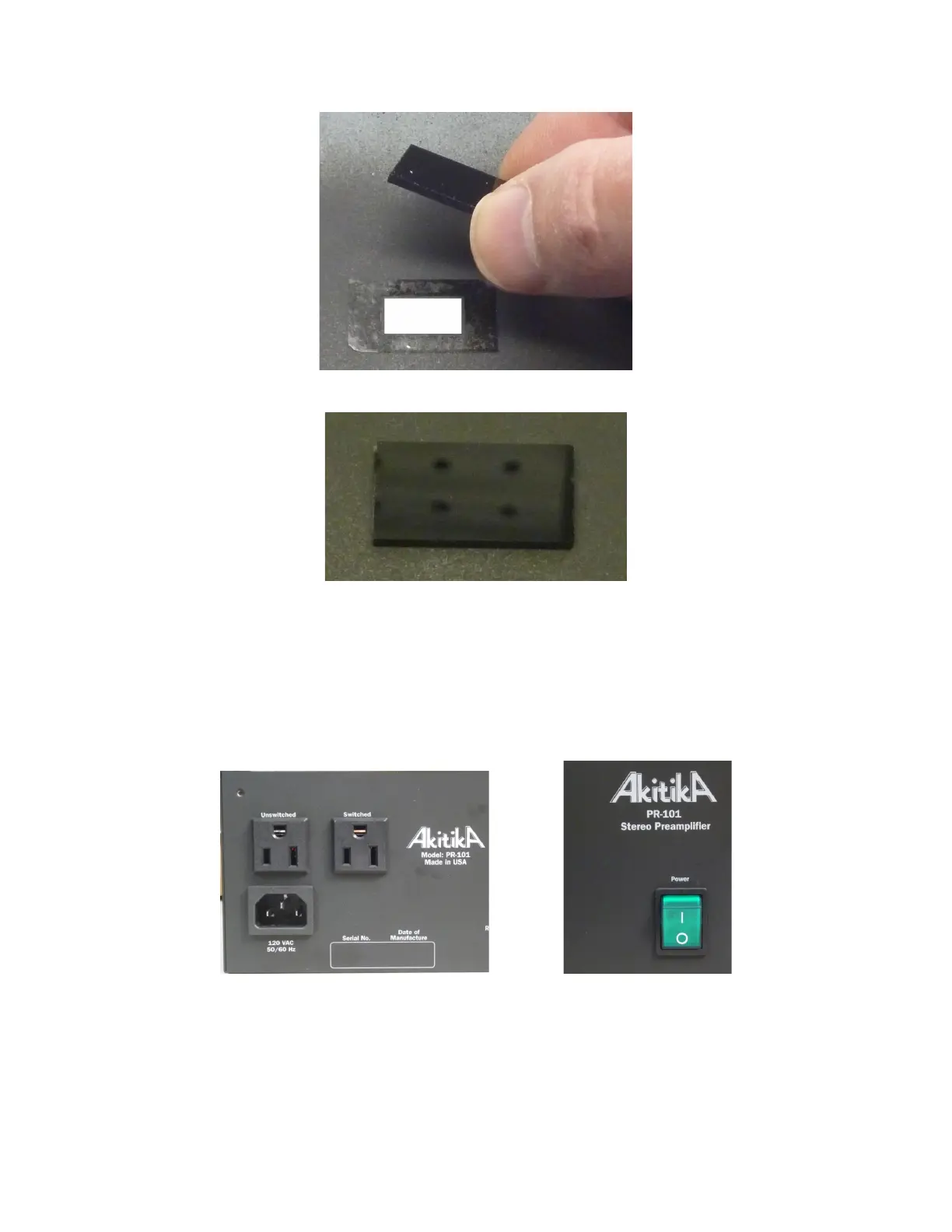

Figure 13-Installing power outlets and IEC connector...watch orientation! Installing the power
switch…watch orientation!
Push the front panel power switch into the front panel from the outside. Make sure you
have the orientation correct with the O on the switch toward the chassis bottom before
you push it in. It is very difficult to remove once installed.
