AkitikA PR102NR - Install the 14-Pin Cable Connector; Install the Remaining Non-Polar Capacitors; Figure 40-Carefully Note the Connector Orientation; Figure 41-Install Jumper Wires in the C5 and C6 Positions

Page 60 of 80
3. Solder the rest of the relay pins.
Designation
Description
Done(

)
K1
DPDT Relay
with 5
-
volt coil
K2
DPDT Relay with 5
-
volt coil
K3
DPDT Relay with 5
-
volt coil
Install the 14-pin cable connector.
Make sure to insert the connector with the correct orientation as shown in Figure 40.

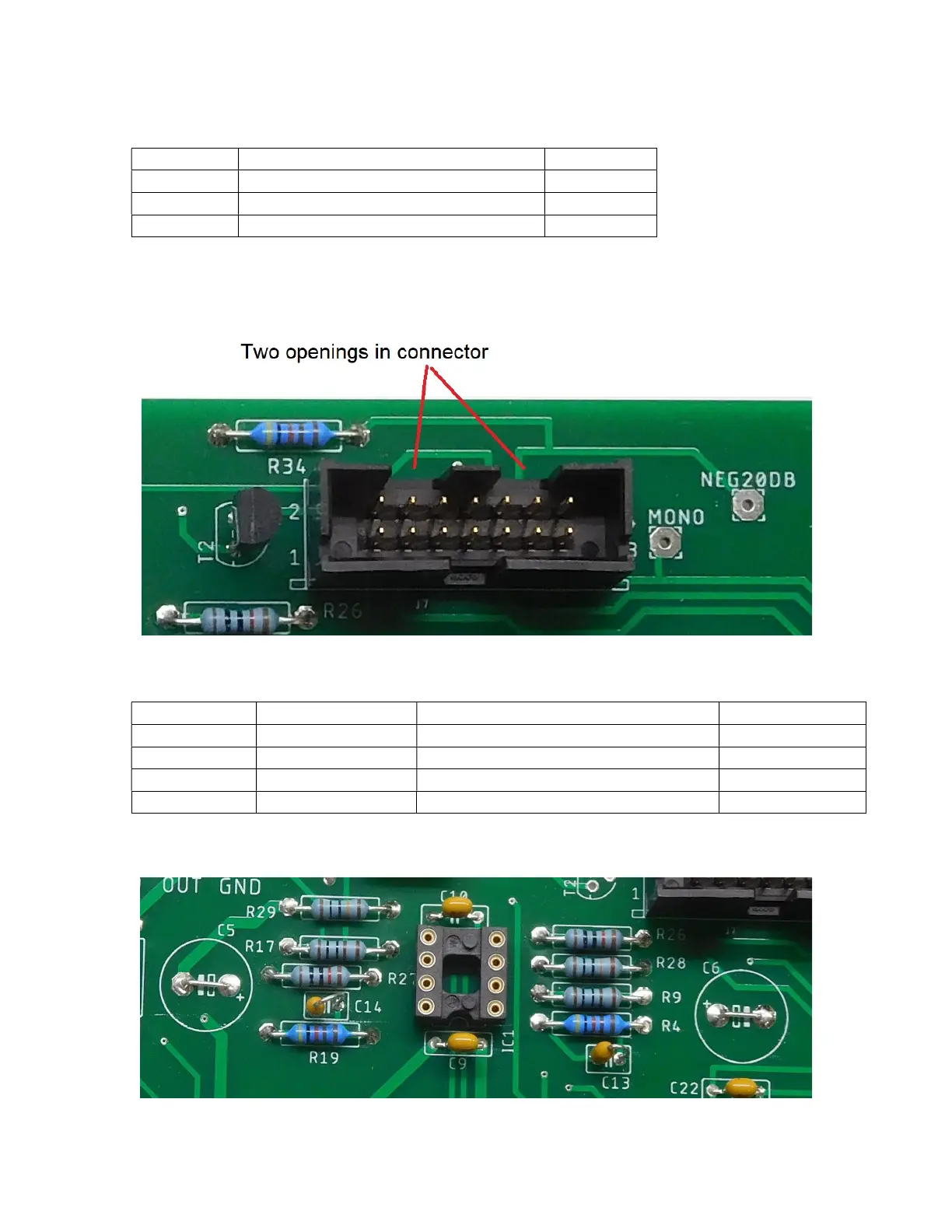

Figure 40-Carefully note the connector orientation
Install the remaining non-polar capacitors
Designation
Value
Marking, description
Done(

)
C1
22nF
22nJ100
C4
22nF
22nJ100
C
2
47nF
47nJ100
C
3
47nF
47nJ100
Although C5 and C6 are laid out to accept 100 µF 35-volt bipolar aluminum electrolytics,
we found superior results by replacing these two capacitors with jumper wires, see Figure
41.
Figure 41-install jumper wires in the C5 and C6 positions
