Page 23 of 80
9. Connect the Black wire of the twisted pair to the top row switch contact closest to
the chassis wall.
10. Connect the white wire of the twisted pair to the remaining top row switch
contact.
11. Make sure that the wires are formed to avoid the nearby ground stud.

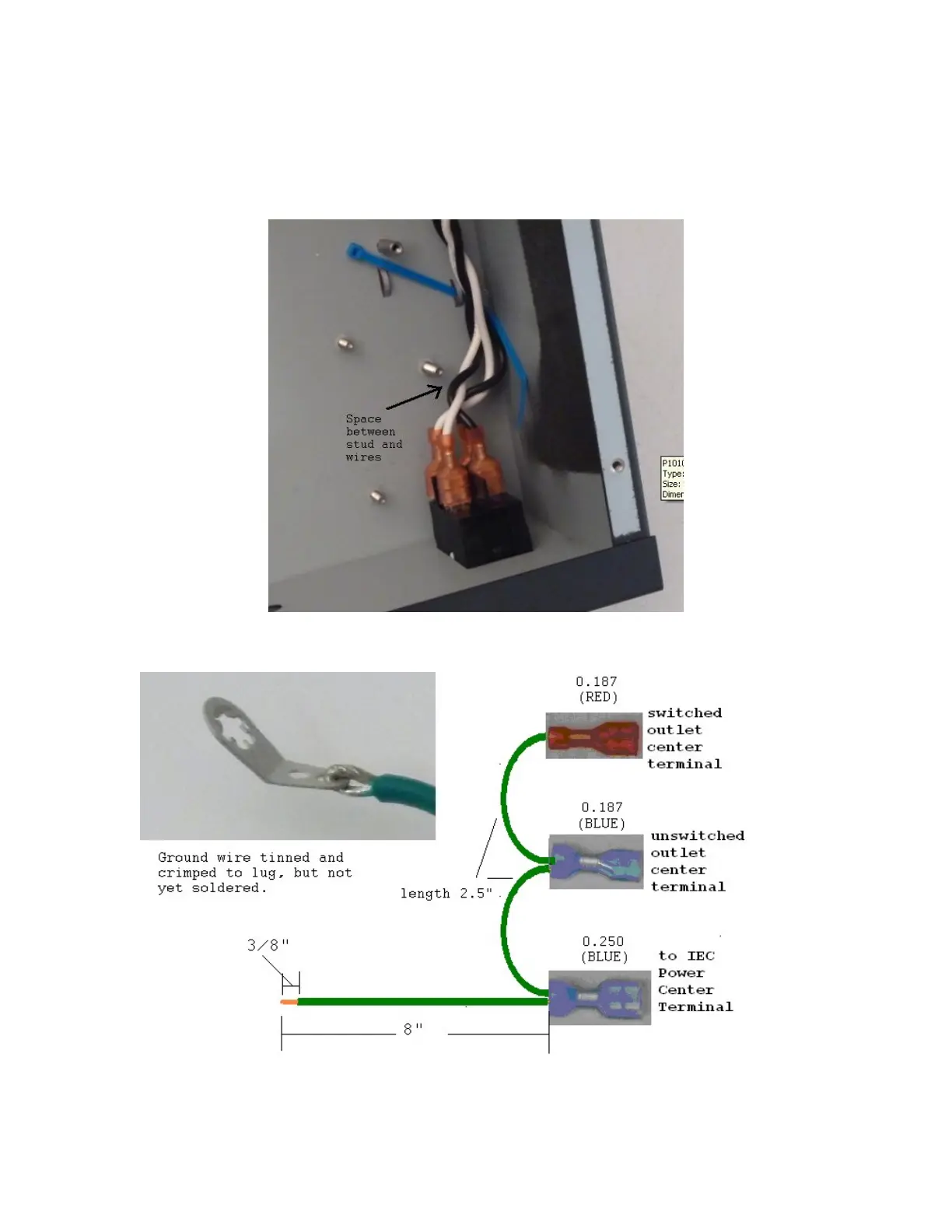

Figure 15-Form switch wires to avoid the ground stud
12. Once the wires are nicely formed into the corner, cinch both cable ties and cut the
tail of the cable tie.
Figure 16-Adding Lug to Ground Harness
