12 Volt Power wires
Locate the thicker gray jacketed cable. Note that there is also thinner gray jacketed cable.
Find both and compare them to make sure you really have the thicker gray jacketed
cable.
Now that you’re sure you have the thicker gray jacketed cable, beneath the gray jacket
you’ll find:
 Red 18 AWG stranded wire
 Black 18 AWG stranded wire
 Foil shield
 Bare stranded 18 AWG drain wire
 Fuzzy string

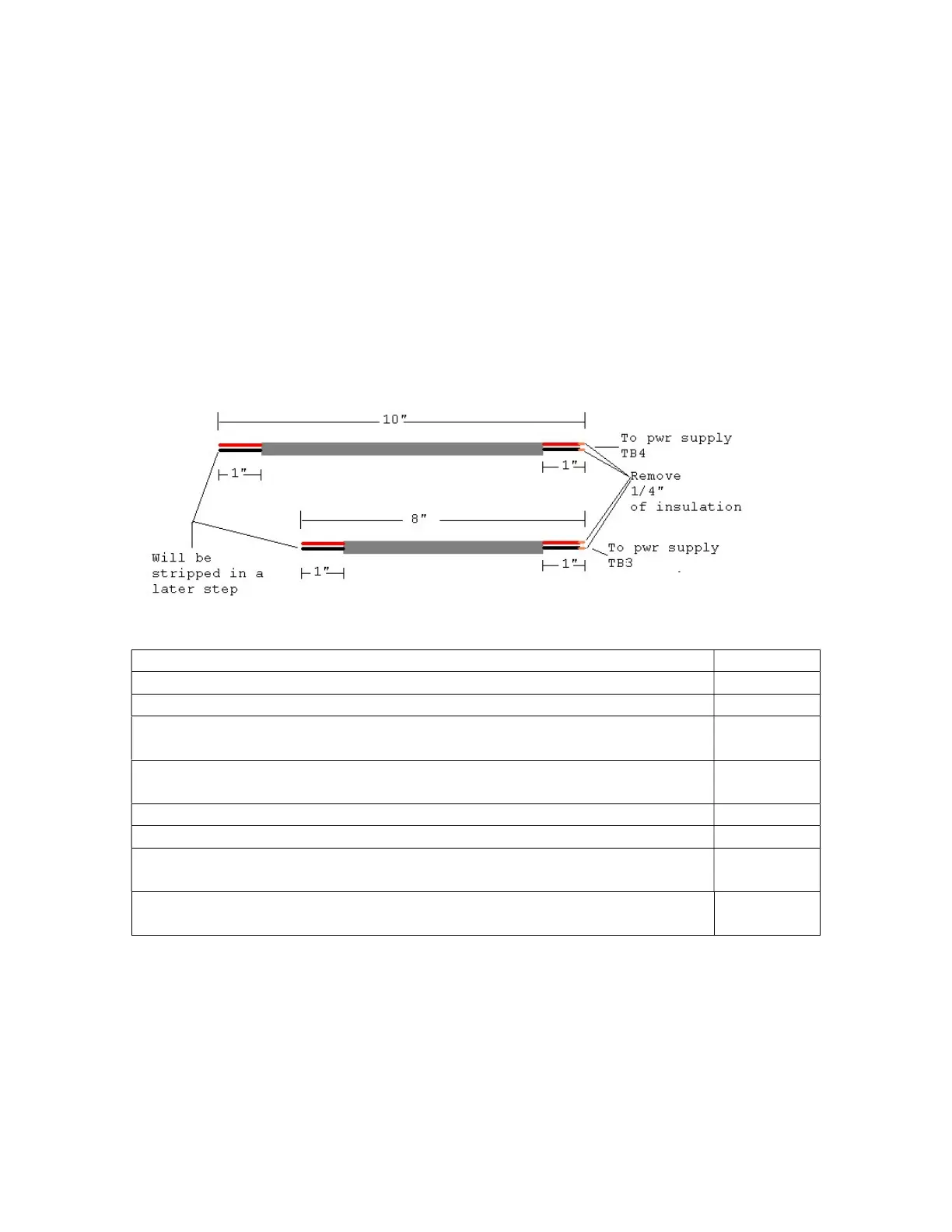

Prepare an 8” length and a 10” length per the following diagram:
Cut and remove the drain wire from both ends. Remove the foil shield. Cut the fuzzy
string. See Appendix 1 for hints on preparing the gray jacketed wires.
Plus and Minus 12V power wire installation
Done? (

)
Twist and tin the bare end of the
10” red wire.
Twist and tin the bare end
of the 10” black
wire.
Insert the tinned 10” red wire from the bottom of the power supply board
into the TB4 hole marked P12 and solder it on the top side.
Insert the tinned 10” black wire from the bottom of the power supply board
into the
TB4 hole marked N12
and solder it on the top side.
Twist and tin the bare end of the 8” red wire.
Twist and tin the bare end of the 8” black wire.
Insert the tinned 8” red wire from the bottom of the power supply board
into the T
B
3 hole marked P12 and solder it on the top side.
Insert the tinned 8” black wire from the bottom of the power supply board
into the TB3 hole marked N12 and solder it on the top side.
5 Volt Power and Ground wires
Locate the red/black 18 AWG bonded-paired wire (zip cord). Prepare a 14” length per the
following diagram:
