Akuvox C313 Series Admin Guide

C313X Indoor Monitor Administrator Guide
AKUVOX SMART INTERCOM www.akuvox.com
33
10. Network Setting
10.1.Device Network Configuration
You can check for the C313 network connection info and configure the
default DHCP mode (Dynamic Host Configuration Protocol) and static IP
connection for the device either on the device or on the device web interface.

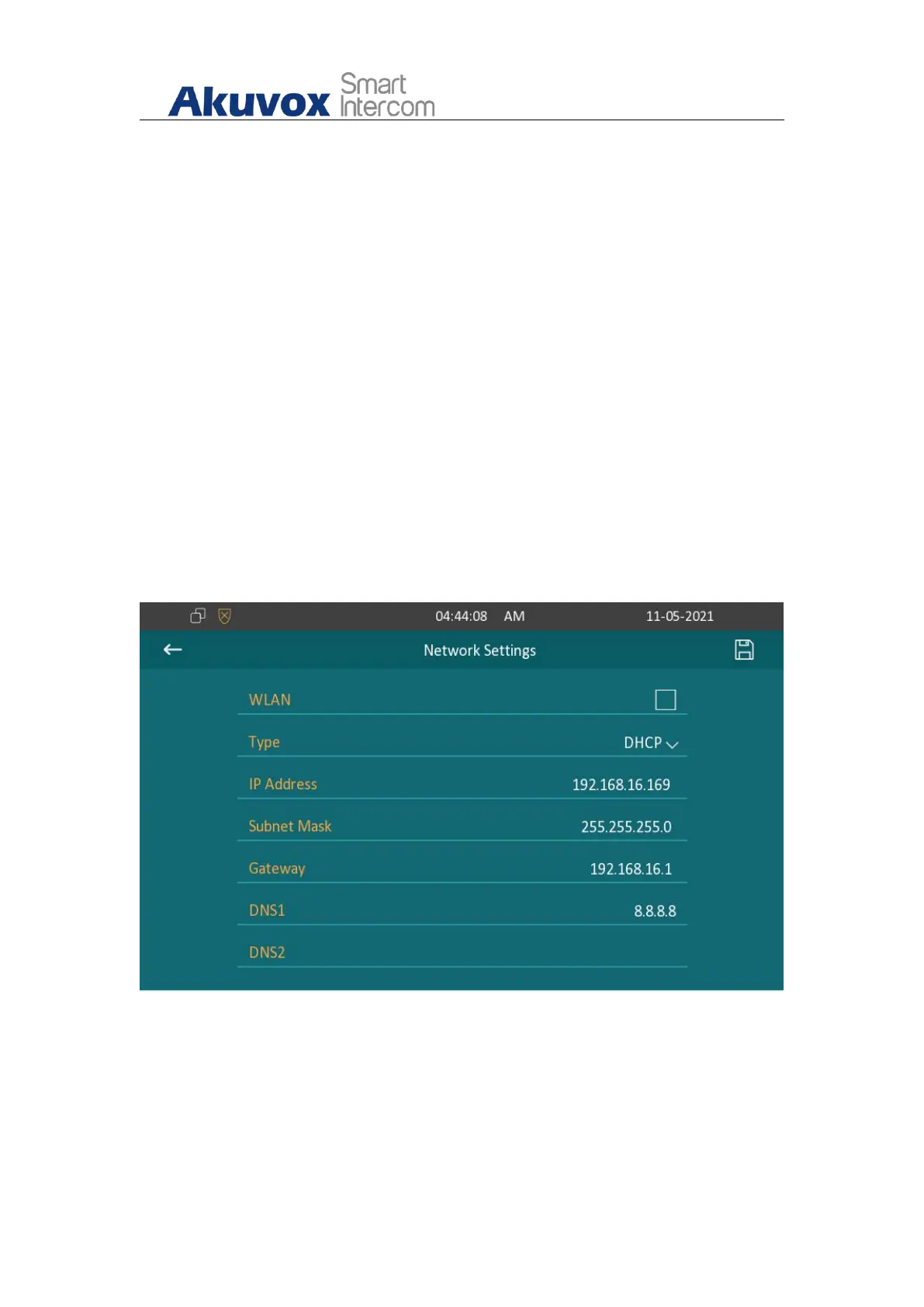

10.1.1. Configuring Network Connection on the Device
To check and configure the network connection on the device screen More >
Setting > Advance > Network.
Parameter Set-up:
 Type: select the DHCP mode or Static mode. DHCP mode is the default
network connection. If the DHCP mode is selected, then the door phone
will be assigned by the DHCP server with IP address, subnet mask,
default gateway, and DNS server address automatically. When Static IP

Akuvox C313 Series Specifications

General

Audio	Built-in Microphone and Speaker
Installation	Wall-mounted
Ethernet	10/100Mbps
Relay Output	1
PoE	IEEE 802.3af
Power Supply	DC 12V or PoE
