13. Relay Setting
13.1.Relay Switch Setting

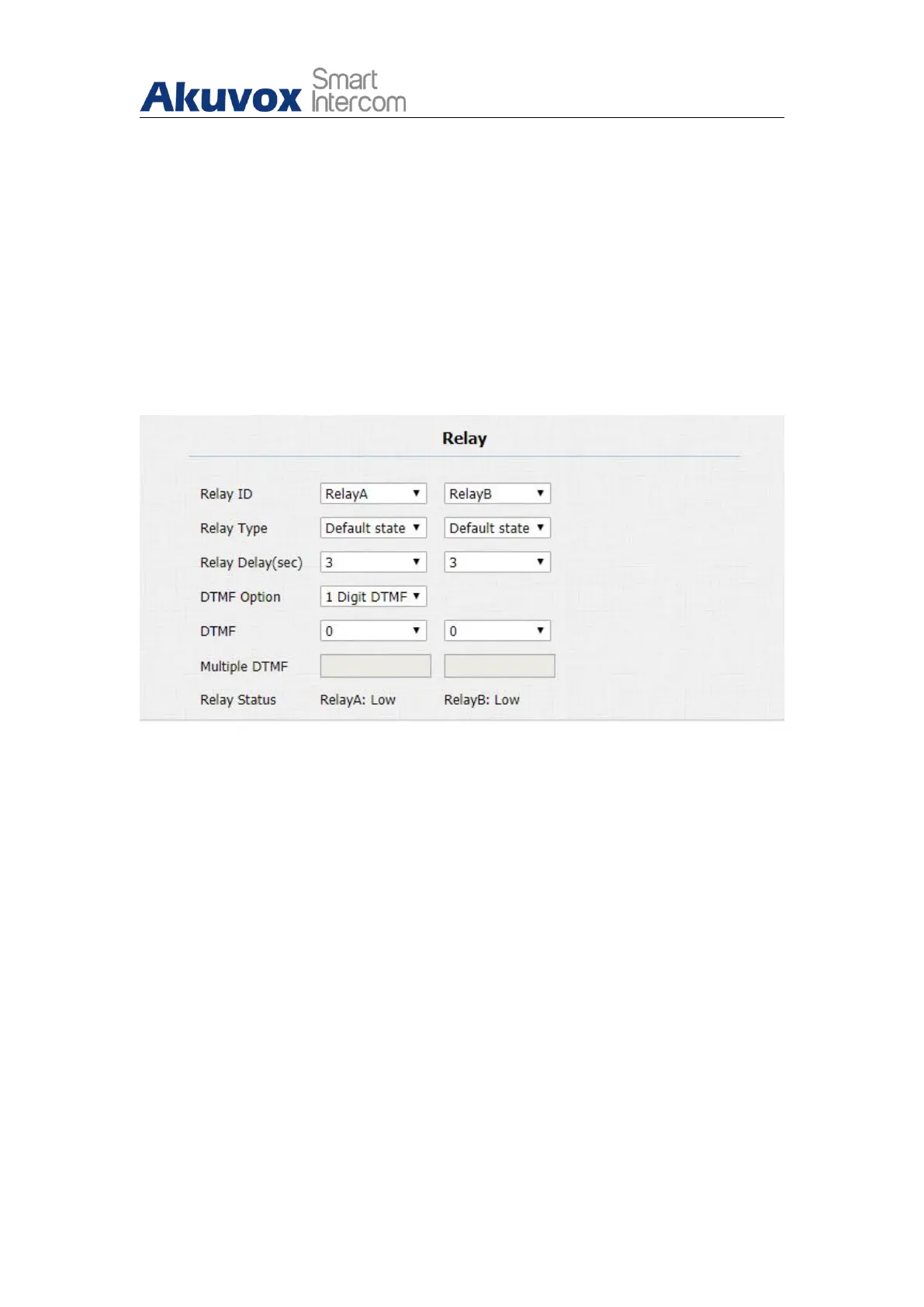

You can configure the relay switch(es) and DTMF for the door access on the
web Intercom > Relay interface.
Parameter Set-up:
Relay Delay (Sec): set the relay trigger delay timing (Ranging from 1-10
Sec.) For example, if you set the delay time as “5” Sec. Then the relay will
not triggered until 5 seconds after you press “unlock “ tab.
DTMF Option: select the number of DTMF digit for the door access
control (Ranging from 1-4 digits ) For example, you can select 1 digit
DTMF code or 2-digit DTMF code etc., according to your need.
DTMF : set the 1-digt DTMF code within range from ( 0-9 and *,#).
Multiple DTMF: set the DTMF code according to the DMTP Option setting.
For example, you are required to set the 3-digits DTMF code if DTMF
Mode is set as 3-digits.
Relay Status: relay status is low by default which means normally
