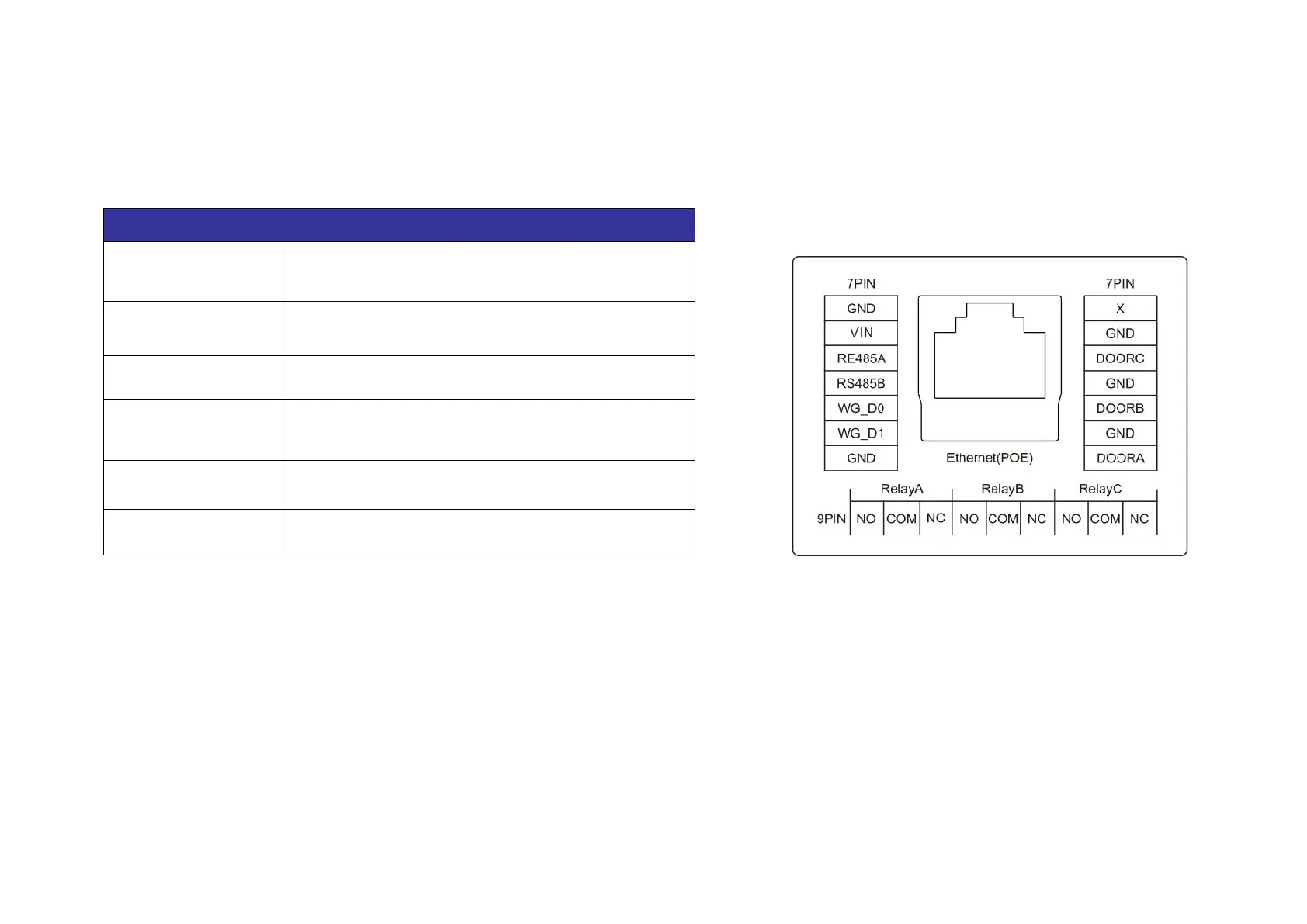

1.3.Connector Introduction
Connector
Ethernet(POE)
Ethernet(POE) connector ， which can provide
both power and network connection.
VIN(12V)/GND
External power supply terminal if POE is not
available.
WG_D0/1 Wiegand terminal for wiegand access control
RS485A/B
RS485 terminal for automation system
control(e.g. Elevator control).
DOORA/B/C
Trigger signal input terminal(e.g. Press indoor
button to open relay).
RelayA/B/C NO/NC Relay control terminal.
