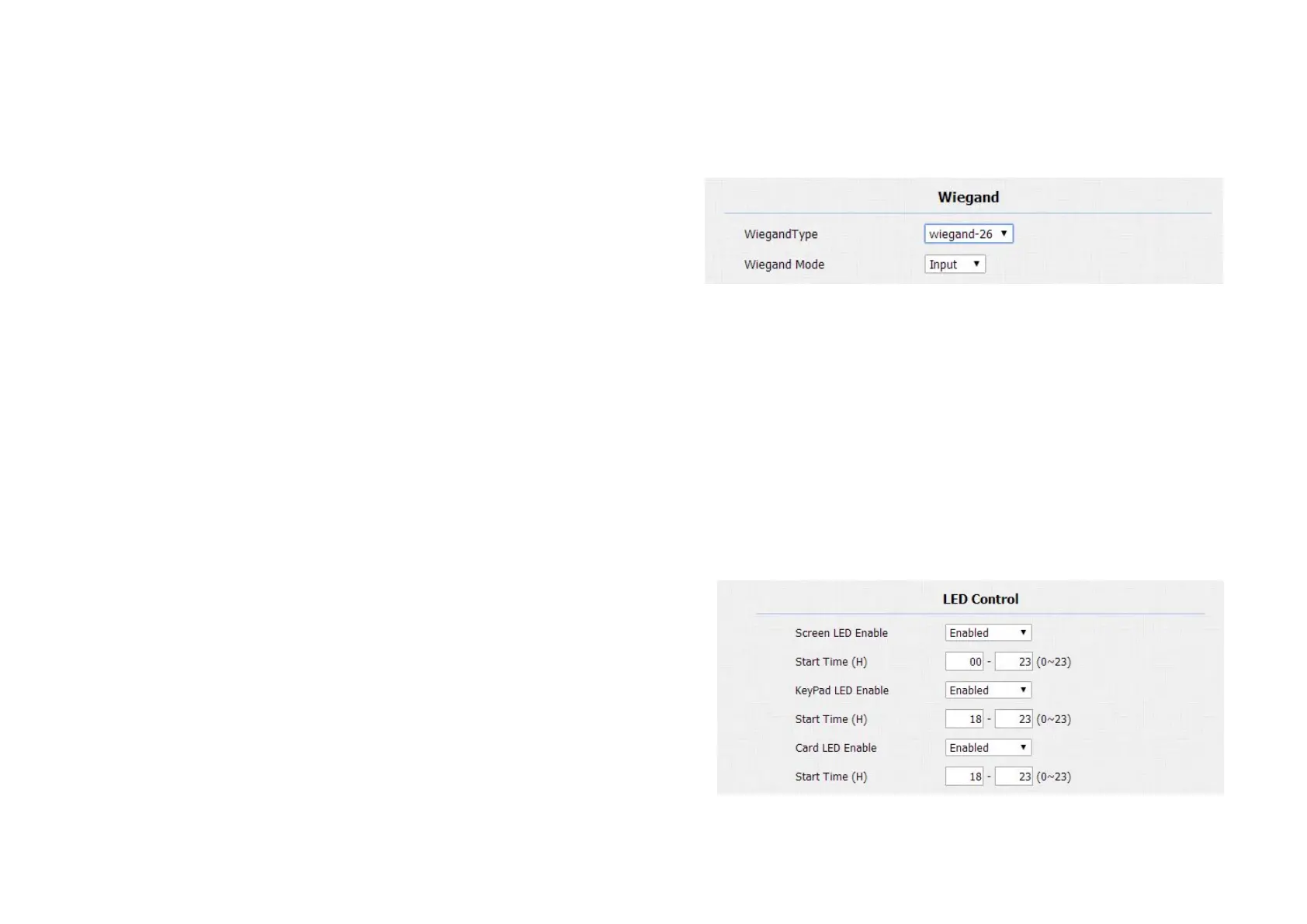

Wiegand: Using to integrate with some wiegand access
control. R27A/C can be used as wiegand input or output.
Wiegand Type: Support Wiegand 26, 34. The different
number means different bits.
Wiegand Mode: Input or Output. Typically, when you select
input, we generally connect the wiegand input device, such as
the wiegand card reader. Or R27A/C can be used as output, It
is generally used to connect the third-party Access Control,
then R27A/C change the card information as wiegand signal,
then transfer to the access control module.
User can control three parts LED -Screen, keypad and Card
area by yourself. And also can setup the valid time. For
example start time from 18-23, means the LED will light up
from 6pm to 11pm.
