ALBIN PUMP ALH - Page 30

30 albinpump@irco.com  Albinpump.com  Albin Pump ALH Instruction Manual
since 1928
ALH
Characteristics / Technical Specications
A B C D E F G H I J
ALH25 95 (3.7) 262 (10.3) 356 (14.0) 134 (5.3) 430 (17) 307 (12.0) 347 (13.7) 110 (4.3) 520 (20.5) 550 (21.6)
ALH32 121 (4.8) 330 (13.0) 438 (17.2) 237 (9.3) 524 (20.6) 424 (16.7) 474 (18.7) 158 (6.2) 770 (30.3) 800 (31.5)
ALH40 121 (4.8) 330 (13.0) 438 (17.2) 237 (9.3) 524 (20.6) 424 (16.7) 474 (18.7) 158 (6.2) 770 (30.3) 800 (31.5)
ALHX40 110 (4.3) 430 (16.9) 414 (16.3) 294 (11.6) 619 (24.4) 340 (13.4) 420 (16.5) 159.4 (6.3) 850 (33.5) 950 (37.4)
ALH50 164 (6.4) 554 (21.8) 522 (20.5) 360 (14.2) 801 (31.5) 513 (20.2) 593 (23.3) 257 (10.1) 950 (37.4) 1050 (41.3)
ALHX65 143 (5.6) 597 (23.5) 598 (23.5) 390 (15.3) 831 (32.7) 513 (20.1) 593 (23.3) 186 (7.3) 950 (37.4) 1050 (41.3)
ALH65 164 (6.4) 554 (21.8) 522 (20.5) 360 (14.2) 801 (31.5) 513 (20.2) 593 (23.3) 257 (10.1) 950 (37.4) 1050 (41.3)
ALHX80 158 (6.2) 746 (29.4) 609 (24) 473 (18.6) 1004 (39.5) 580 (22.8) 680 (26.8) 290 (11.4) 1150 (45.2) 1250 (49.2)
ALH80 266 (10.5) 876 (34.5) 803 (31.6) 561 (22.0) 1265 (49.8) 690 (27.2) 830 (32.3) 345 (13.6) 1300 (51.2) 1400 (55.1)
ALH100 300 (11.8) 1040 (40.9) 911 (35.9) 698 (27.5) 1516 (59.7) 820 (32.3) 960 (37.8) 387 (15.2) 1900 (74.8) 2000 (78.7)
ALH125 258.5 (10.2) 1273 (50.1) 1037 (40.8) 818 (32.2) 1715 (67.5) 1000 (39.4) 1160 (45.7) 500 (19.7) 1900 (74.8) 2000 (78.7)
K L M N O ANSI FLANGE / ISO FLANGE P R
ALH25 4xø13 (4xø0.5) - 62 (2.4) 62 (2.4) ANSI 1 in / 150# (DN25 PN16) 71 (2.8) 110 (4.3)
ALH32 4xø13 (4xø0.5) - 85 (3.3) 75 (2.9) ANSI 1.25 in / 150# (DN32 PN16) 91.5 (3.6) 158 (6.2)
ALH40 4xø13 (4xø0.5) - 85 (3.3) 75 (2.9) ANSI 1.5 in / 150# (DN40 PN16) 91.5 (3.6) 158 (6.2)
ALHX40 4xø19 (4xø0.7) - 74 (2.9) 64 (2.5) ANSI 1.5 in / 150# (DN40 PN16) 87 (3.4) 159.4 (6.3)
ALH50 4xø19 (4xø0.7) - 99.5 (3.91) 87.6 (3.4) ANSI 2 in / 150# (DN50 PN16) 148 (5.8) 186.5 (7.3)
ALHX65 4xø19 (4xø0.7) - 113 (4.4) 113 (4.4) ANSI 2.5 in / 150# (DN65 PN16) 136 (5.3) 256 (10.0)
ALH65 4xø19 (4xø0.7) - 99.5 (3.91) 87.6 (3.4) ANSI 2.5 in / 150# (DN65 PN16) 148 (5.8) 186.5 (7.3)
ALHX80 4xø19 (4xø0.7) - 108 (4.2) 108 (4.2) ANSI 3 in / 150# (DN80 PN16) 167 (6.6) 290 (11.4)
ALH80 4xø27 (4xø1.0) - 125 (4.9)
108.5
(4.3)
ANSI 3 in / 150# (DN80 PN16) 202 (7.8) 345 (13.6)
ALH100 4xø27 (4xø1.0) - 147 (5.8) 131 (5.1) ANSI 4 in / 150# (DN100 PN16) 361 (14.2) 387 (15.2)
ALH125 4xø27 (4xø1.0) - 160.5 (6.3)
144.5
(5.7)
ANSI 5 in / 150# (DN125 PN16)
363.5
(14.3)
500 (19.7)
BA
CD
G
R R
HH
E
F
J
NM
L
O
I
P
4 x K

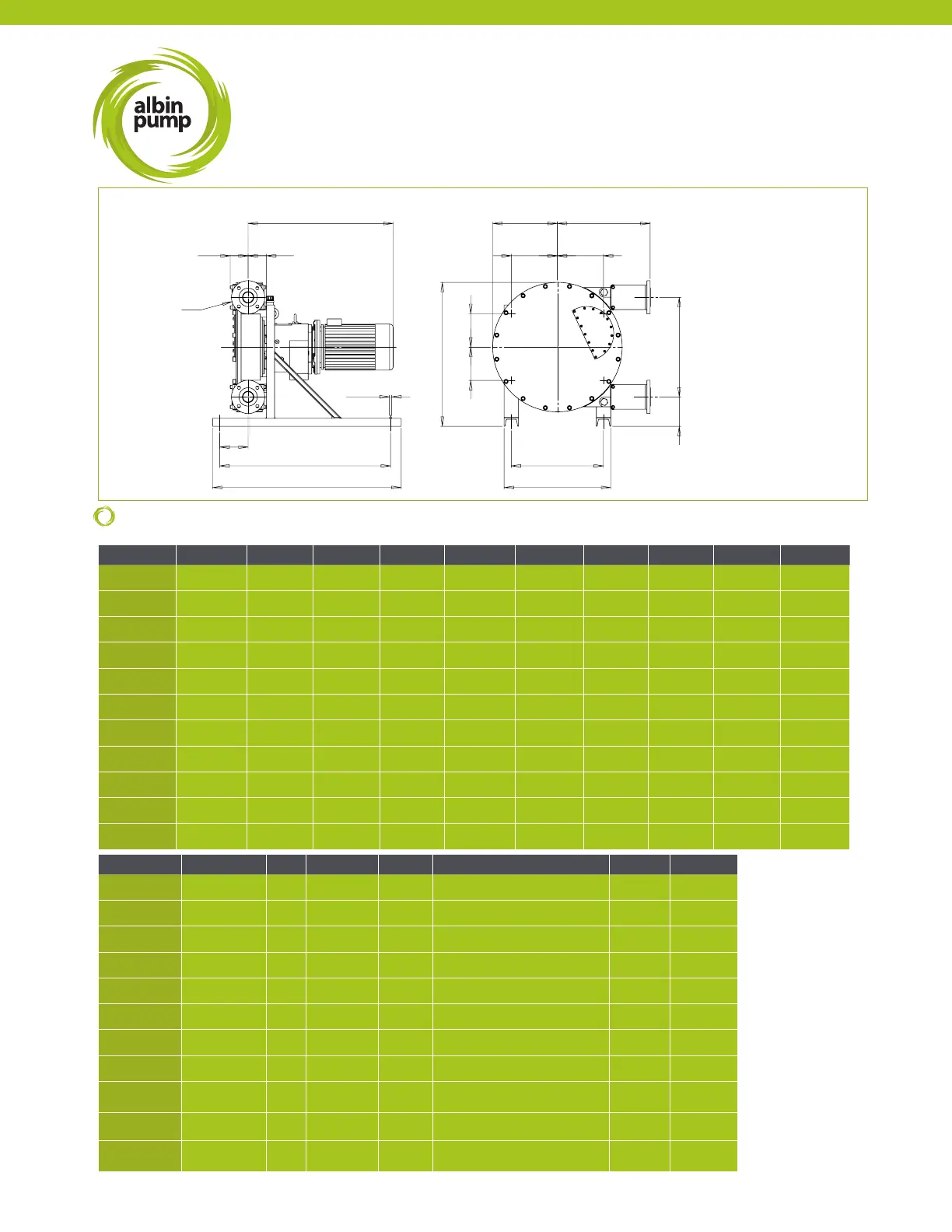

PUMPS ALH25 TO ALH125
DIMENSIONS
mm (Inch)
