Configuring Ports
Page 176 7750 SR OS Interface Configuration Guide
Configuring a Channelized OC-12-SFP Port

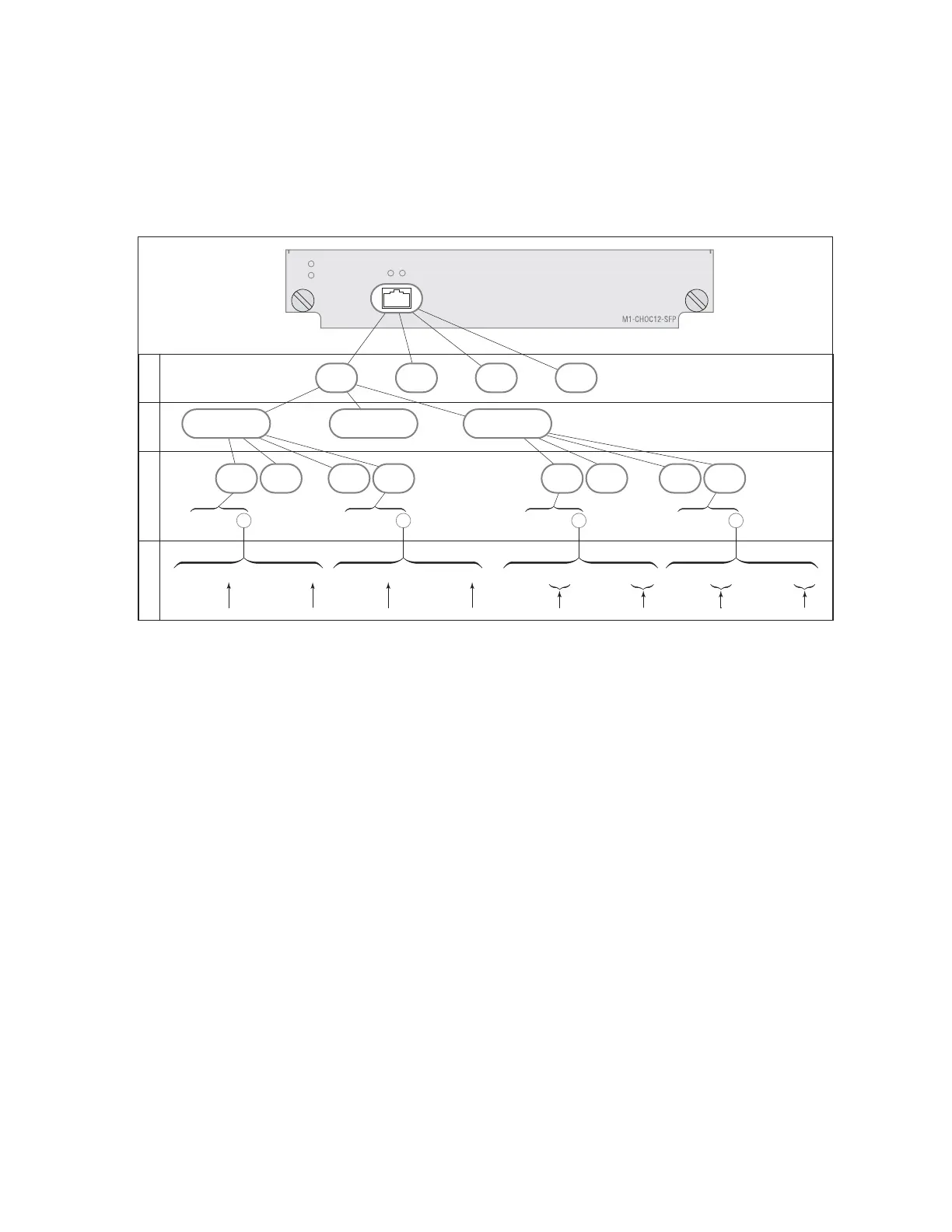

Figure 34 depicts the logic of the channelized OC-12 port configuration.
Figure 34: Channelized OC-12 Port Structure
The following describes an example to configure a channelized port on a 1-port channelized OC-
12-SFP MDA:
ALA-A>config# port 5/2/1
At this level you must choose the tributary. When provisioning DS3 nodes on a channelized OC-12
MDA, you must provision the parent STS1-1 SONET path first.
A:ALA-A>config>port# sonet-sdh
A:ALA-A>config>port>sonet-sdh# path sts1-1.1
A:ALA-A>config>port>sonet-sdh>path# no shutdown
A:ALA-A>config>port>sonet-sdh>path# exit
The following displays the output:
A:ALA-A>config>port>sonet-sdh# info
----------------------------------------------
sonet-sdh
path sts1-1.1
no shutdown
exit
Z
Y
X
A
STS3-1
DS1-1 DS1-2 DS1-27 DS1-28
STS1-3/DS3-1.1 STS1-3/DS3-1.2 STS1-3/DS3-1.3
STS3-2 STS3-3 STS3-4
1/1/1.1.1.1.1
1/1/1.1.1.1.1 1/1/1.1.1.1.24
...
...
... ...
MDA0022A
Channel-groups
1/1/1.1.1.28.1
1/1/1.1.1.1.1 1/1/1.1.1.1.24
...
Channel-groups
DS1-1 DS1-2 DS1-27 DS1-28
1/1/1.1.1.1.1
1/1/1.1.1.28.1 1/1/1.1.1.28.24
...
...
Channel-groups
1/1/1.1.1.28.1
1/1/1.1.1.28.1 1/1/1.1.1.28.24
...
Channel-groups
