IP/V24 WALLBOARD
2 x 16 digits
TECHNICAL
MANUAL
D0503002
23/01/2008
Page 7/18

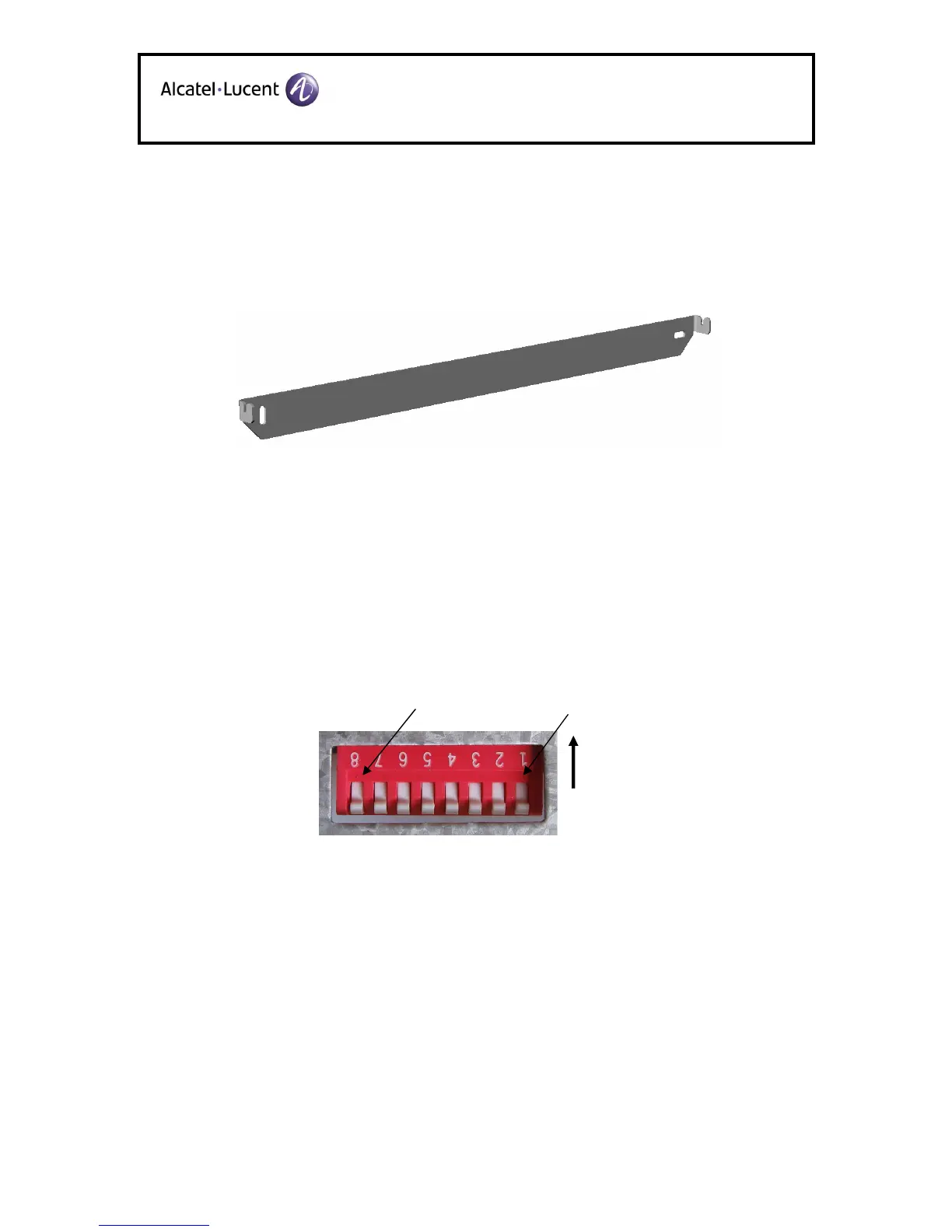

5.3 Wall Attachment
The wallboard is attached with the mounting foot
Distance between centres: 310mm
Screws Ø 3mm
Outdistance minimum ceiling 200mm.
5.4 Wallboard Configuration
The wallboard operating mode is set up using SW1-SW8 micro-switchs that can be accessed
through an opening on the top panel of the wallboard.
Micro-switchs are read when the wallboard is started: SW6 and SW7 show the mode, SW1-
SW5 show related settings, and SW8 is not used.
SW8
ON
SW1
