Alcatel-Lucent OmniPCX Office Installation Manual

4.13.1.2.5 Adding a Sector

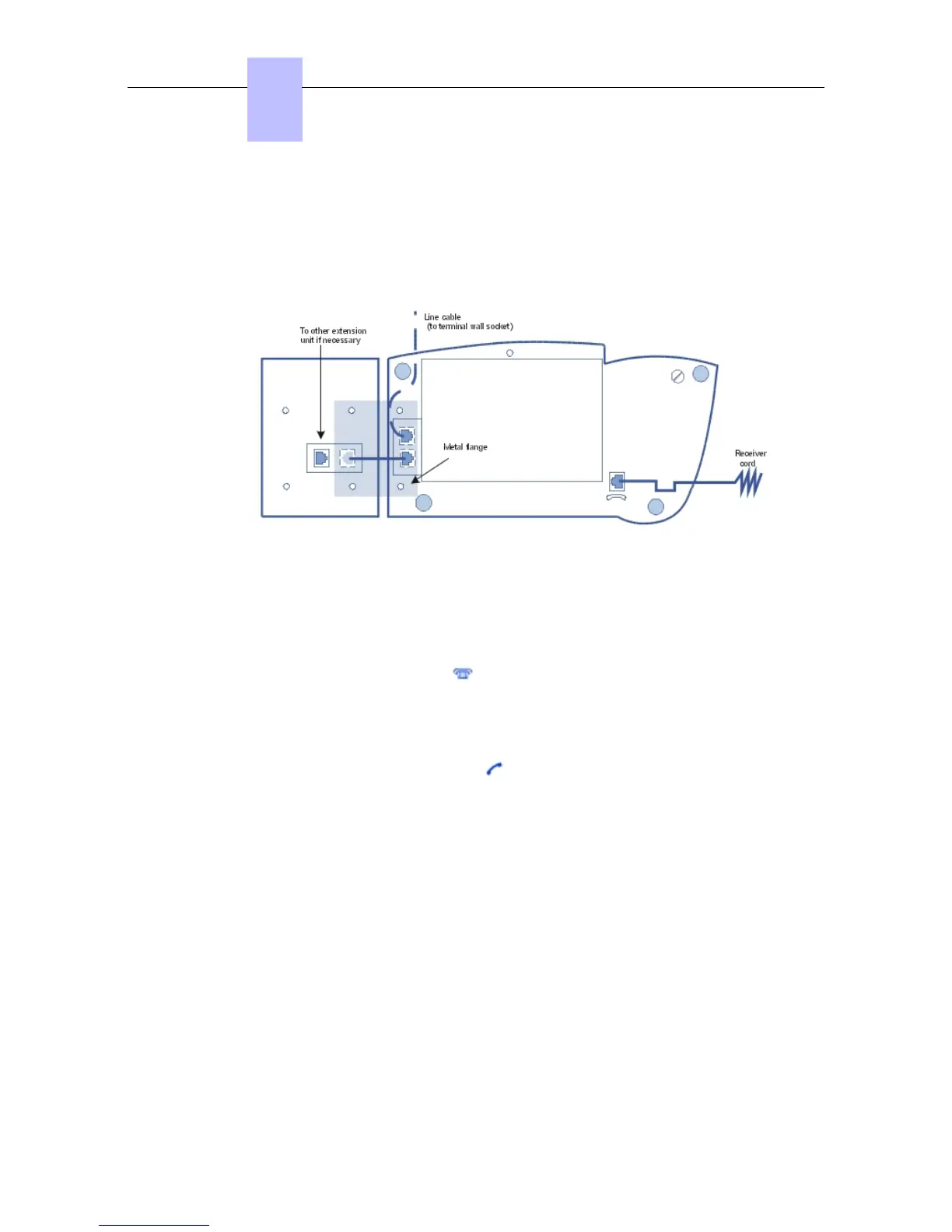

- Turn the set and the module upside down
- Connect the unit to the terminal.
- Join the module to the set using the metallic strip and the 4 screws provided in the kit
4.13.1.3 Alcatel-Lucent First AND Easy Reflexes TERMINALS
4.13.1.3.1 Attaching the line cable:
- Turn the terminal
- Plug in the line cable(connector ) and position it as shown in the illustration.
Attaching the handset cable:
- Turn the terminal
- Plug in the handset cable (connector ) into the guide intended for this purpose.
4.13.1.3.2 Wall mounted
Preparing the terminal
- Turn the terminal
- Unscrew A and remove the metal plate.
- Slide this plate up the lower groove and secure it with screw B.
- Remove the handset hang-up lug by turning screw C through half a turn.
Chapter
4
  ()
4-108
          

Alcatel-Lucent OmniPCX Office Specifications

General

VoIP Protocols	SIP, H.323
Power Supply	100-240 VAC, 50/60 Hz
Humidity	10% to 90% non-condensing
Type	IP PBX
Maximum Trunks	Up to 60
Voice codecs	G.711, G.729
Network Interfaces	10/100 Ethernet
Weight	Varies depending on the model/configuration
