Alcatel-Lucent OmniPCX Office Installation Manual

- Stabilize the mounting by clipping the foot into the base of the terminal.
4.13.1.2.4 Mounting optional modules:
- Turn the terminal
- Remove the panel situated at the rear of the terminal.
- Slide the module into the terminal
- Connet the module to the terminal (connector ).
- Join the module to the terminal using the 2 screws provided in the kit
- Connect the module output (connector UA) to the terminal's wall socket.

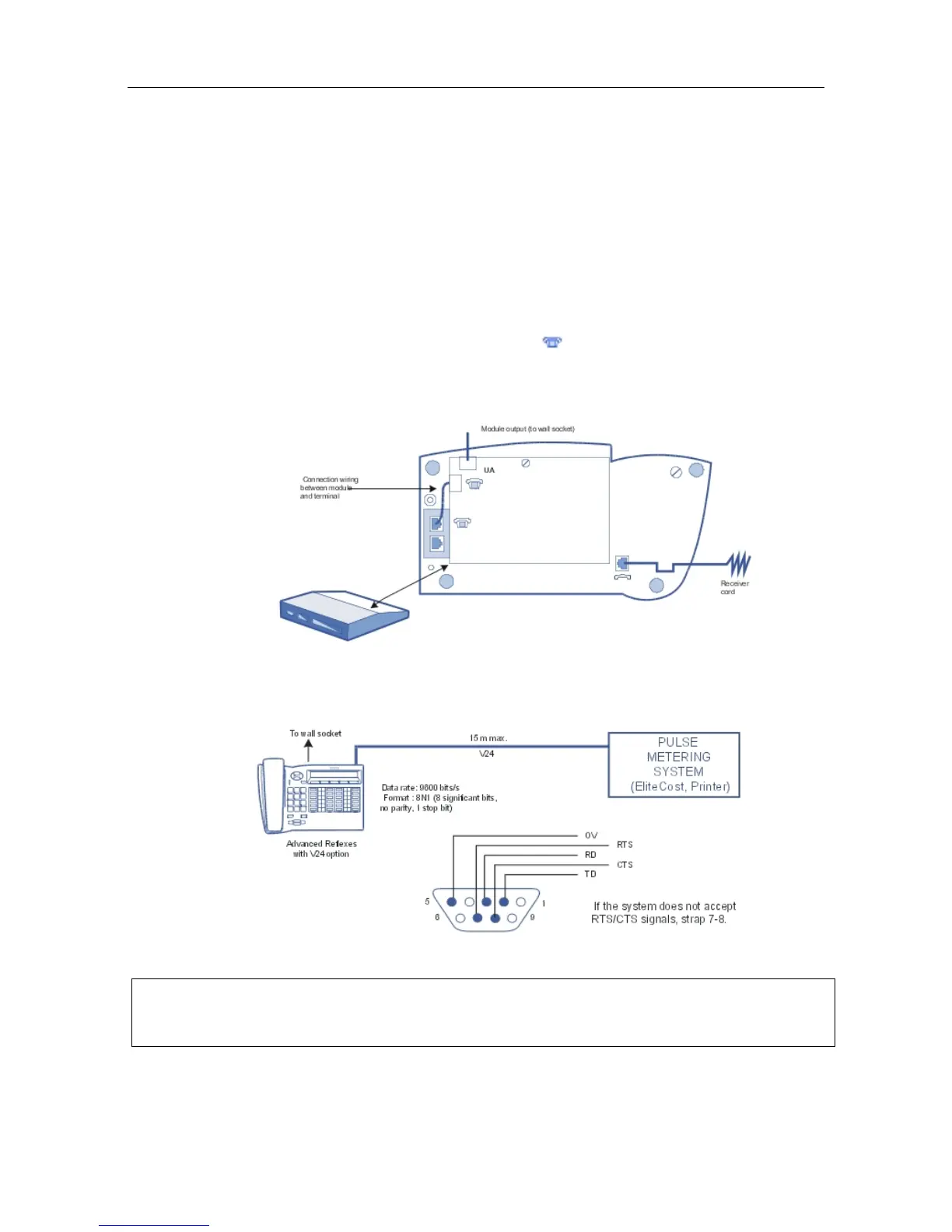

Example of using optional modules: connecting a charge management system
List of abbreviations
- TD: Transmit data - RD: Receive data
- RTS: flow control output - CTS: flow control output
  ()
          
4-107
