Alcatel-Lucent OmniPCX Office Installation Manual

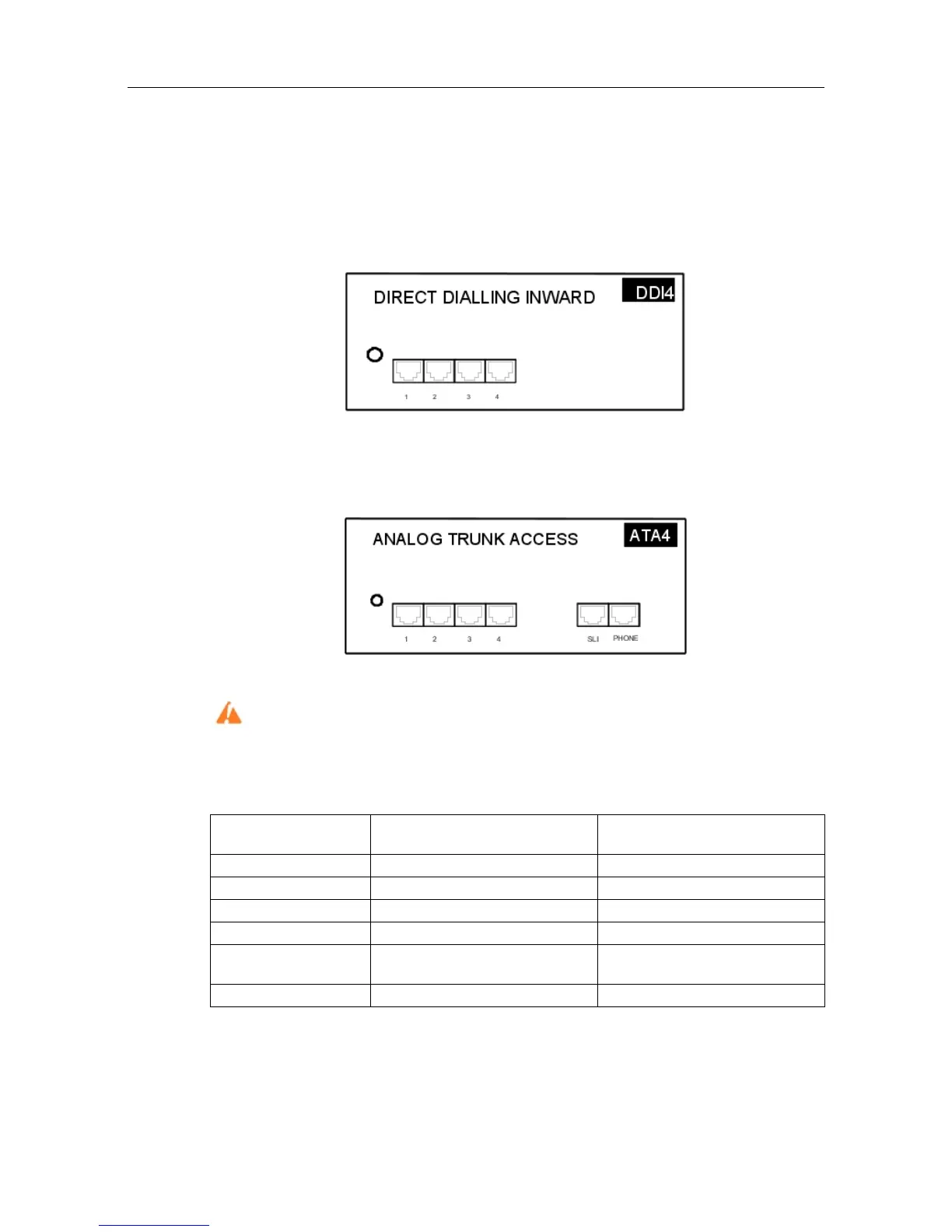

2.4.2.11 DDI-X Board
This board is used to connect 2 or 4 analog trunk lines with Multiple Subscriber Numbers.
2.4.2.12 ATA Board
The ATA (Analog Trunk Access) board serves to connect analog trunk lines (2 or 4 TL).
The ATA board does not support pulse dialing in Australia and New Zealand.
2.4.2.13 Daughter Board Provision on PowerCPU Board
The table below presents the daughter boards which can be provided on the PowerCPU
board, according to the platform used.
Daughter Boards OmniPCX Office RCE Compact OmniPCX Office RCE Small,
Medium, Large
ARMADA VoIP32 Yes Yes
HSL1 No Yes
HSL2 No Yes
AFU-1 Yes Yes
SATA HARD DISK +
SATAEXT board
Yes Yes
Mini-Mix Yes No
Note:
The Mini-MIX daughter board requires BACKXS-N back panel and PSXS-N power supply module. The
"# !$%  $
          
2-13

Alcatel-Lucent OmniPCX Office Specifications

General

VoIP Protocols	SIP, H.323
Power Supply	100-240 VAC, 50/60 Hz
Humidity	10% to 90% non-condensing
Type	IP PBX
Maximum Trunks	Up to 60
Voice codecs	G.711, G.729
Network Interfaces	10/100 Ethernet
Weight	Varies depending on the model/configuration
