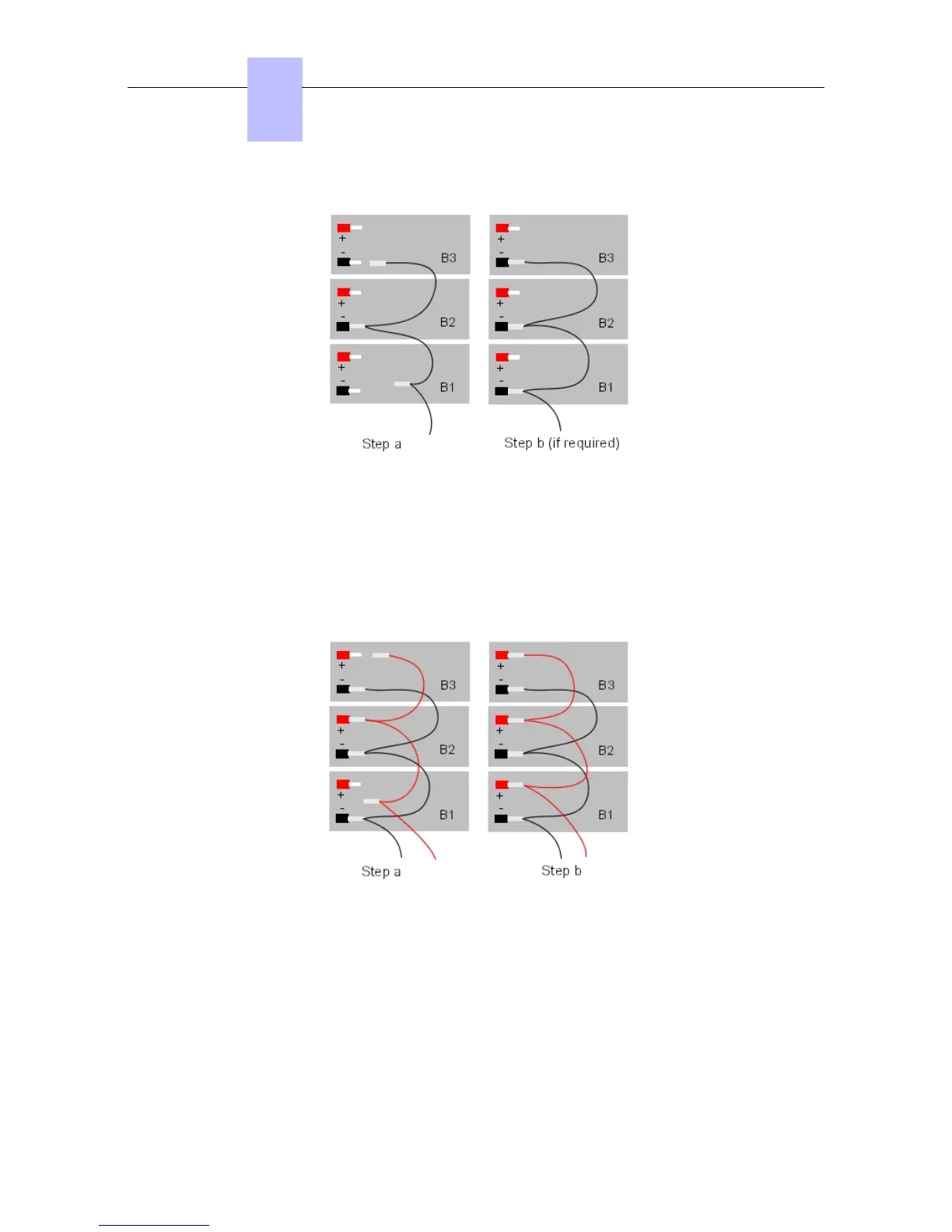

5. Connect the positive (red) terminals of the batteries as described below (and shown in the
figure below).
a. Connect the middle connector of the red wire to the positive (red) terminal of battery
B2.
b. If required, connect the other connectors of the red wire to the positive (red) terminals
of batteries B1 and B3.
6. Close the unit and secure it with the four screws.
7. Stick a label on the unit stating the date of the installation and the number of batteries
installed.
Procedure for 36 V stack version (for OmniPCX Office RCE Large platforms)
The 12 V stack version of the external battery unit can be used with OmniPCX Office RCE
Large platforms. It uses three 12V - 7Ah batteries. Two external battery units can be
connected in parallel to obtain the autonomy achieved with six batteries.
Chapter
4
()
4-24
