Alcatel-Lucent OmniSwitch 6350 - Chapter 3 Omniswitch 6350 Chassis and Hardware Components; Omniswitch 6350-10; Chassis Features; Front Panel

OmniSwitch 6350-10 OmniSwitch 6350 Chassis and Hardware Components
page 3-2 OmniSwitch 6350 Hardware Users Guide April 2017
OmniSwitch 6350-10
Chassis Features
Front Panel

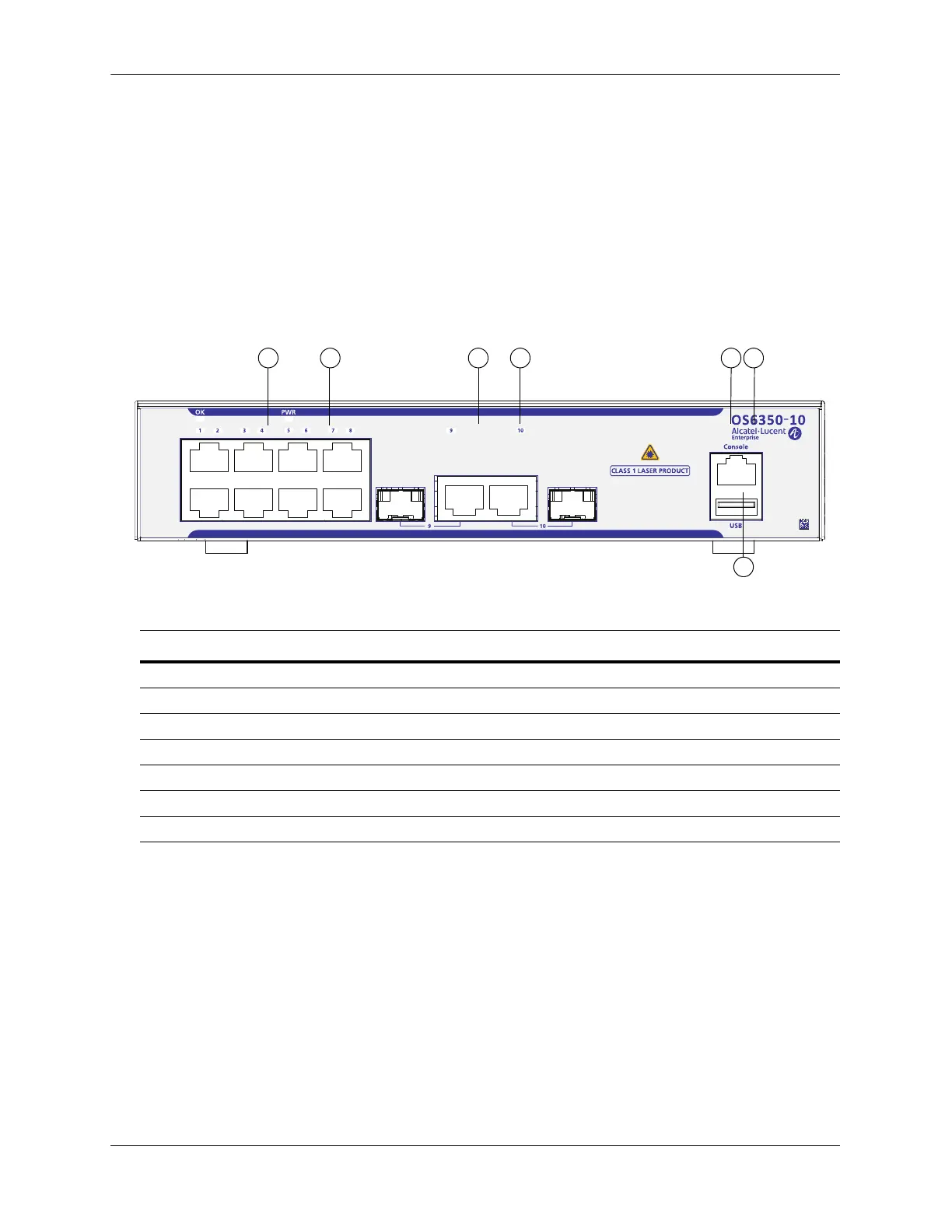

OmniSwitch 6350-10 Front Panel
Refer to “OmniSwitch 6350 LED Status” on page 3-21 for LED status information.
System status LEDs Internal AC Power Supply
(8) 10/100/1000Base-T Ports Console port (RJ-45)
(2) RJ-45/SFP 10/100/1000 combo ports USB port (USB 2.0)
Item Description
A
(8) 10/100/1000Base-T Ports
B
Ethernet Port Status LEDs
C
Console Port
D
System Status LEDs
E
(2) RJ-45/SFP 10/100/1000 combo ports
F
Combo Port Status LEDs
G
USB Port
G
A DEB CF
