OmniSwitch 6350 Chassis and Hardware Components OmniSwitch 6350-P24
OmniSwitch 6350 Hardware Users Guide April 2017 page 3-11
OmniSwitch 6350-P24
Chassis Features
Front Panel

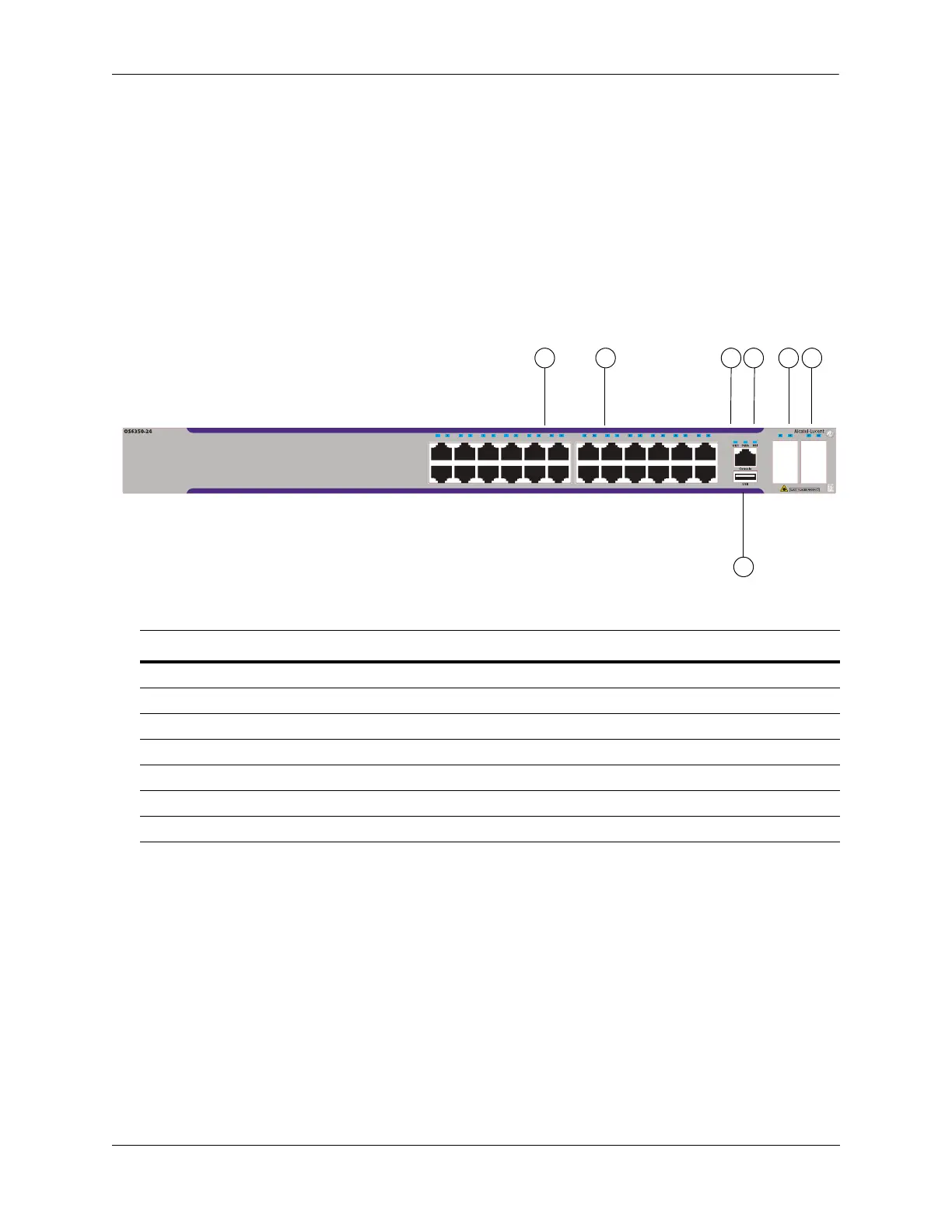

OmniSwitch 6350-P24 Front Panel
Refer to “OmniSwitch 6350 LED Status” on page 3-21 for LED status information.
System status LEDs Internal AC Power Supply
(24) 10/100/1000Base-T PoE ports Console port (RJ-45)
(4) Non-combo SFP Ports USB port (USB 2.0)
Item Description
A
(24) 10/100/1000 Power over Ethernet (PoE) Ports
B
Ethernet Port Status LEDs
C
Console Port
D
System Status LEDs
E
Four (4) Fixed SFP Ports
F
SFP Port Status LEDs
G
USB Port
G
A D EB C F
