Alcatel-Lucent OmniSwitch 6350 - Omniswitch 6350-48; Chassis Features; Front Panel

OmniSwitch 6350-48 OmniSwitch 6350 Chassis and Hardware Components
page 3-14 OmniSwitch 6350 Hardware Users Guide April 2017
OmniSwitch 6350-48
Chassis Features
Front Panel

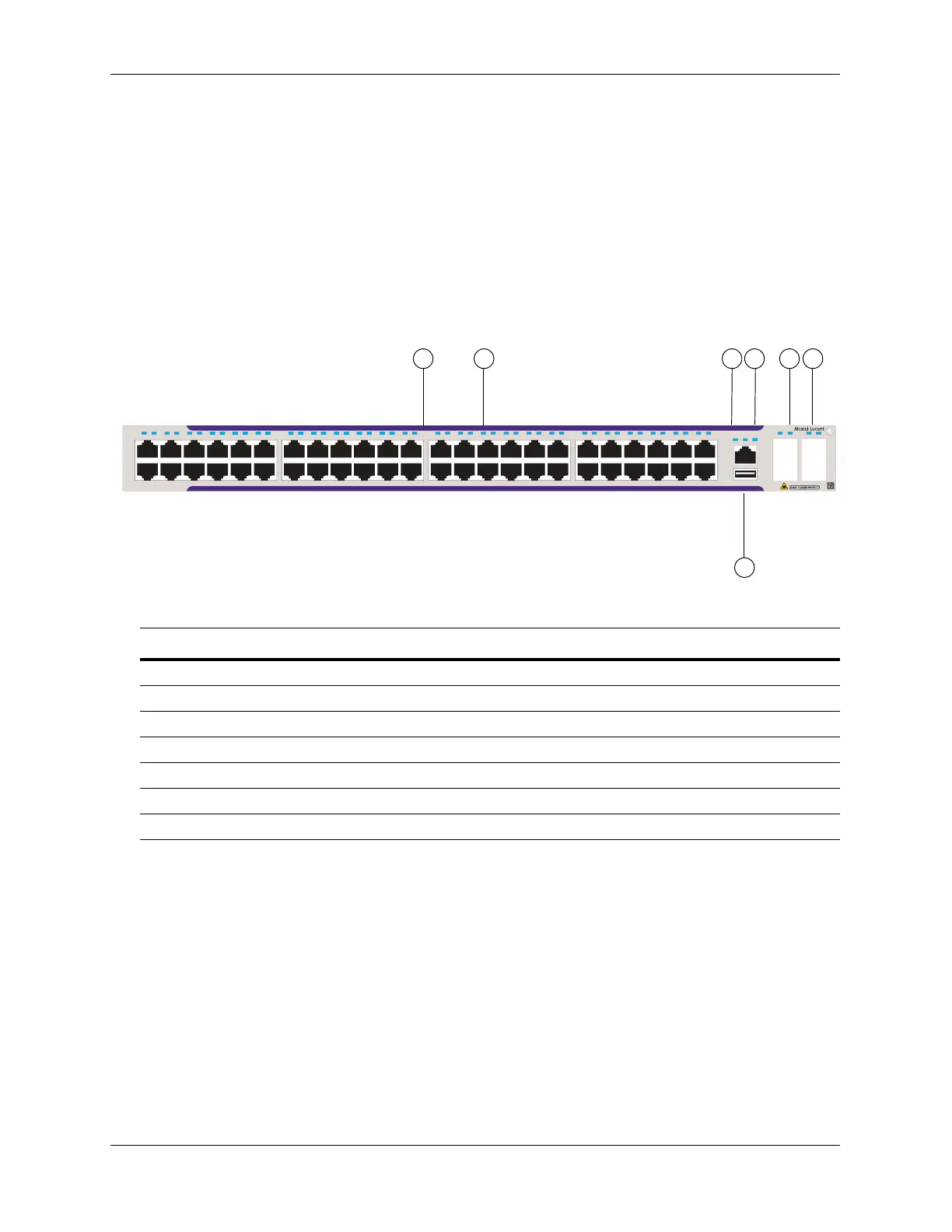

OmniSwitch 6350-48 Front Panel
Refer to “OmniSwitch 6350 LED Status” on page 3-21 for LED status information.
System status LEDs Internal AC Power Supply
(48) 10/100/1000Base-T Ports Console port (RJ-45)
(4) Non-combo SFP Ports USB port (USB 2.0)
Item Description
A
(48) 10/100/1000 BaseT Ports
B
Ethernet Port Status LEDs
C
Console Port
D
System Status LEDs
E
Four (4) Fixed SFP Ports
F
SFP Port Status LEDs
G
USB Port
PRIPWR
OK1
Console
USB
1 2 3 4 5 6 7 8 9 10 1112 1314 1516 1718 1920 2122 2324 2526 2728 2930 3132 3334 3536 3738 3940 4142 4344 4546 4748 4950 5152
OS6350-48
G
A D EB C F
