Managing OmniSwitch 6350 Stacks Roles Within the Stack
OmniSwitch 6350 Hardware Users Guide April 2017 page 7-7
Using Saved Slot Information
The saved slot number is the slot number the switch will assume following a reboot. This information is
stored in a switch’s boot.slot.cfg file; the switch reads its slot number assignment from this file at bootup
and assumes the specified slot number within the stack.
If switches in a stacked configuration have no preconfigured slot assignments, the slot number for each
switch is dynamically assigned by the system software. Slot numbers can also be manually assigned by the
user. For more information on manually assigning slot numbers, refer to “Manual Slot Number
Assignment” on page 7-22.
When a stack with preconfigured slot information is booted, it is not the lowest MAC address that
determines the primary management module. Instead, the slot information stored in each switch’s
boot.slot.cfg is read by the system software and used in determining the primary. The switch with the
lowest saved slot number becomes the primary management module.
Note. Although, for ease-of-management purposes, it is recommended that slot numbers are assigned
beginning with slot number 1, it is not a requirement. In other words, a stack of four switches can have
slot assignments 3, 4, 5, and 6. However, it is important that each element in a stack is assigned a unique
slot number. Do not assign duplicate slot numbers to elements in a stack. Otherwise, one or more switches
will be forced into pass-through mode. For more information on pass-through mode, refer to page 7-12.
For more information on using saved slot information to determine the primary switch in a stack, refer to
the diagram below:

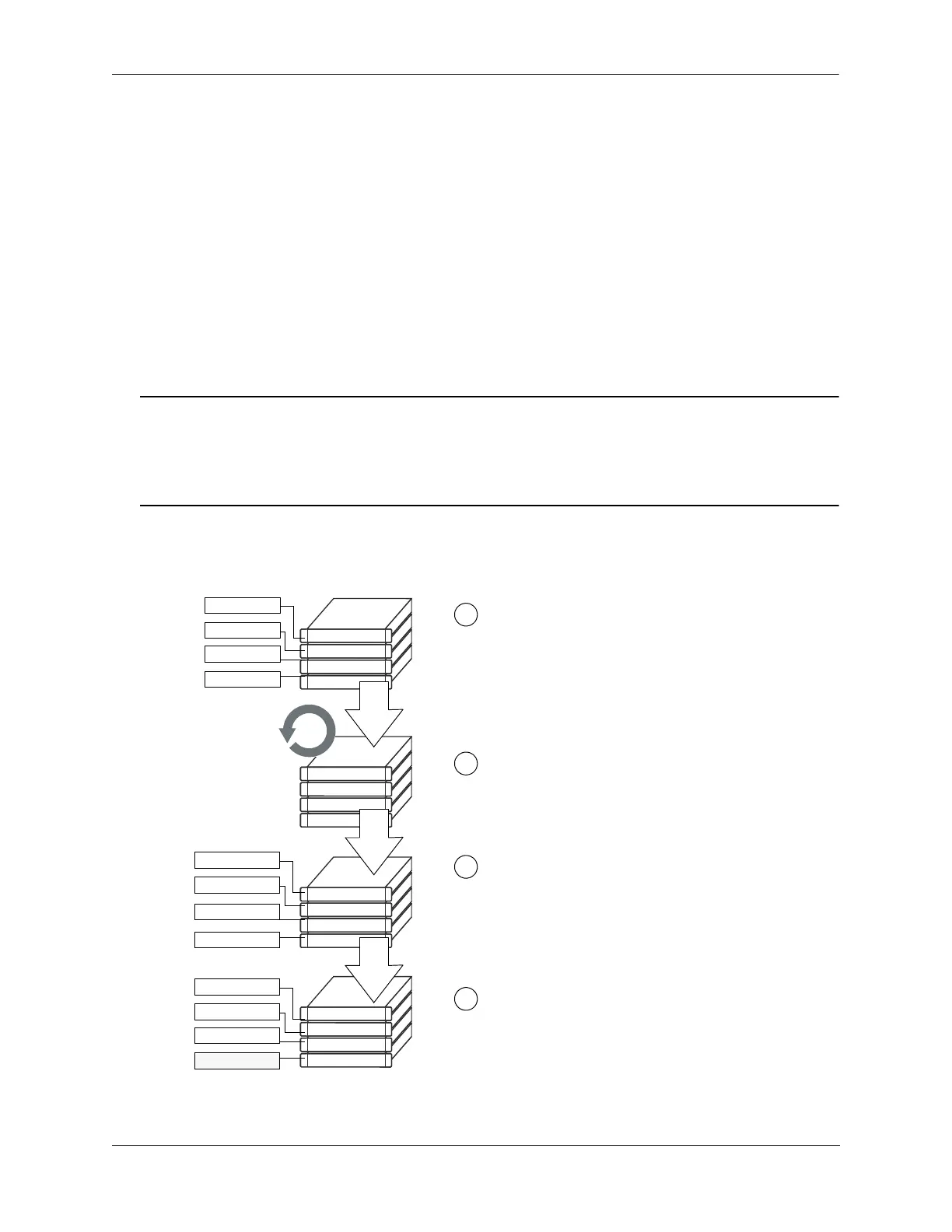

Primary Management Module Selection Using Saved Slot Information
Slot 6
Slot 5
Slot 4
Primary: Slot 3
Assumes Slot 6
Assumes Slot 5
Assumes Slot 4
Assumes Slot 3
Saved Slot 6
Four OmniSwitch 6350 switches are stacked; all
switches are connected via stacking cables. The user
configures each switch to have a unique saved slot
number. When each saved slot number is configured,
the information is automatically
written to the boot.slot.cfg file located in the /flash
directory of each switch.
The user reloads all the elements in the stack
either by issuing the reload all command or by
physically powering off and then powering on all
switches.
Instead of assigning the primary management
module based on the lowest MAC address, the
system software reads the slot information from
each switch’s boot.slot.cfg file during the boot
process. The switches in the stack come up
using their assigned slot numbers.
The switch with the lowest assigned slot number
automatically assumes the primary management role.
In this case, the switch assigned slot 3 has the lowest
slot number in the stack and becomes the primary
management module.
1
2
3
4
Saved Slot 5
Saved Slot 4
Saved Slot 3
Reload
