Rear Panel OmniSwitch 6855 Series Chassis and Hardware Components
page 2-20 OmniSwitch 6855 Series Hardware Users Guide March 2009
OS6855-U10
The rear panel of OS6855-U10 switch contains the following major components:
• Two multi-contact connectors provided for primary and redundant power supplies.
• Grounding block for type LCD8-10A-L grounding lug
Note. The figure shows a pre-production version of the chassis without product, safety, and compliance
information labels. All production versions of the chassis have these labels.

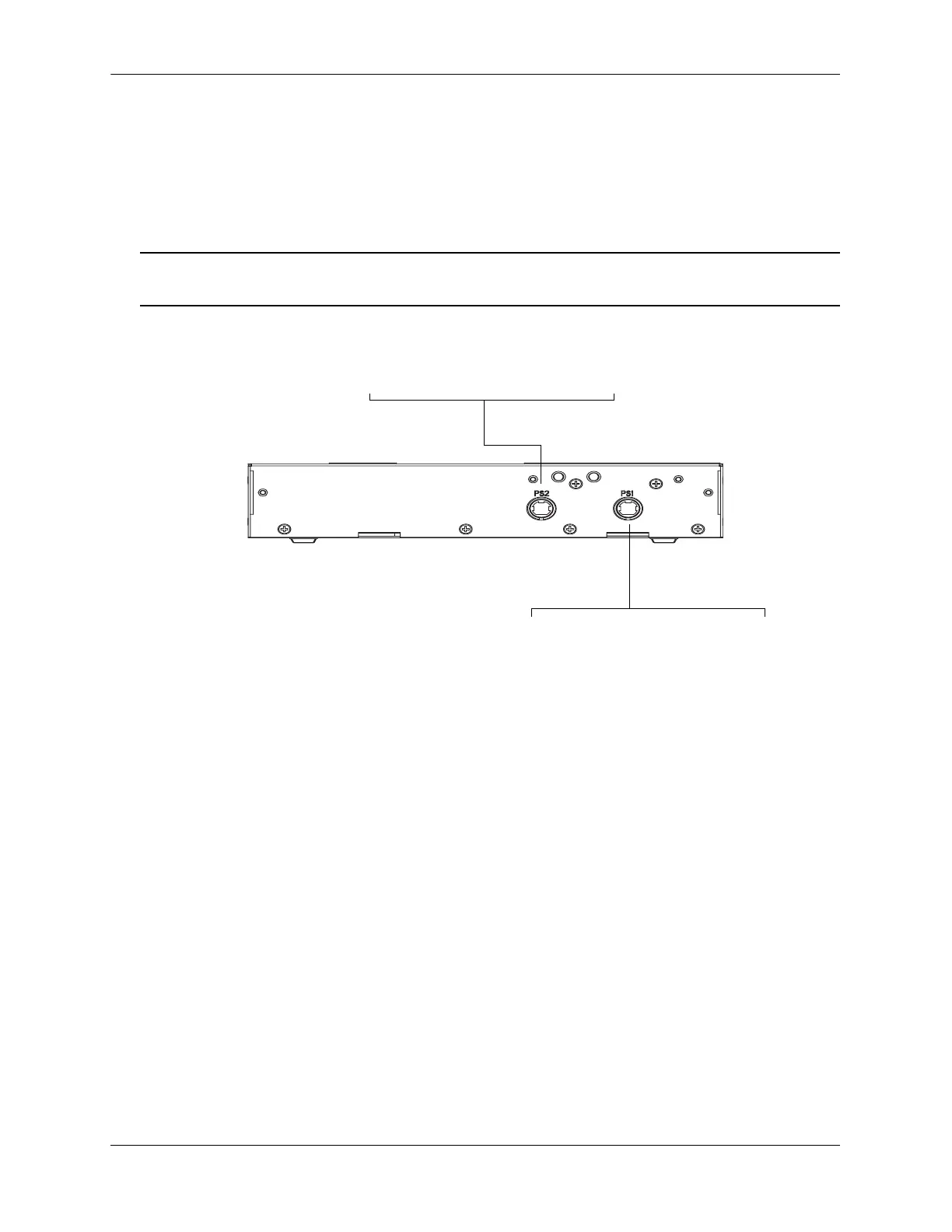

OS6855-U10 Rear Panel
Redundant Power Connector
Power connector for optional external
OS6855-U10 redundant power supply.
Primary Power Connector
Power connector for an exter-
nal
