Alcatel 4035 - Programmable Keys with Pictograms; Description of the Pictogram; Function of the Keys

Chapter 1 Presentation of the attendant set
1-4 3BA 19875 ENAA - Ed. 02 - April 2000 - Alcatel 4035 - Attendant set
1-4 Programmable keys with pictograms
1-4-1 Description of the pictogram
Each key has an associated pictogram divided into six icons which are activated according to
the status of the function or resource programmed on this key.

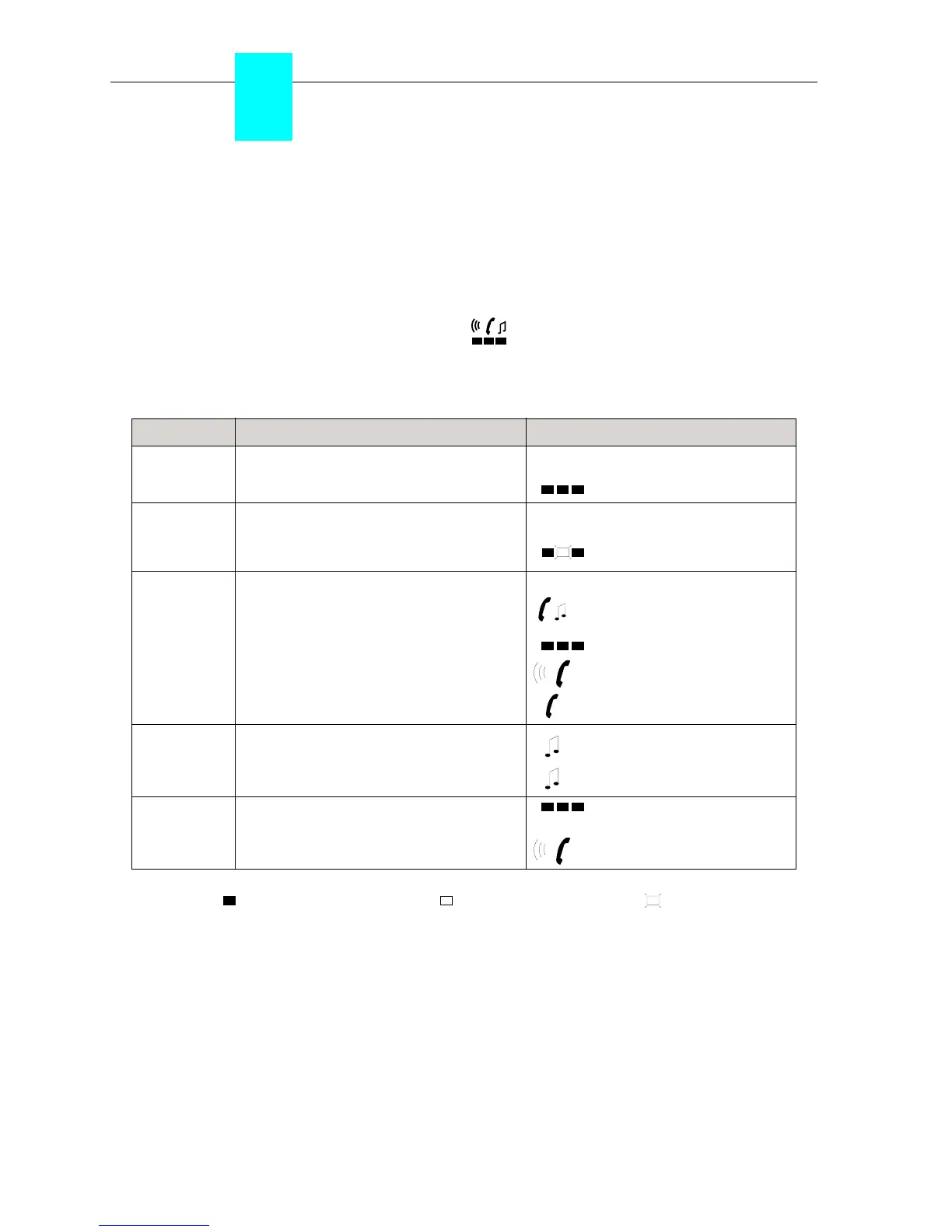

Synoptic of a fully activated pictogram:
.
1-4-2 Function of the keys
: Segment lit : Segment unlit : Segment flashing
Note: These keys cannot be programmed from the attendant set but can be assigned a fixed role by system
management (see Chapter 4 : Key facilities programmable by system management).
The following functions can be assigned to these keys:
- not assigned,
- programmable,
- individual hold,
- trunk group supervision,
Key Role Status of associated pictogram
Progammed
function
Inactive
Active
unlit
Function
needing
attendant’s
intervention
Inactive
Active
unlit
Call
supervision
Free
On hold
Call-back request
Calling
Busy
unlit
flashing
Individual
hold
Put on hold
Retrieve from hold flashing
Individual routing
Call routing
Retrieve from routing flashing
