155
SL

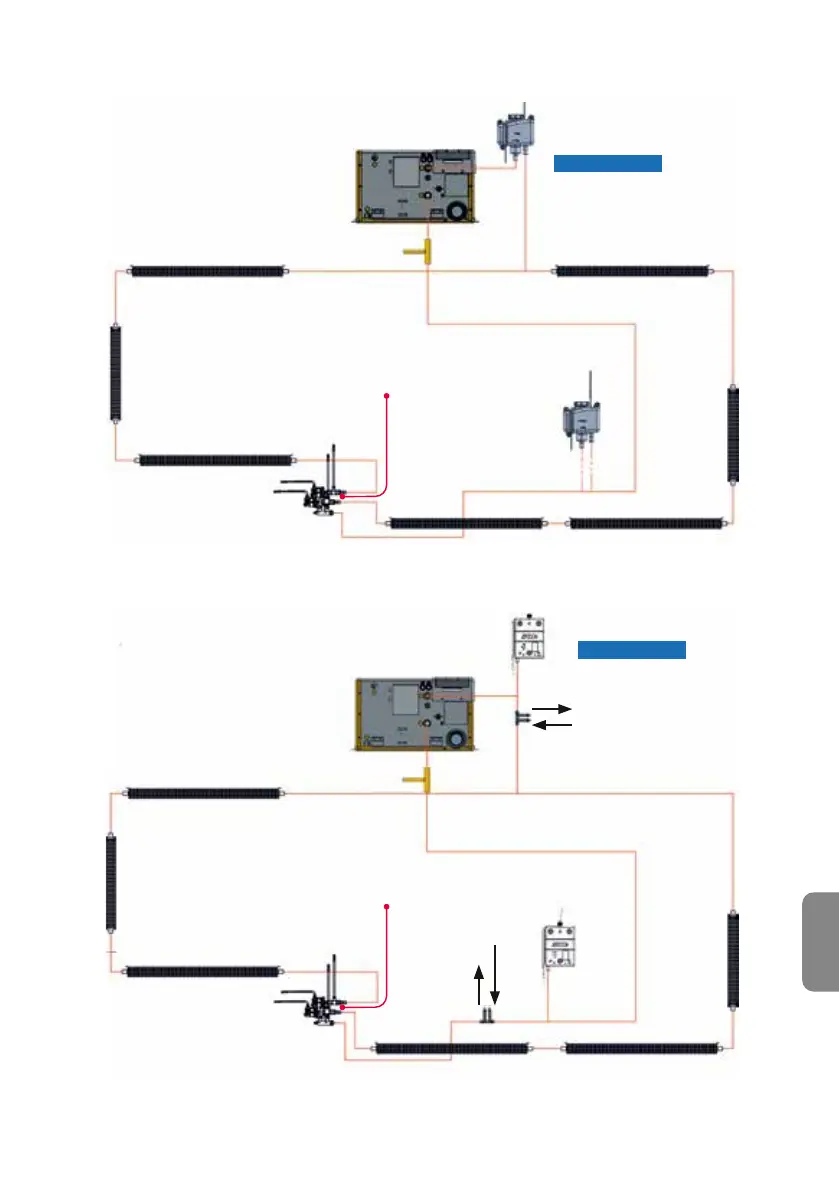

Slika 13. Dvoconski sistem s pretokom skozi ekspanzijsko posodo
Slika 14. Dvoconski sistem z dvižnim vodom do ekspanzijske posode
5.8
Alternativne lokacije za ekspanzijske posode, dvoconski sistem
Alternativna postavitev
ekspanzijskih posod
Alternativna postavitev
ekspanzijskih posod
Zrak ven
Glikol not
Zone 1
Zone 1
Zone 2
Zone 2
Odtok skozi tla
Odtok skozi tla
Nepovratni ventili
Nepovratni ventili
Zrak ven
Glikol not
Dvoconski
Dvoconski
Alternativna postavitev
ekspanzijskih posod
Ni za 3030 Plus
OBVESTILO
Alternativna postavitev
ekspanzijskih posod
Ni za 3030 Plus
OBVESTILO
154
156
