47
GB
5.13 LPG connection
Remove the protective cap from the gas pipe on the boiler
(Fig. 18).
Use 8 mm copper or steel pipes with clamp couplings to
connect LPG to the boiler gas connection. When installing
the pipes, remember that all joints and connections must be
easily accessible, and that the boiler must be removable for
service.
• The gas connection to the boiler must have an easily
• Connect the boiler to the gas bottle with a type-approved
reduction valve, with pressure of 30 mbar.
installed as closely to the reduction valve as possible.
6. Installation of Control Panel 3030112
The 3030 112 control panel (red) is intended for the Alde Compact 3030/3030 Plus boiler.
to the ceiling. Neither should it be placed on an outer wall, or near other heat-emitting objects such as
well-ventilated.
1. Make holes for the control panel according to Fig. 19, item 3). Connect the panel to the boiler
according to Fig. 20, page 49).
2. Screw the control panel securely in place, and press the front. Clamp the wiring harness securely
to avoid strain on the panel terminal block.

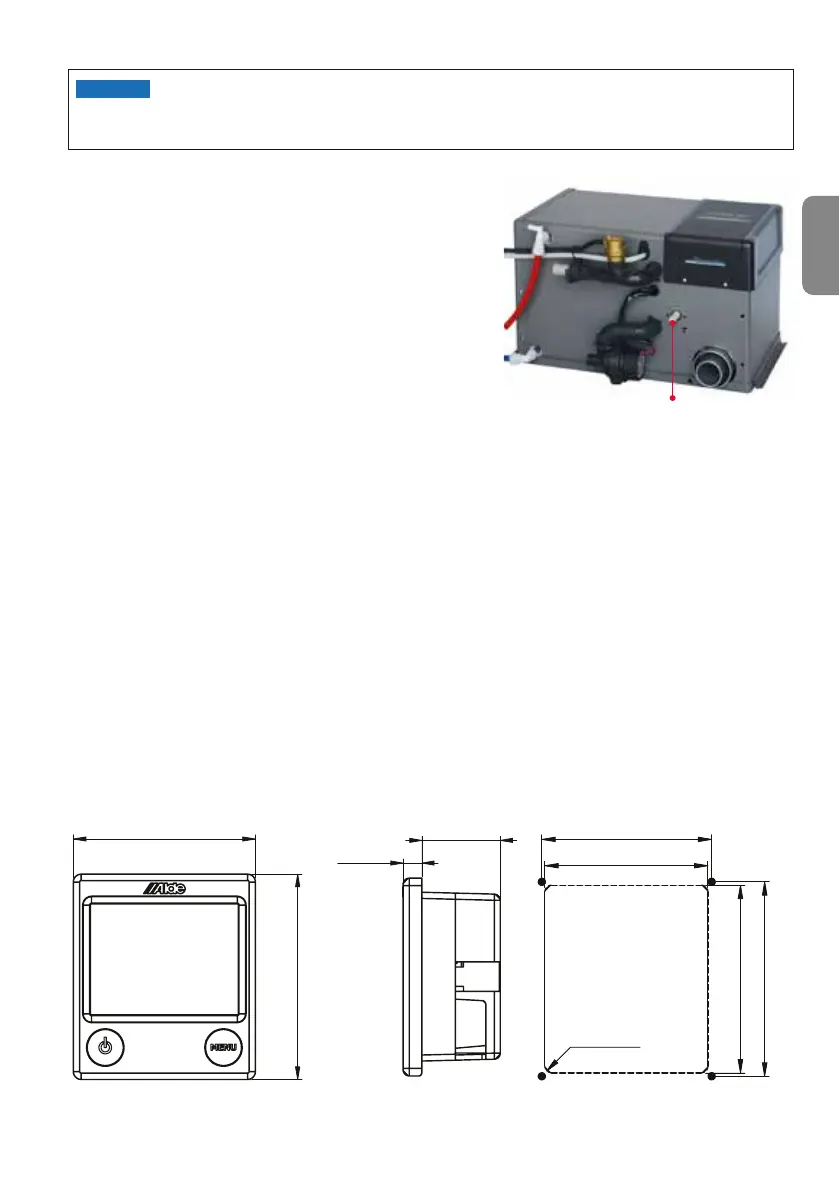

Fig. 18, LPG connection
National provisions in force must be complied with when installing the LPG system. Always perform
installation checks before using LPG, see section 12. Installation checks.
86 mm
97 mm
84 mm
73 mm
R3(4x)
76 mm
87 mm
9 mm
38,5 mm
Fig. 19, Dimensions, control panel
