Hot surfaces

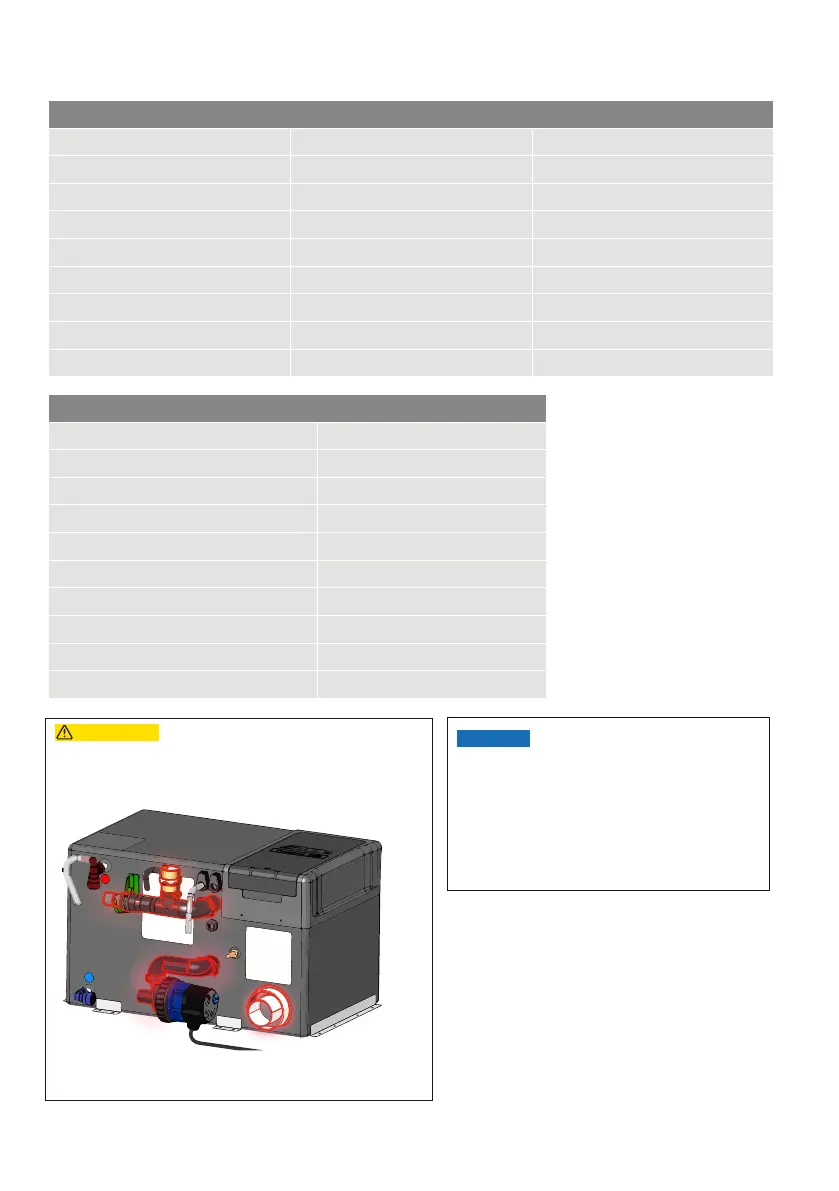

Always take care with hot surfaces marked in red,
see Fig. 1, when the system is in use.
Fig. 1, Alde Compact Boiler 3030/3030 Plus
For system construction and use
of 16 mm pipes/hoses for single pipe
system, the system must have a max.
length of 20 m and max. 10 bends
in each zone loop.
3. Technical data
Dimensions/weight/gas
Height x depth x width: 310 x 340 x 510 mm
Weight:
Gas: Propane Butane
Output 1: 3.3 kW 3.8 kW
- Consumption: 245 g/h 275 g/h
Output 2: 5.5 kW 6.4 kW
- Consumption: 405 g/h 460 g/h
Pressure: I
3+
28–30/37 mbar I
3B/P
30 mbar
Volume/pressure/temperature
Fluid volume, radiator water: 3.5 L
Fluid volume, tank hot water: 10 L
Maximum pressure radiator water: 0.05 MPa (0.5 bar)
Maximum pressure tank hot water: 0.3 MPa (3.0 bar)
Maximum system temperature 80 °c
230-240 VAC
Output element (2 or 3 kW): 1x 1050 W, 1 x 2100 W
12 V DC
Actual consumption Max. 1.9 A
Fuse 3.15 A
