Alde Compact 3030 Installation Instructions

42

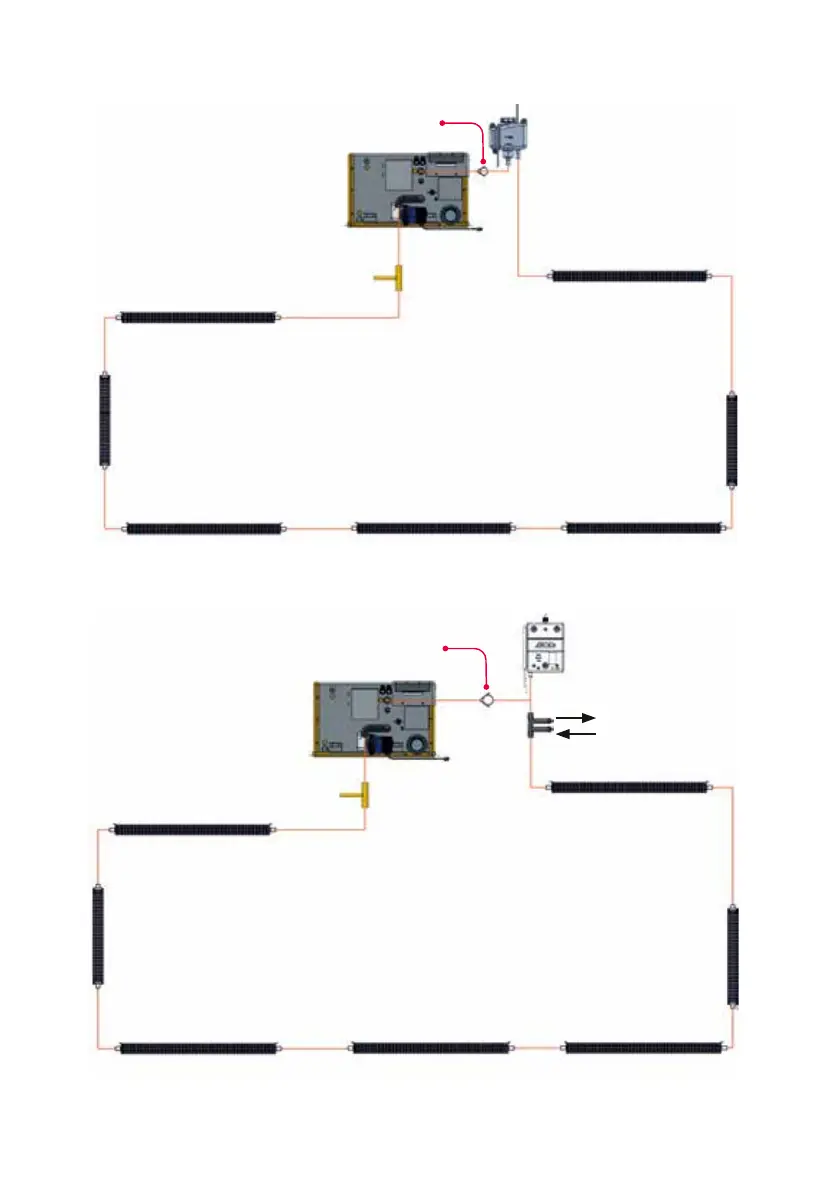

5.7 Alternative locations for expansion vessels, single-zone system
Fig. 11, Single zone system with ow through expansion tank
Fig. 12, Single zone system with riser to expansion tank
Non-return valve
Non-return valve
Alternative placement
of expansion vessels
Alternative placement
of expansion vessels
Air out
Glycol in


Single
zone
Single
zone
