5.12 Installation of safety valve/ drain valve
Only original Alde valves may be used. The safety valve / drain valve must be mounted on the hose for
incoming fresh water (Fig. 17).
1. 

2. 
15/16, item 4).
3. 
4. 
drain valve and the fresh water pump.
5. 


6. 

water.
7. 
8. For 3030 Plus: Connect the safety/drain valve to the hot water hose.
9. 

page 41). The hose must not be blocked.
The safety valve / drain valve must not be installed higher than the hose connection on the boiler.

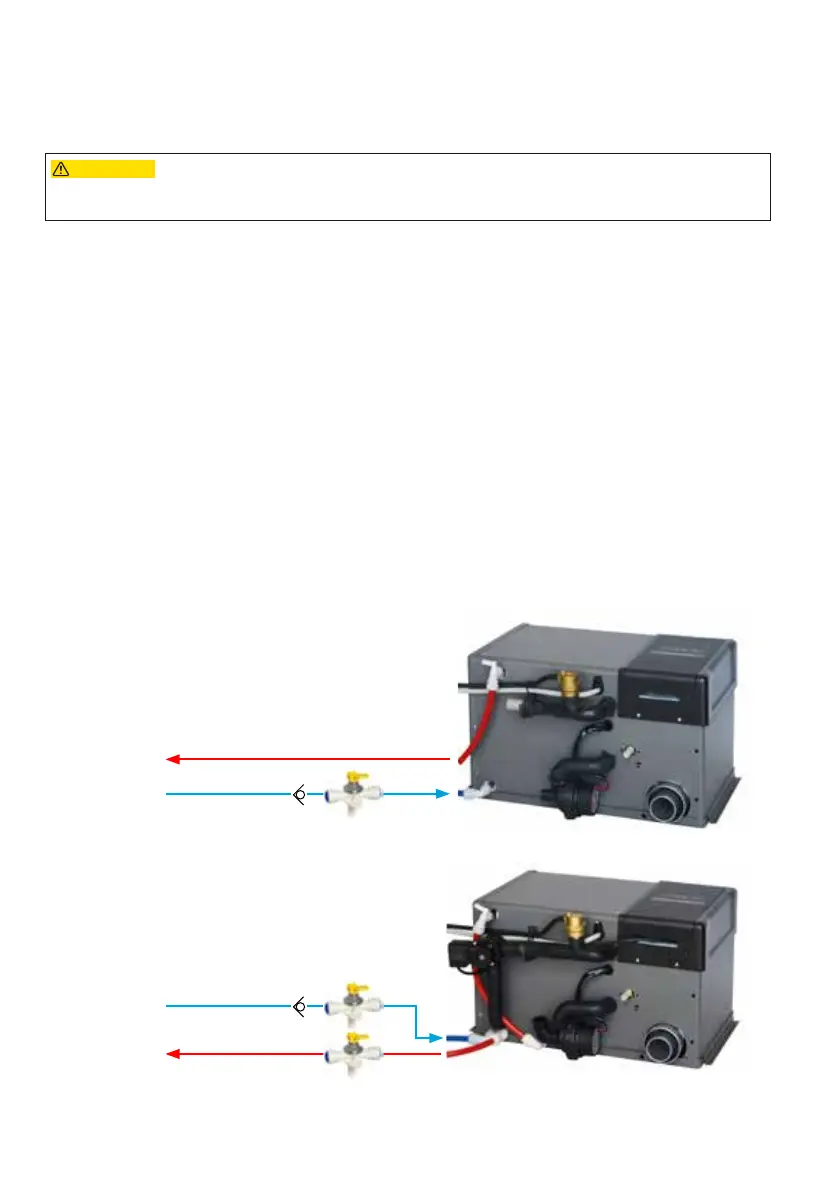

Fig. 17, Non-return valve and safety valve/ drain valve placement on the fresh water line
CAUTION
Hot water, out
Hot water, out
Freshwater, in
Alde Compact 3030
Alde Compact 3030 Plus
Freshwater, in
