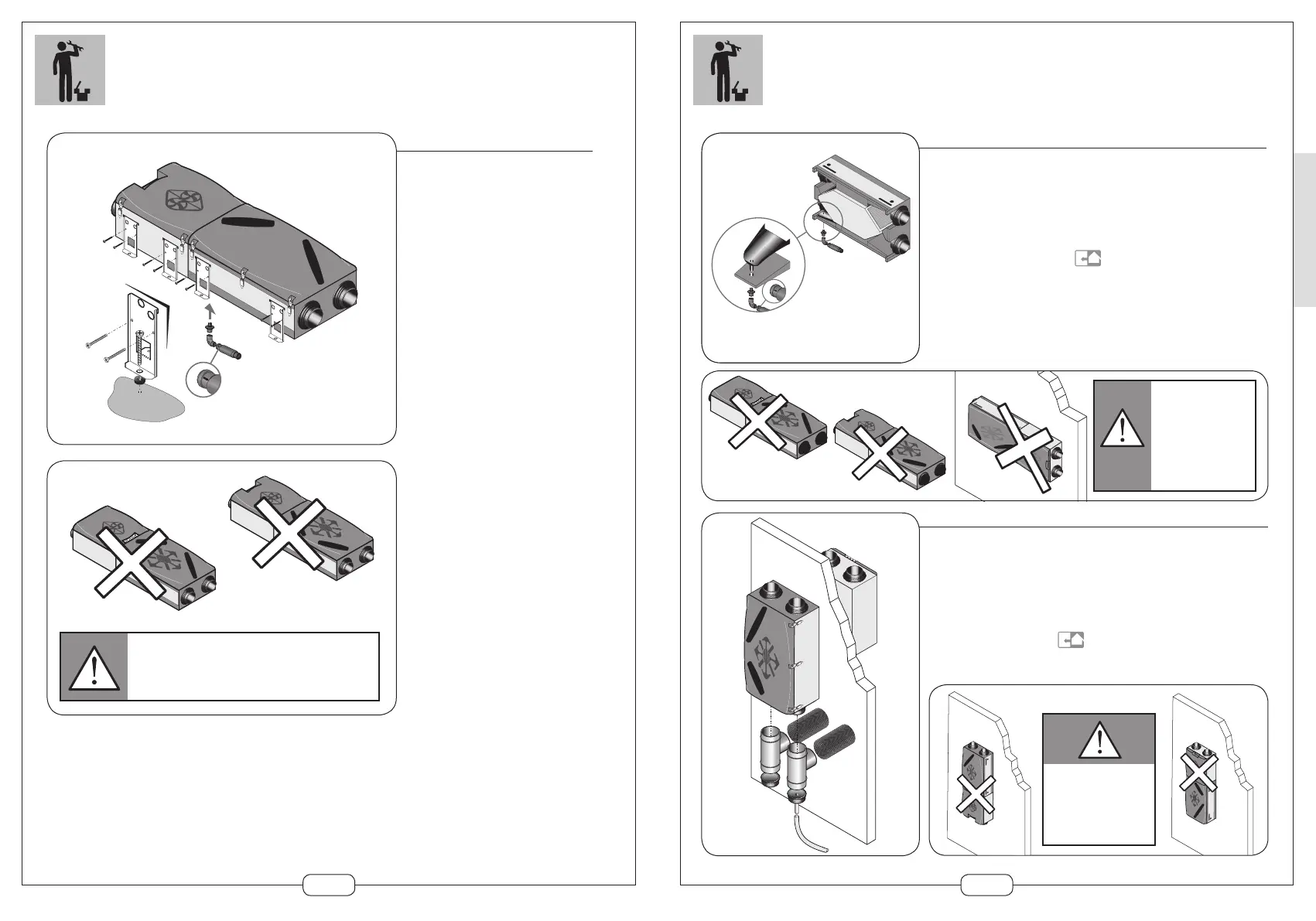

WALL MOUNTING (horizontal/vertical)
26
FLOOR MOUNTING
Floor-mounting
Compulsory option: Dee Fly floor-
mounting kit. Plan for one kit per
casing (code 11023144)
Feet mounted on each end of the
casing using screws (supplied)
Anti-vibration mounts are used
to separate the motor from the floor
to limit the transmission of noise
Screw the condensate discharge
to the heat-exchanger release
Assemble the water trap to the bend.
This water trap runs without any
water. Be carreful to the direction
(arrow)
Prohibited assemblies
Be careful that the direction of the exchanger and motor are correct!
Whether in an assembled or dissociated configuration,
the exchanger and motor must always be in the same
position to each other.
Vertical mounting of the exchanger
Compulsory option: Dee Fly floor-mounting kit.
Plan for one kit per casing (code 11023144)
Feet mounted on each end of the casing using screws (supplied)
Anti-vibration mounts are used to separate the motor from the wall to limit
the transmission of noise
To allow for the evacuation of condensates, fit a T-piece and purge plug to
the exchanger evacuation
Add the condensate evacuation kit for vertical wall mounting
(code 11129790)
Horizontal wall mounting of the heat exchanger
11023144)
the transmission of noise
delivered with the condensate evacuation kit for horizontal wall mounting
(code 11023099)
Be carreful to the direction (arrow)
Prohibited assemblies
Be careful that the direction
of the exchanger and motor
are correct! Whether in an
assembled or dissociated
configuration, the exchanger
and motor must always
be in the same position
to each other.
Prohibited assemblies
Be careful that the direction
of the exchanger and
motor are correct! The
motor must not be placed
above or below the
exchanger.
