Alesis MASTERLINK ML-9600 Reference Manual

Chapter 2
ALESIS ML-9600 REFERENCE MANUAL 5
ONCE AROUND THE ML-
9600

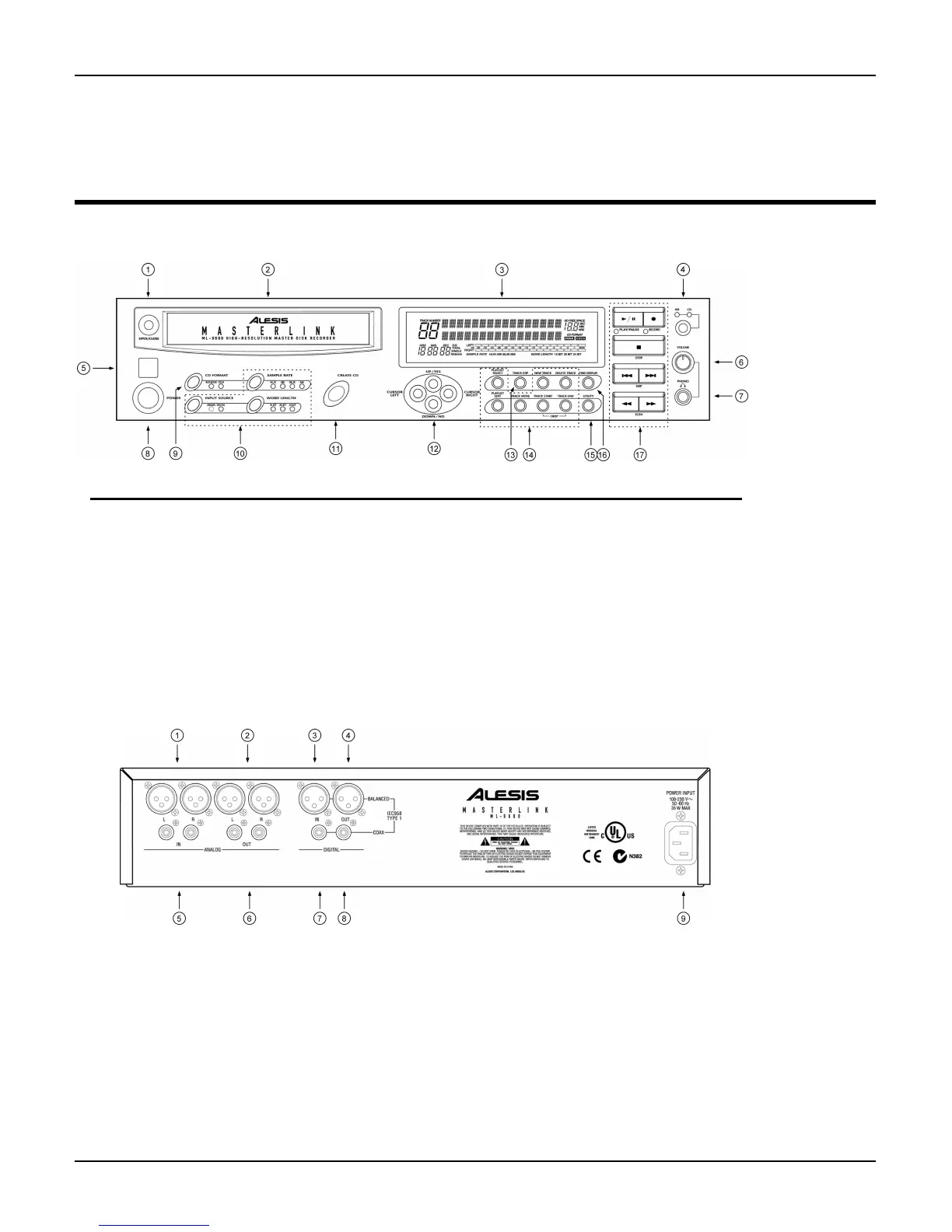

2.1 THE FRONT PANEL
Front Panel Feature Chapter Front Panel Feature Chapter
1. CD Drive Open/Close
7.1
10. HD Recording Mode Buttons
3.2
2. CD Drive Tray
7.1
11. Create CD Button
6.2
3. Vacuum Fluorescent Display
2.3
12. Cursor Buttons
4. HD/CD Mode Button
3.1
13. Track DSP Button
5
5. Infrared Remote Receiver 14. Playlist Buttons
4
6. Headphone Volume Control 15. Utility Button
8
7. Headphone ¼" Output Jack 16. Time Display Button
4.4c
8. Power Switch 17. Transport Buttons
9. CD Format Button
6.1
2.2 THE REAR PANEL
1. Analog Balanced Inputs (+4dBu nominal input, +19dBu max)
2. Analog Balanced Outputs (+4dBu nominal output, +19dBu max, 75ohm impedance)
3. Digital Balanced Input (AES/EBU)
4. Digital Balanced Output (AES/EBU)
5. Analog Unbalanced Inputs (-10dBV nominal input, +5dBV max)
6. Analog Unbalanced Outputs (-10dBV nominal output, +5dBV max, 150ohm impedance)
7. Digital Unbalanced Input (Coaxial)
8. Digital Unbalanced Output (Coaxial)
9. Universal Input Switching Power Supply (100-230Vac)

Alesis MASTERLINK ML-9600 Specifications

Audio Specifications

ADC	24-bit 128X oversampling
DAC	24-bit 128X oversampling
Sample rates supported	44.1kHz, 48kHz, 88.2kHz, 96kHz
Word lengths supported	16-, 20-, and 24-bit

Analog I/O

Frequency response at 44.1kHz/48kHz	20Hz – 20kHz +0dB, -0.3dB
THD+N at 44.1kHz/48kHz	<0.002% @1kHz, -1dBFS
Signal-to-noise ratio at 44.1kHz/48kHz	113dB, A-weighted

Digital I/O

Supported protocols type I	IEC 958
Supported protocols balanced	AES/EBU
Supported protocols coaxial	Coaxial

Weight and Dimensions

Height	3.5"/2U
Width	17"
Depth	11"
