Alesis MASTERLINK ML-9600 Reference Manual

Chapter 8
42 ALESIS ML-9600 REFERENCE MANUAL
into the currently selected playlist. It is important, therefore, to make sure that you have selected the
appropriate playlist before switching to CD mode.
After switching to CD mode (via the HD/CD button), pressing the TRACK MOVE button will bring
up the CD track move page, as shown in Figure 7.2.1.
To copy an entire CD to the currently selected playlist, press the CURSOR LEFT button until the
cursor is under the "CDTrk" field, then press the UP/YES button, which will bring up the display
shown in Figure 7.3.1.

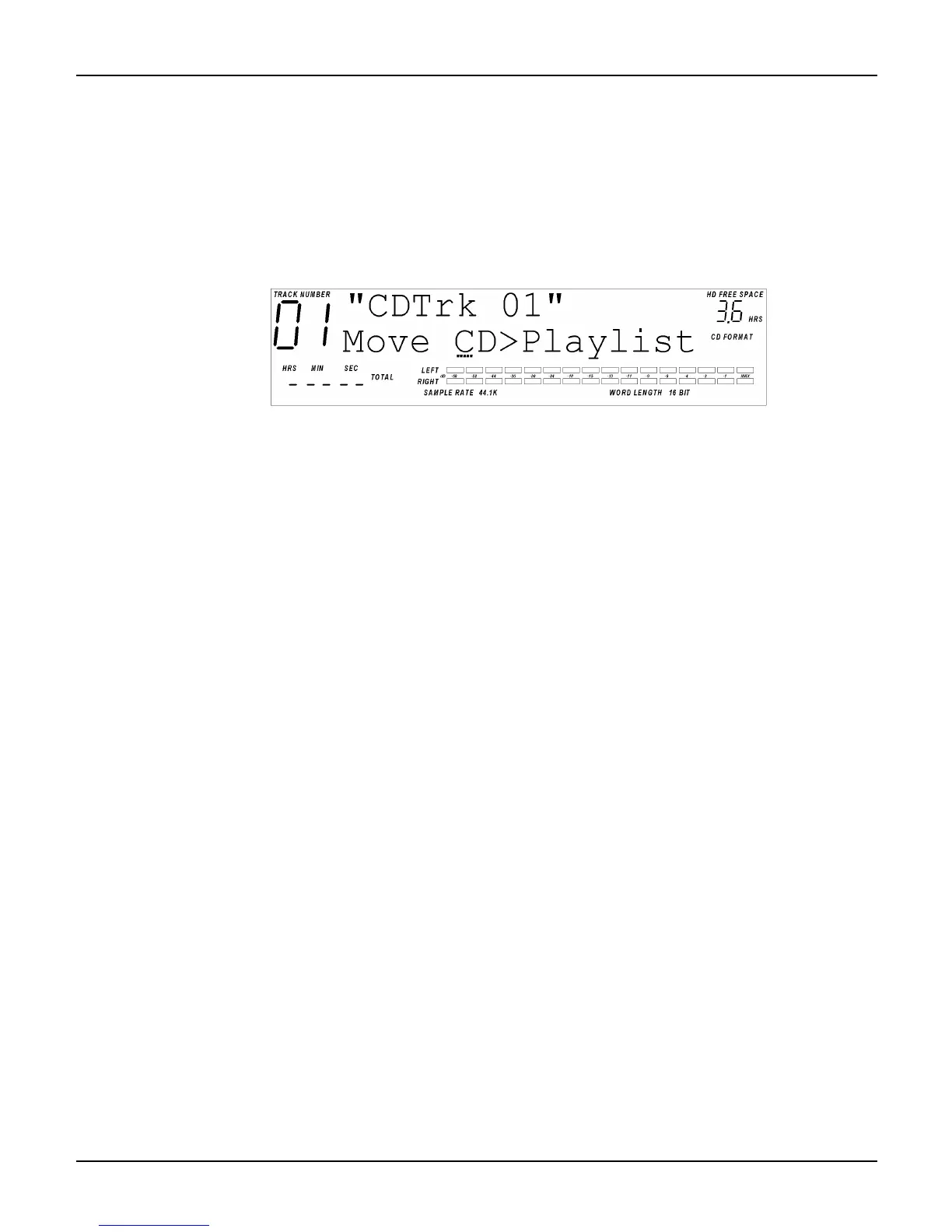

Figure 7.3.1
Move CD to Playlist Page
Pressing TRACK MOVE again will prompt you with an "Are you sure? Y/N" message. Pressing
DOWN/NO at that point will cancel the CD Move operation. Pressing UP/YES at the prompt will
confirm the CD Move and will begin the process.
If the destination Playlist already has one or more Tracks in it, the display will prompt "PList not
empty. Proceed?" Pressing DOWN/NO will cancel the CD move operation. Pressing UP/YES will
begin to copy the entire CD into the destination playlist, with the first CD track placed after the last
Track in the playlist.

Alesis MASTERLINK ML-9600 Specifications

Audio Specifications

ADC	24-bit 128X oversampling
DAC	24-bit 128X oversampling
Sample rates supported	44.1kHz, 48kHz, 88.2kHz, 96kHz
Word lengths supported	16-, 20-, and 24-bit

Analog I/O

Frequency response at 44.1kHz/48kHz	20Hz – 20kHz +0dB, -0.3dB
THD+N at 44.1kHz/48kHz	<0.002% @1kHz, -1dBFS
Signal-to-noise ratio at 44.1kHz/48kHz	113dB, A-weighted

Digital I/O

Supported protocols type I	IEC 958
Supported protocols balanced	AES/EBU
Supported protocols coaxial	Coaxial

Weight and Dimensions

Height	3.5"/2U
Width	17"
Depth	11"
