Identification and safety signs on the machine 3 Mechanical function
20

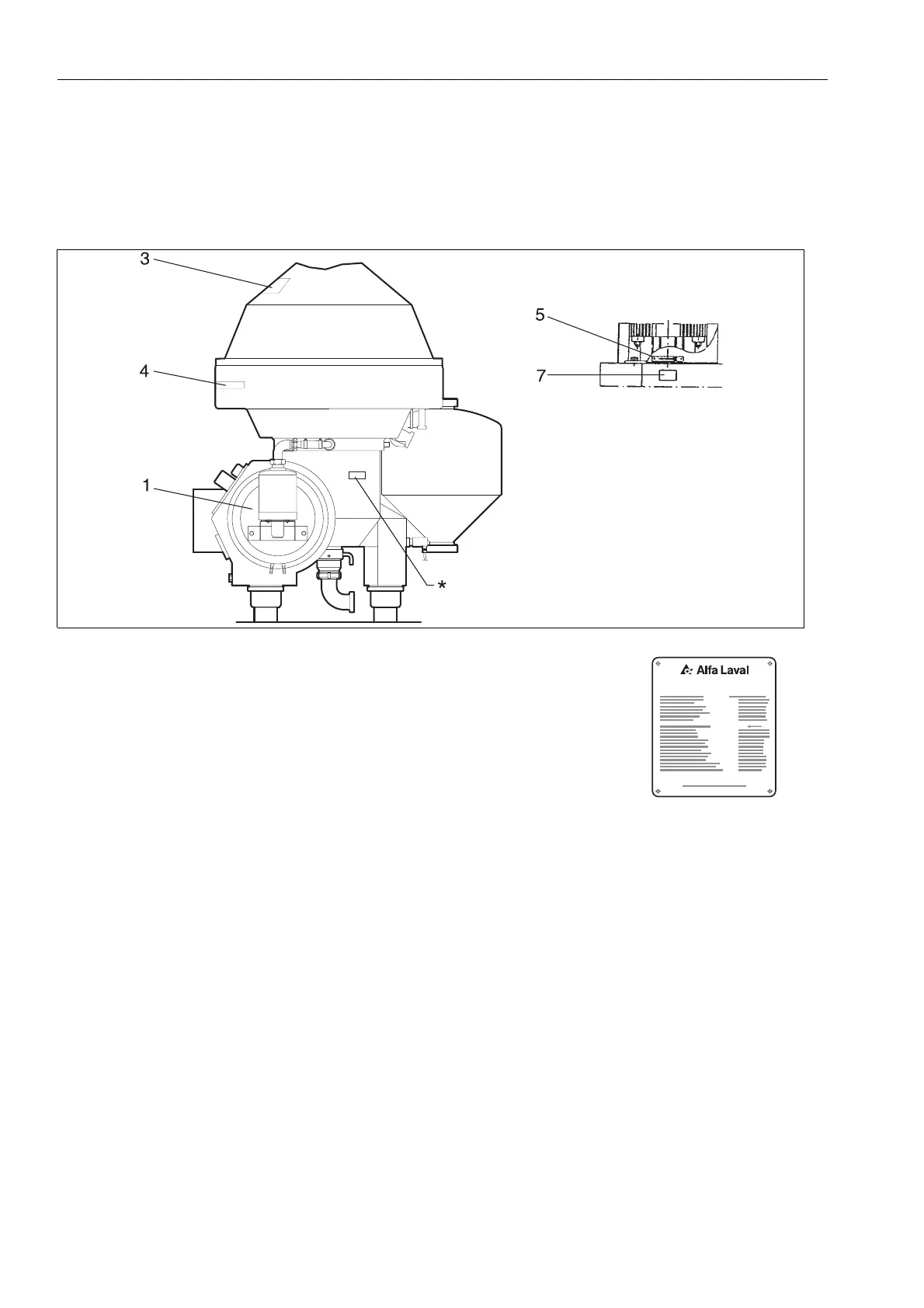

3.1 Identification and
safety signs on the
machine
1. Machine plate Text on plate (example):
Separator A MRPX 614HGV-14C
Manufacturing serial No / Year XXXX
Product No 881208-01-01
Machine top part 552032-02
Outlet 562013-02
Bowl 546860-12
Machine bottom part 553136-41
Max. speed (bowl) 4265 r/min (50 Hz)
Direction of rotation (bowl) ←
Speed motor shaft 1500 r/min (50 Hz)
El. current frequency 50 Hz / 60 Hz
Recommended motor power 18,5 kW
Max. density of feed 1100 kg/m
3
Max. density of sediment 1380 kg/m
3
Max. density of operating liquid 1000 kg/m
3
Process temperature min./max. 0 - 100 °C
G0663751
S0061411
