5.1 Preparations 5 Installation and first start
42
5.1 Preparations
1. Set up the machine (without the bowl)
according to the installation instructions.
2. Flush the piping thoroughly to remove any
residues such as chips, welding beads, etc.
3. Check the operating water functions and
operating water flow as below.

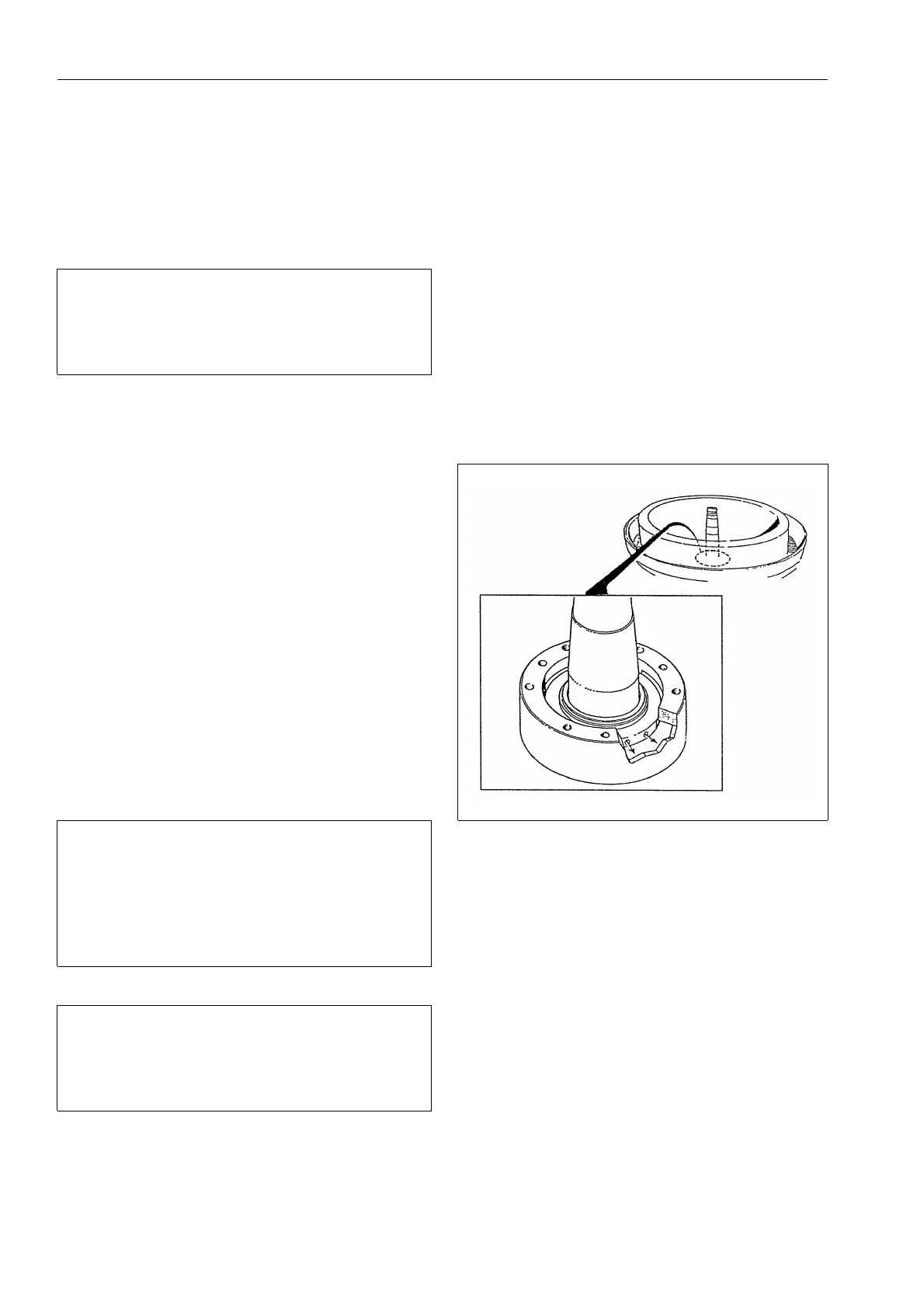

Checking the operating water flow.
When operating water is fed (375*) water shall
squirt out of the holes in weak jets.
During operation there will be no consumption of
water when the pressure is lower than 50 kPa
(0,5 bar).
At discharge water shall squirt out of the holes in
powerful jets.
4. Check that the water flow-rates correspond to
data in “Connection list” in
Installation
Manual
:
− Water for lubrication oil cooler 409*.
− Water for discharge 375*.
− Water for cooling frame parts 405* and
406*.
*) Numbers refer to “Connection list” in
Installation Manual
.
NOTE
All piping must be disconnected from the
separator.
NOTE
Pressure in connection 405* and 406* must
not be higher than 50 kPa. Risk for
deformation of frame hood and contact with
rotating part.
NOTE
Outlet 406* and 464* must be open. No
restrictions allowed.
G0665911
